PS3300FE-2M Full-Electric Pallet Stacker, 3300 lbs Capacity, 78" Lifting Height with Fixed Straddle Legs
PS3300FE-2M Full-Electric Pallet Stacker, 3300 lbs Capacity, 78" Lifting Height with Fixed Straddle Legs
Couldn't load pickup availability
- Fast and Free Freight Shipping to 48 lower states
- Deliver in 3-8 business days
- 2 year warranty
Introducing the SUNMAX PS3300FE-2M Full-Electric Pallet Stacker, the ideal solution for efficient and safe material handling in various industrial settings.Β

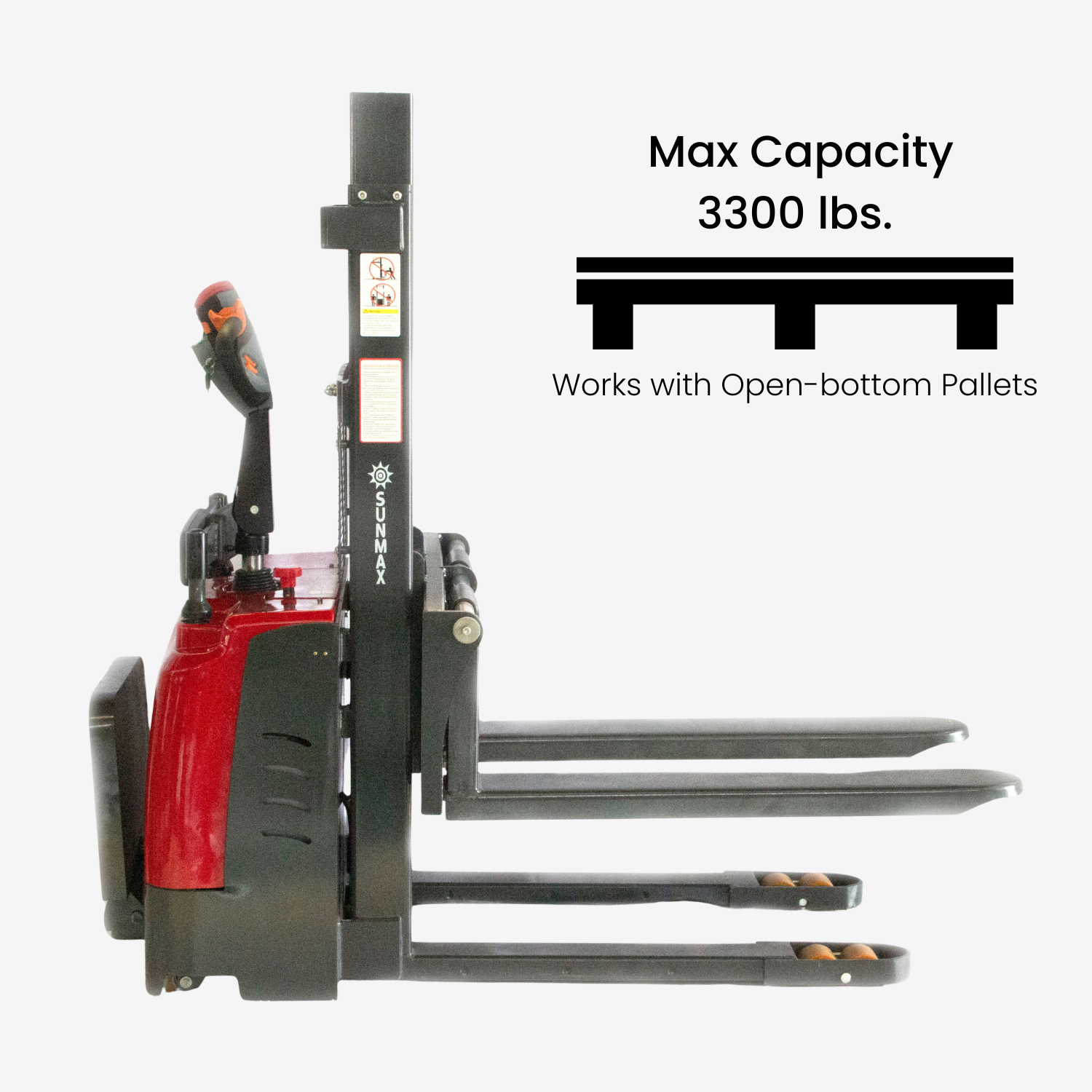

Please be noted the straddle legs are fixed for stability, so it is only suitable for open-bottom pallets.

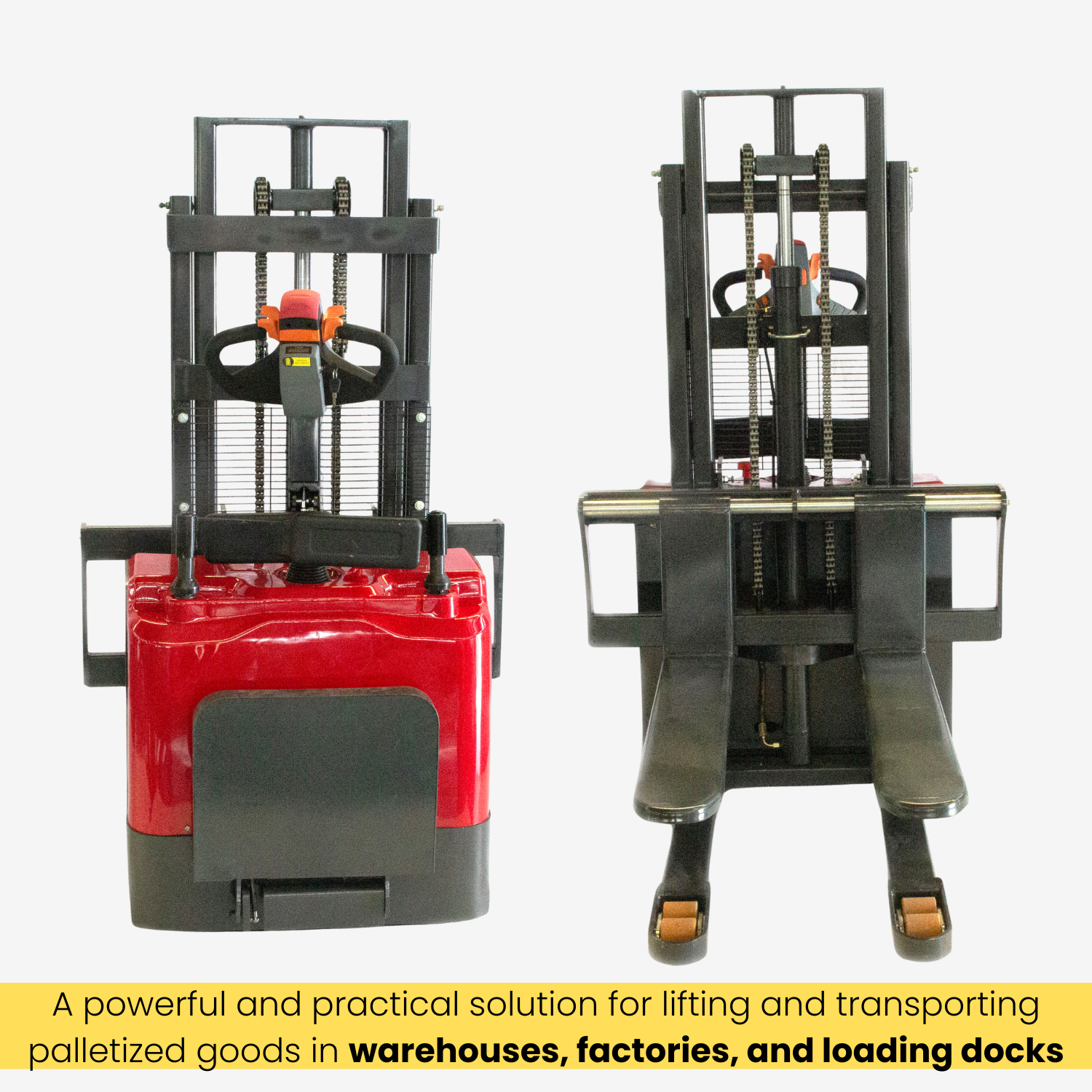

The SUNMAX 78" Electric Pallet Stacker is a powerful and practical solution for lifting and transporting palletized goods in warehouses, factories, and loading docks. With a 3,300 lbs load capacity and a 78" (2000 mm) lifting height, this model is ideal for medium-duty material handling tasks.Β ItsΒ compact frame and electromagnetic brake system ensure both maneuverability and safety in tight warehouse environments.

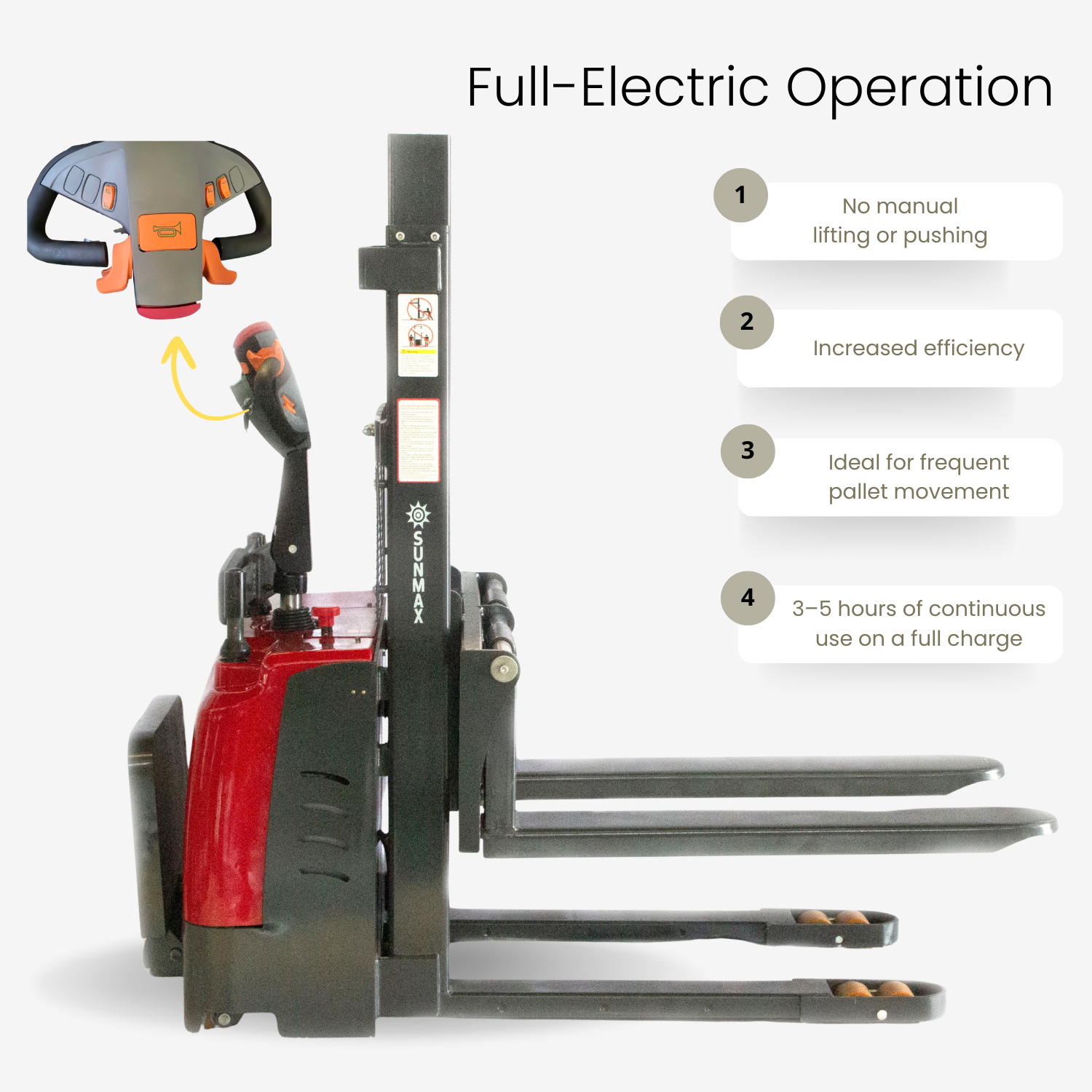

Full-Electric design ensures electric lifting and electric movement for complete operator ease.
Key Features
-
High Load Capacity:
- 3300 lbs (1.5 ton, 1500 kg) Capacity: Handles heavy loads with ease, ensuring efficient material handling and improved productivity.
-
Efficient Hydraulic System:
- 78" (2000 mm) Max Lifting Height, 3.15" (80mm) Lowest Height, allows for easy stacking and retrieving of goods, making it suitable for various industrial applications.
-
Durable and Reliable:
- Polyurethane Wheels: Provides excellent durability and smooth operation on flat surfaces, reducing wear and tear on the machine.
-
User-Friendly Design:
- Ergonomic Control Handle: Simplifies operation with intuitive controls for lifting, lowering, and moving, enhancing operator comfort and safety.
-
Enhanced Safety Features:
- Electromagnetic Braking and Safety Lock: Ensures secure handling and parking, preventing accidental movement and enhancing overall safety during use.
Technical Specifications
- Rated Load Capacity: 3,300 lbs (1.5 ton/1500 kg)
- Max Lifting Height: 78.7" (6.5 ft/2000 mm)
- Lowest Fork Height: 3.15" (80 mm)
- Ground Clearance (wheelbase center) 1.18" (30 mm)
- Load Center Distance: 21.65" (550 mm)
- Turning Radius: 64.96" (1650 mm)

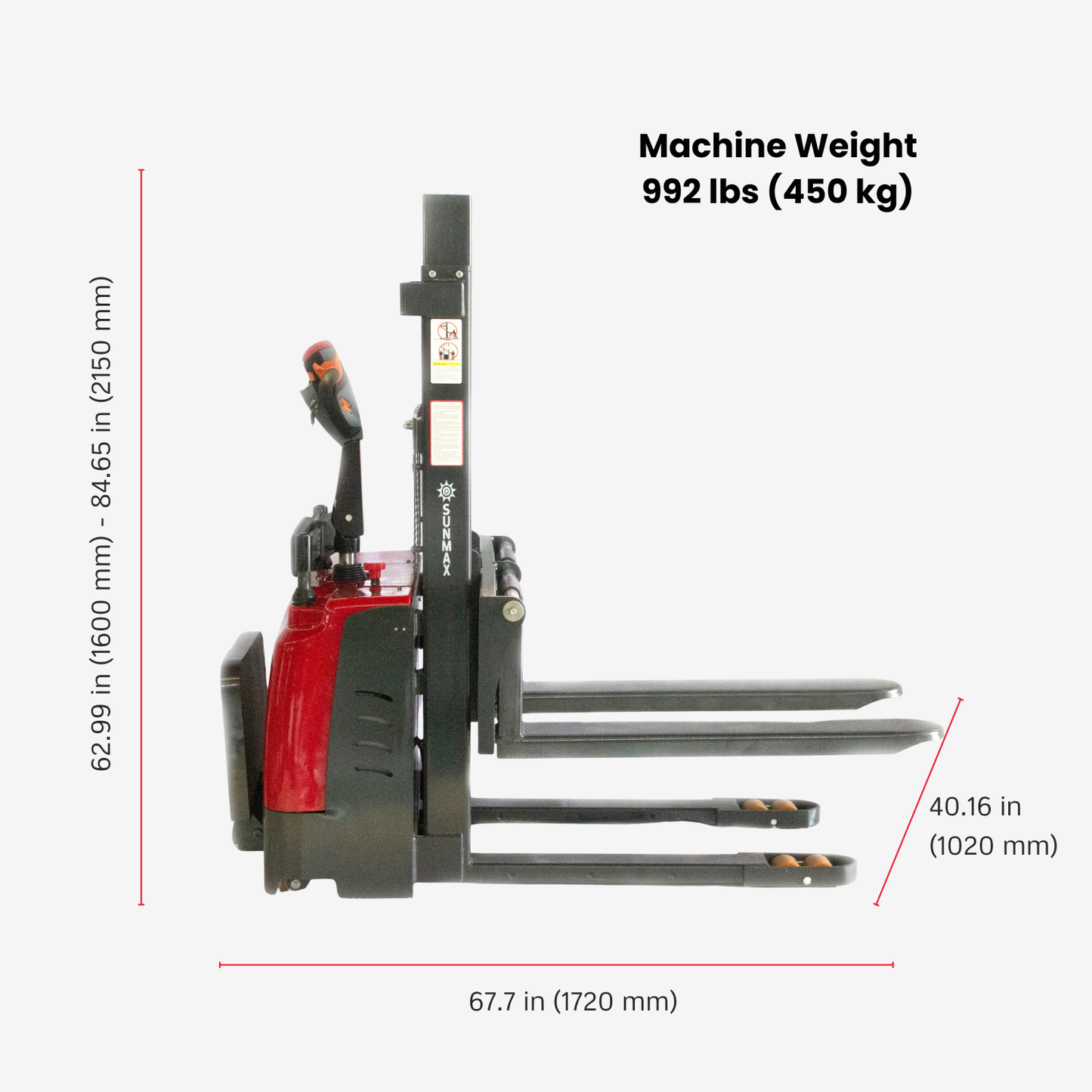

- Net Weight with battery: 992 lbs (450 kg)

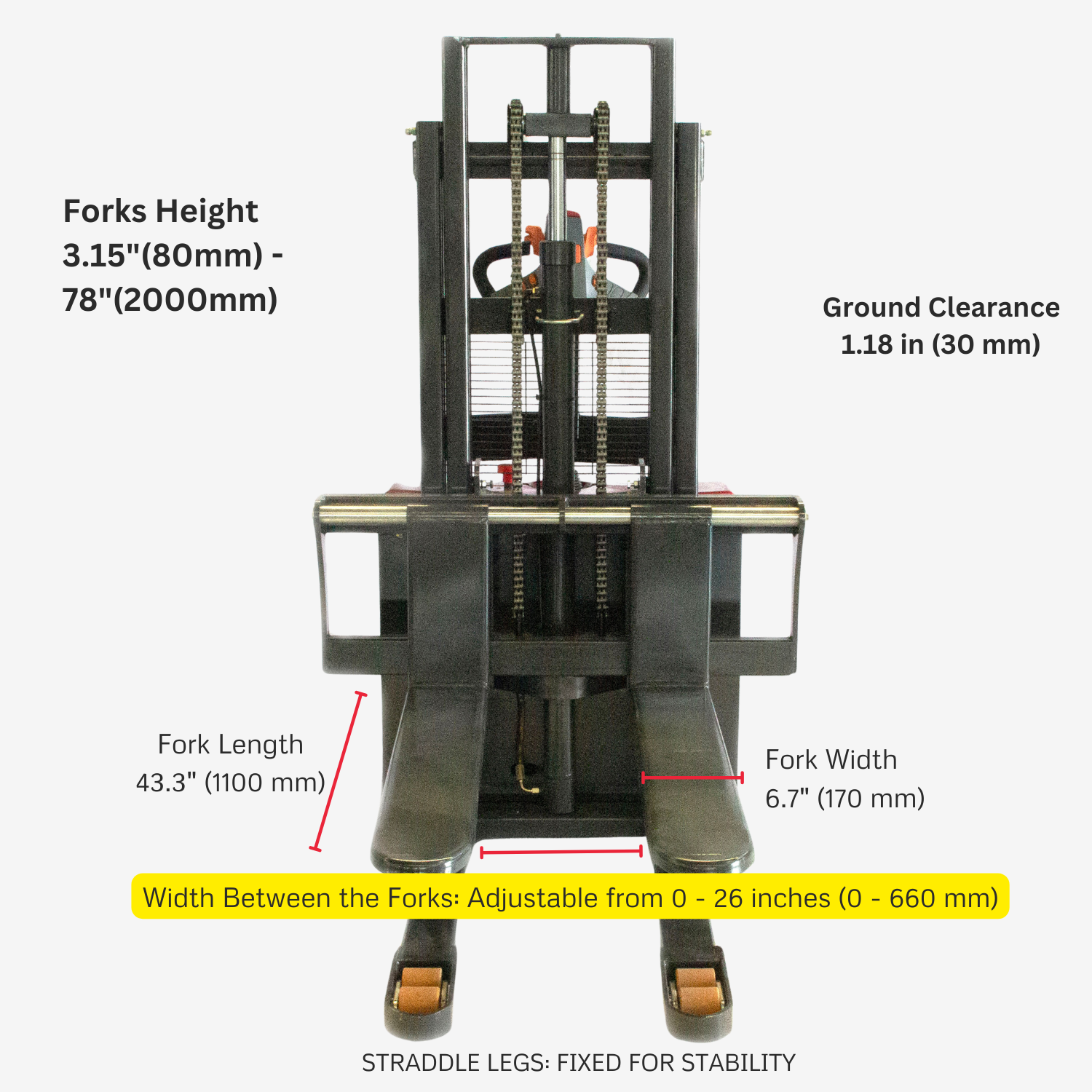

- Machine Dimensions: 67.7"*40.16"*62.99"/84.65"(1720*1020*1600/2150 mm)
- Fork Dimensions(L*W*Thickness): 43.3"*6.7"*2.36" (1100 Γ 170 Γ 60 mm) Each
- Distance between the 2 Forks (Adjustable): 0-26" (0-660 mm)
- Wheel Material: Polyurethane

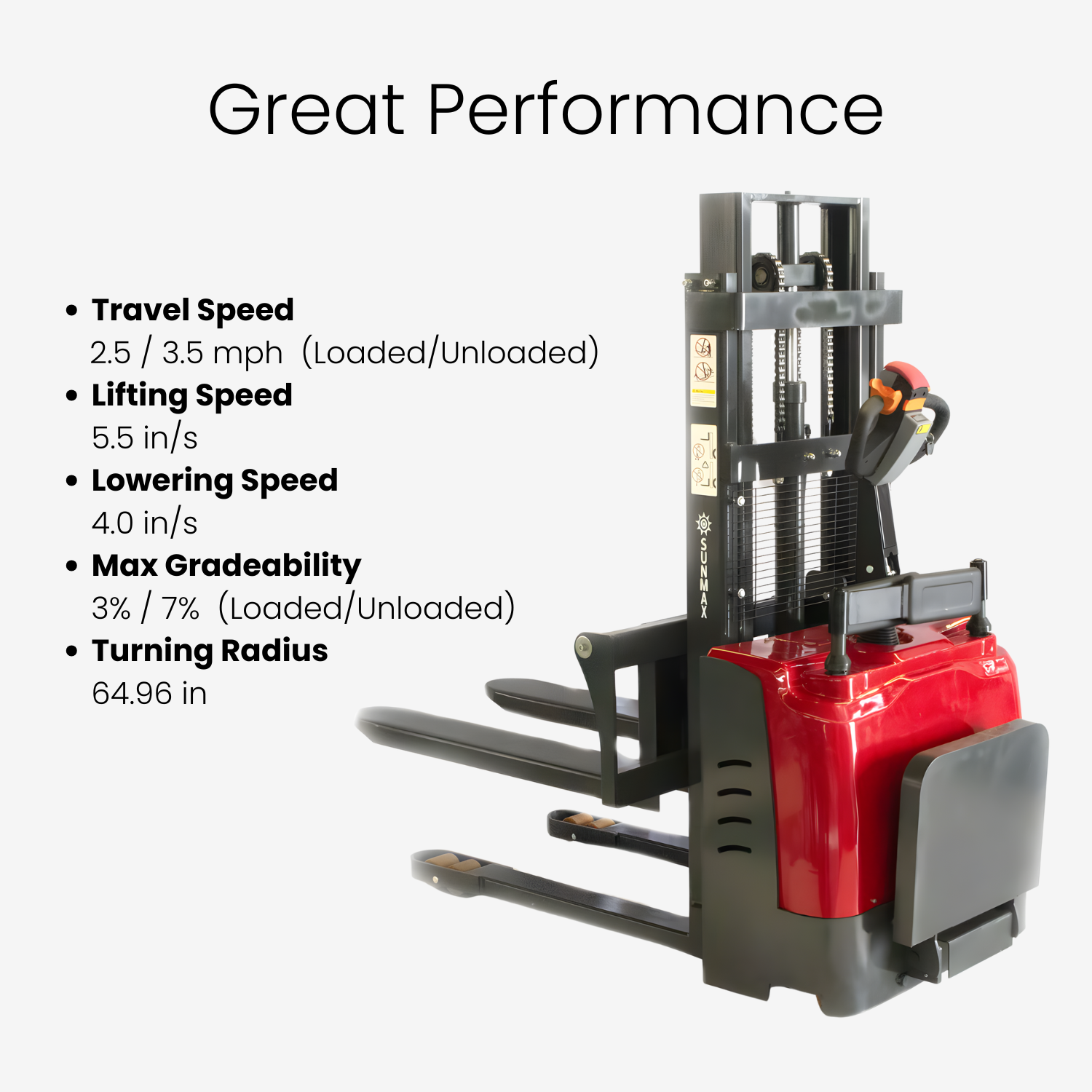

- Travel Speed (Loaded/Unloaded): 2.5/3.5 mph (4/5.6 km/h)
- Lift Speed (Loaded/Unloaded): 5.5"/s (140 mm/s)
- Lowering Speed (Loaded/Unloaded): 4.0"/s (101 mm/s)
- Max Gradability (Loaded/Unloaded): 3% / 7%
- Drive Motor: 0.8 kW
- Lift Motor: 2.2 kW
- Noise Level β€70 dB(A)
- Battery Capacity: 12V/100Ah
- Charger: 12V/10A
- Charging Time: 8-10 hours
- Continuous Running Time: 3-5 hours under normal operation
βοΈReal-world factors that reduce runtime:
- Frequent lifting of heavy loads
- Rough floor surfaces
- Cold warehouse environments
- Poor battery maintenance
