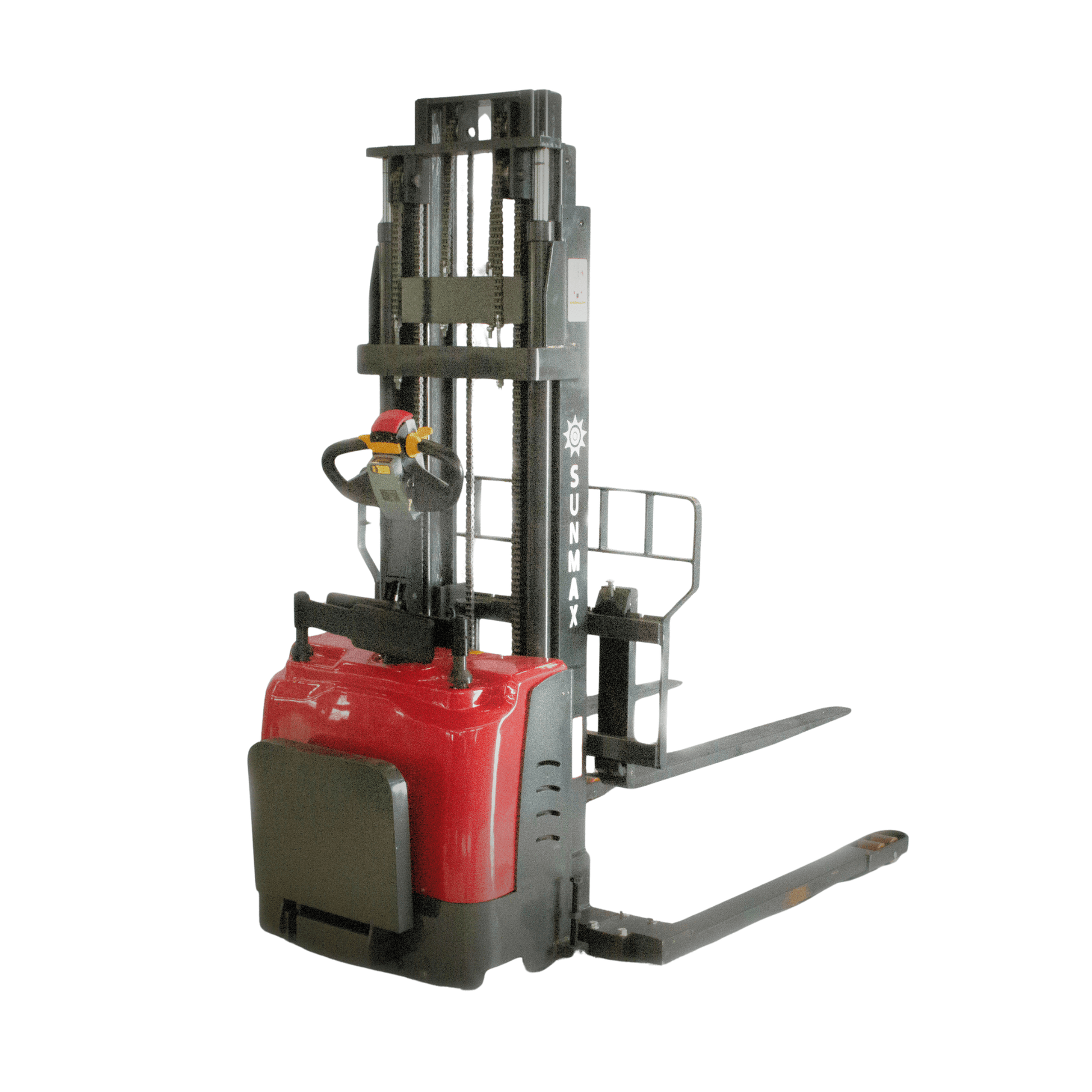

PS3300FE-4M Full Electric Pallet Stacker – 3300 lbs Capacity, 157" Lift Height, Adjustable Legs
PS3300FE-4M Full Electric Pallet Stacker – 3300 lbs Capacity, 157" Lift Height, Adjustable Legs
Couldn't load pickup availability
- Free shipping to 48 contiguous states.
- Deliver in 3-8 business days
- 2-year manufacturer warranty

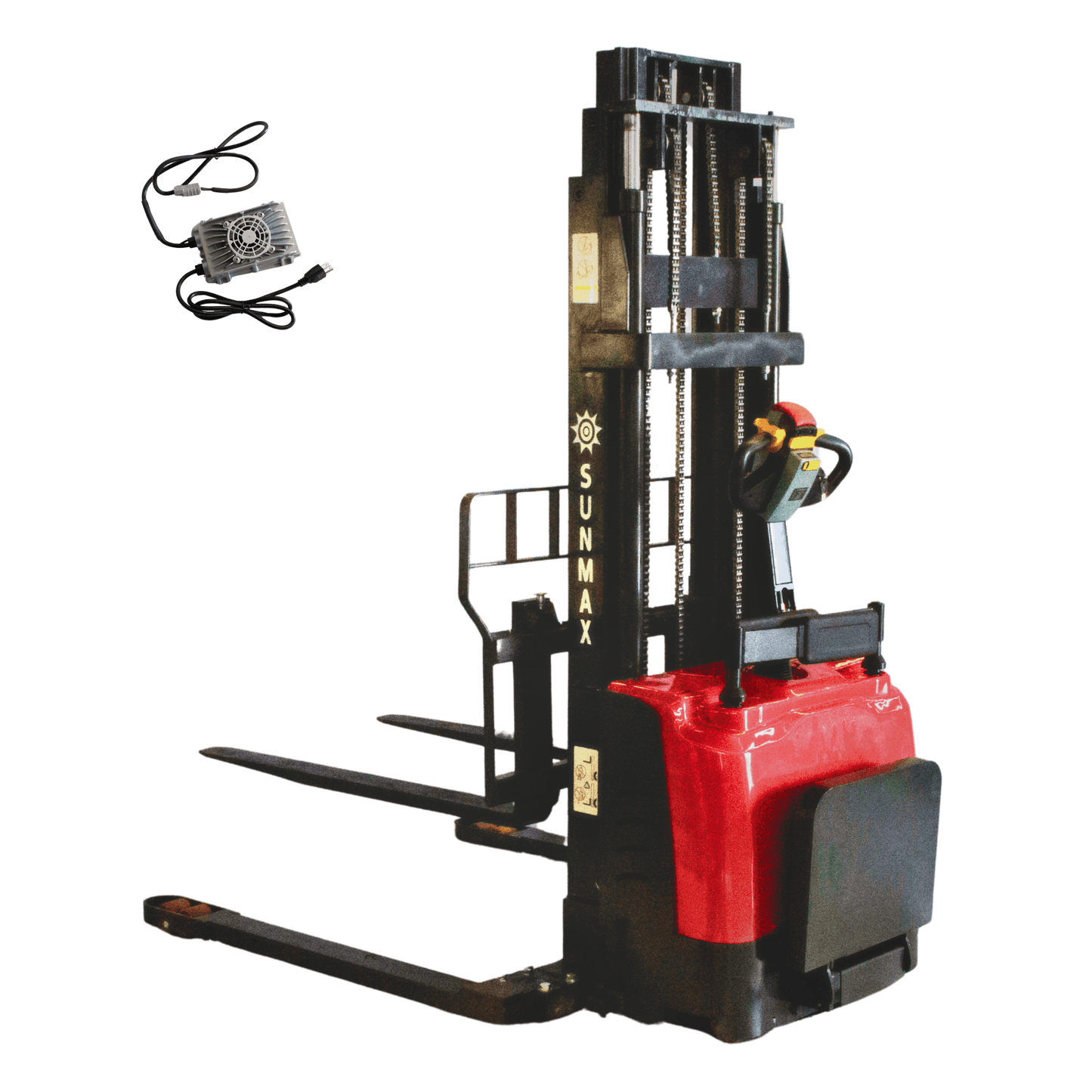

Optimize your warehouse operations with the SUNMAX Full Electric Pallet Stacker, built for professional material handling in industrial and commercial environments. With a 3300 lbs load capacity and an extended lift height of 157 inches (4000 mm), this full-electric stacker is ideal for high-bay pallet stacking and heavy-load transfers.
Designed with adjustable support legs, it adapts to a wide range of pallet sizes and warehouse configurations, providing added versatility and stability during operation. The full-electric drive and lift system enables efficient, low-fatigue performance—perfect for long shifts in logistics, distribution, and manufacturing centers.
Key features include electromagnetic braking, a compact frame for tight aisle maneuverability, and durable polyurethane wheels for smooth floor contact. Powered by a 24V/73Ah rechargeable battery, the SUNMAX pallet stacker delivers reliable operation with travel speeds up to 3.5 mph and lift speeds of 0.46 ft/s.
✅ Full-Electric Drive & Lift
✅ 3300 lbs Max Capacity, 157" Max Lift Height

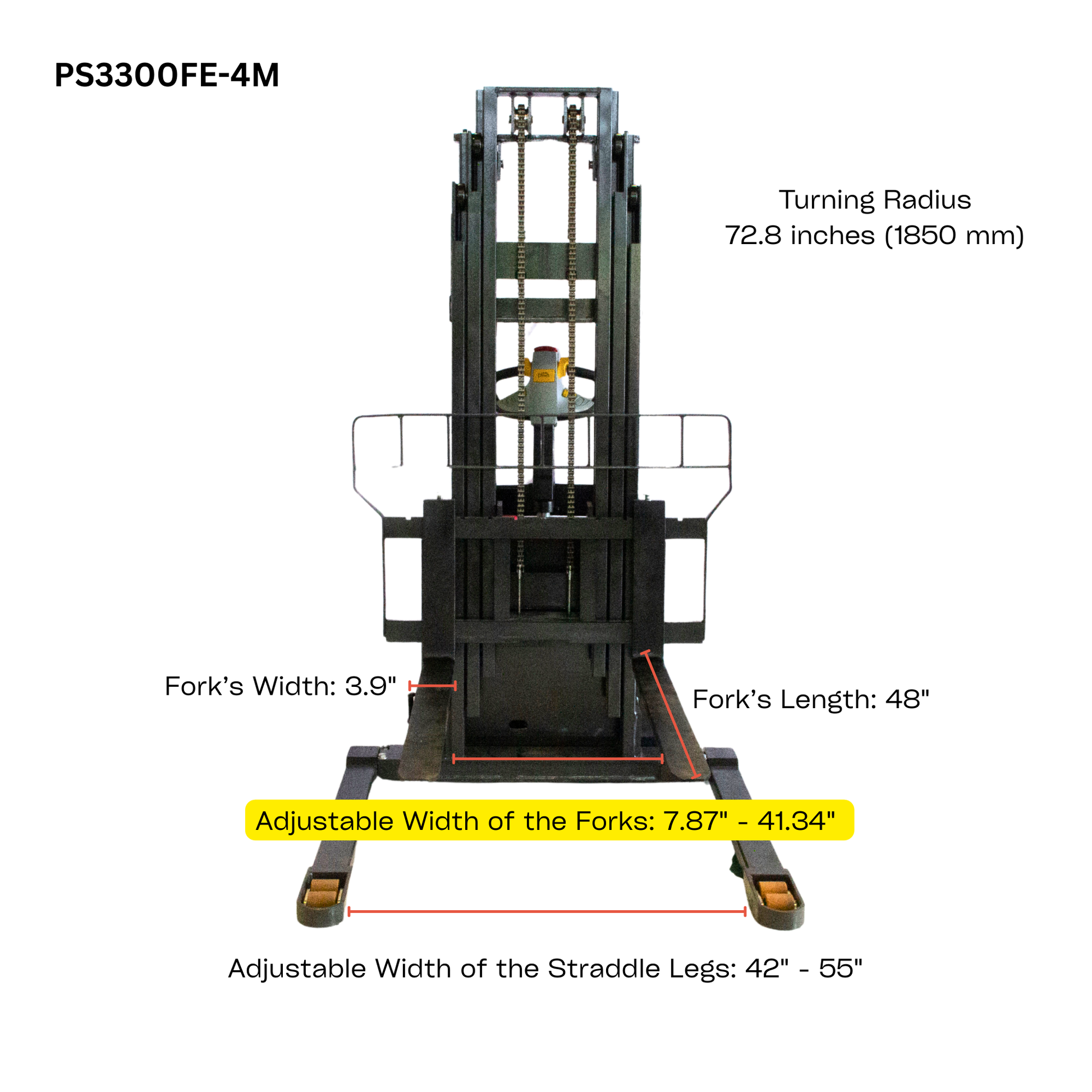

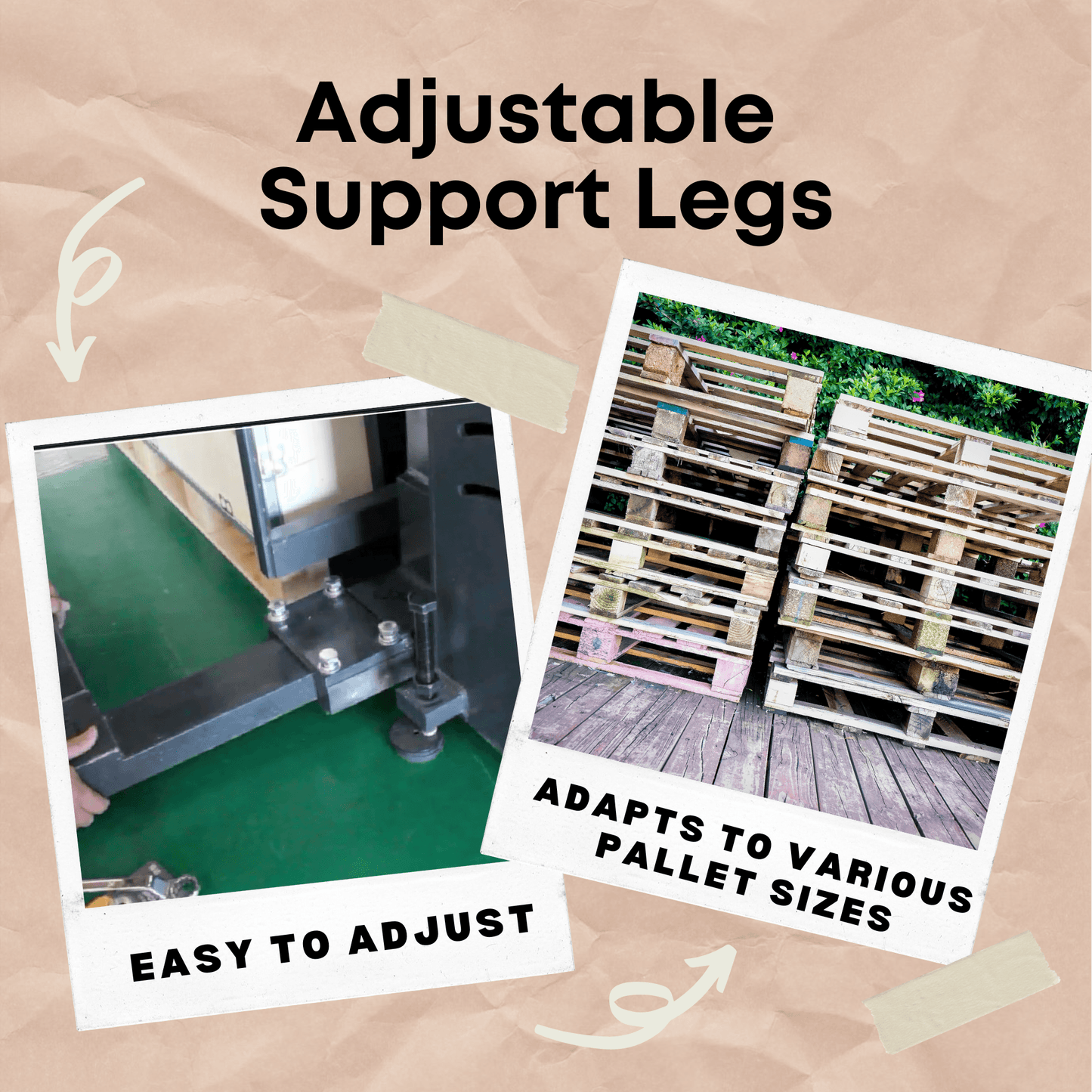

✅ Adjustable Leg Width Up to 55" for Flexible Pallet Handling

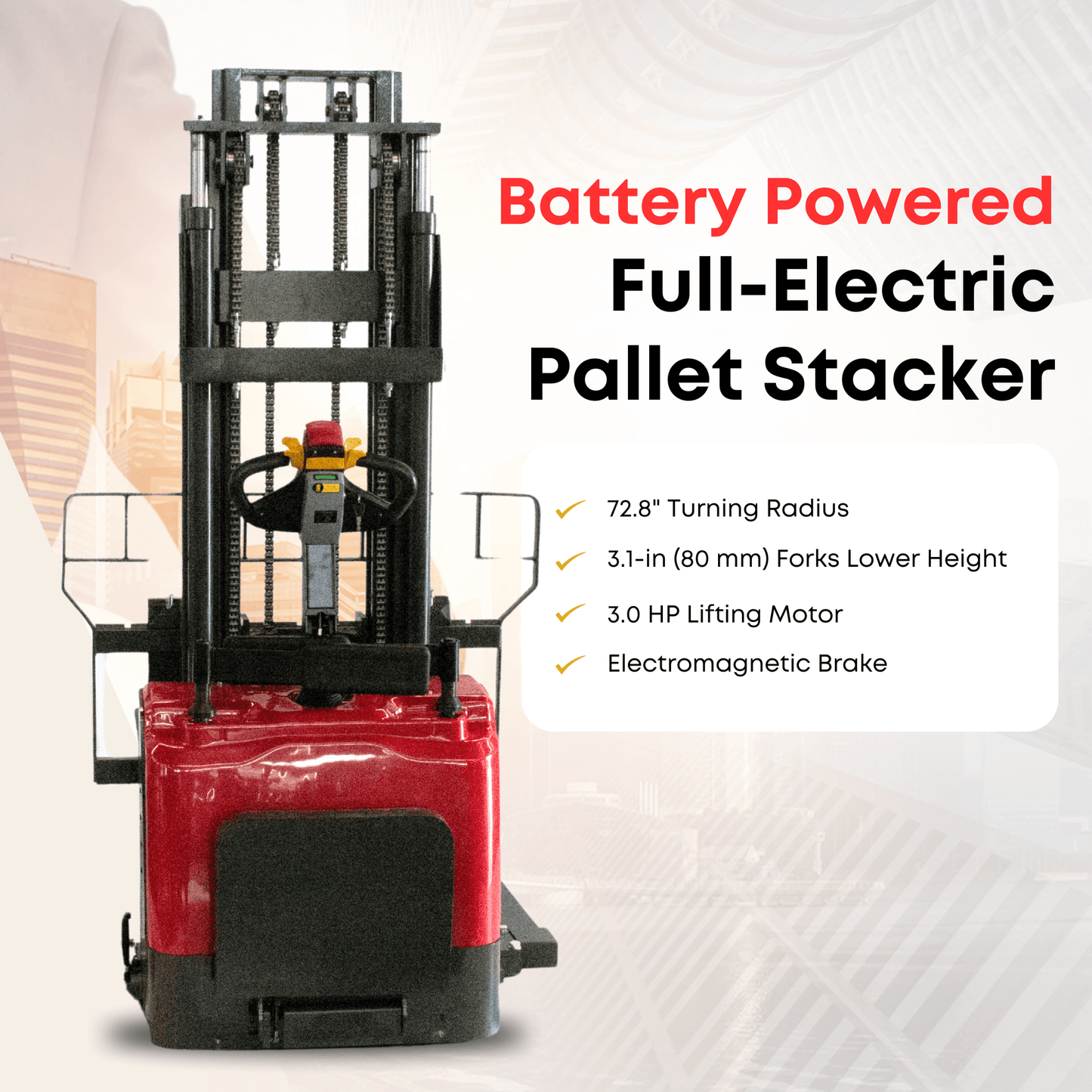

✅ Compact Design with 72.8" Turning Radius
Please note that the wider the distance between the support legs, the lower the lifting capacity. When the support legs are adjusted to the maximum width of 55 inches, the combined weight of the load and pallet that can be lifted is 1,763 lbs (800 kg).
Technical Specifications

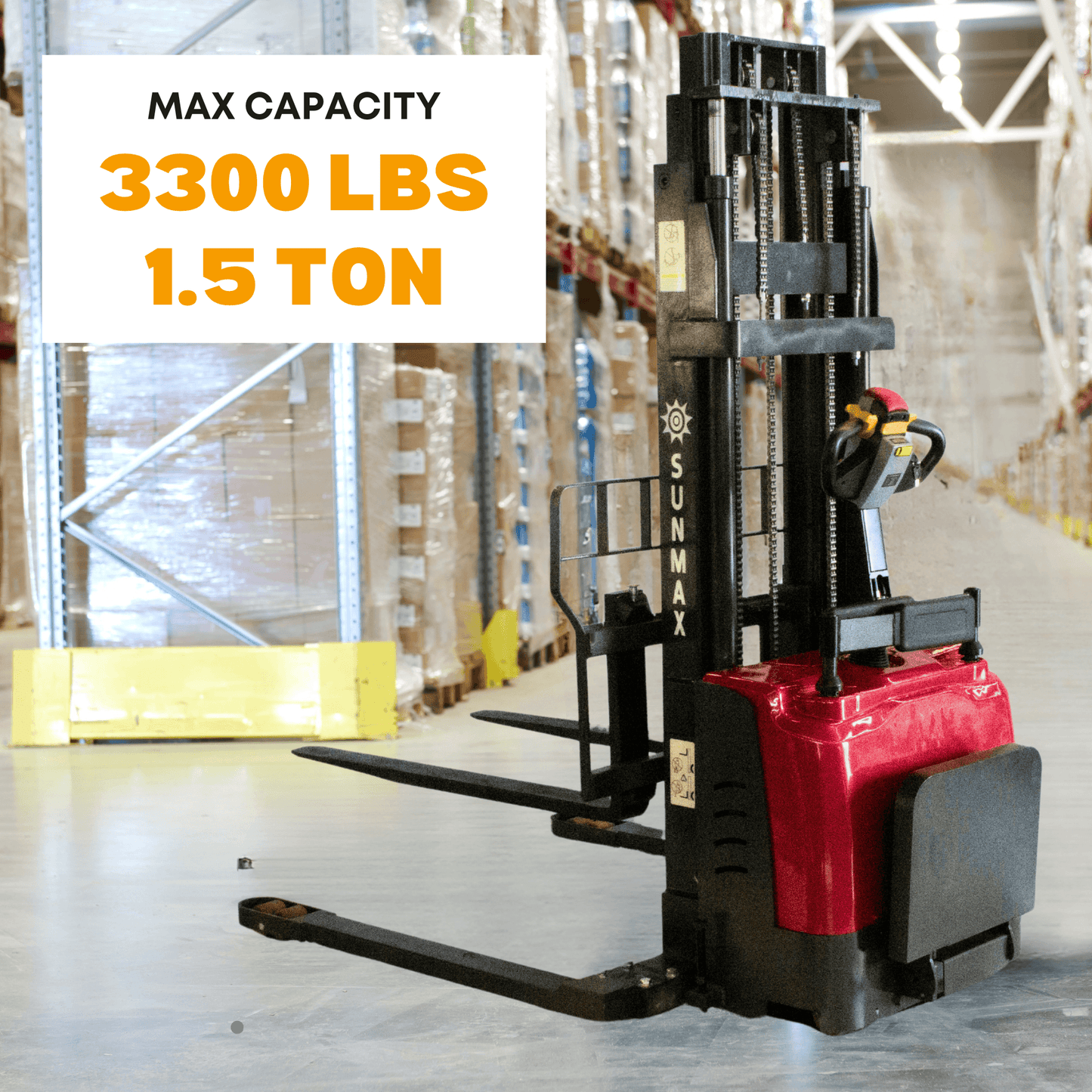

- Rated Load Capacity: 3,300 lbs (1500 kg)

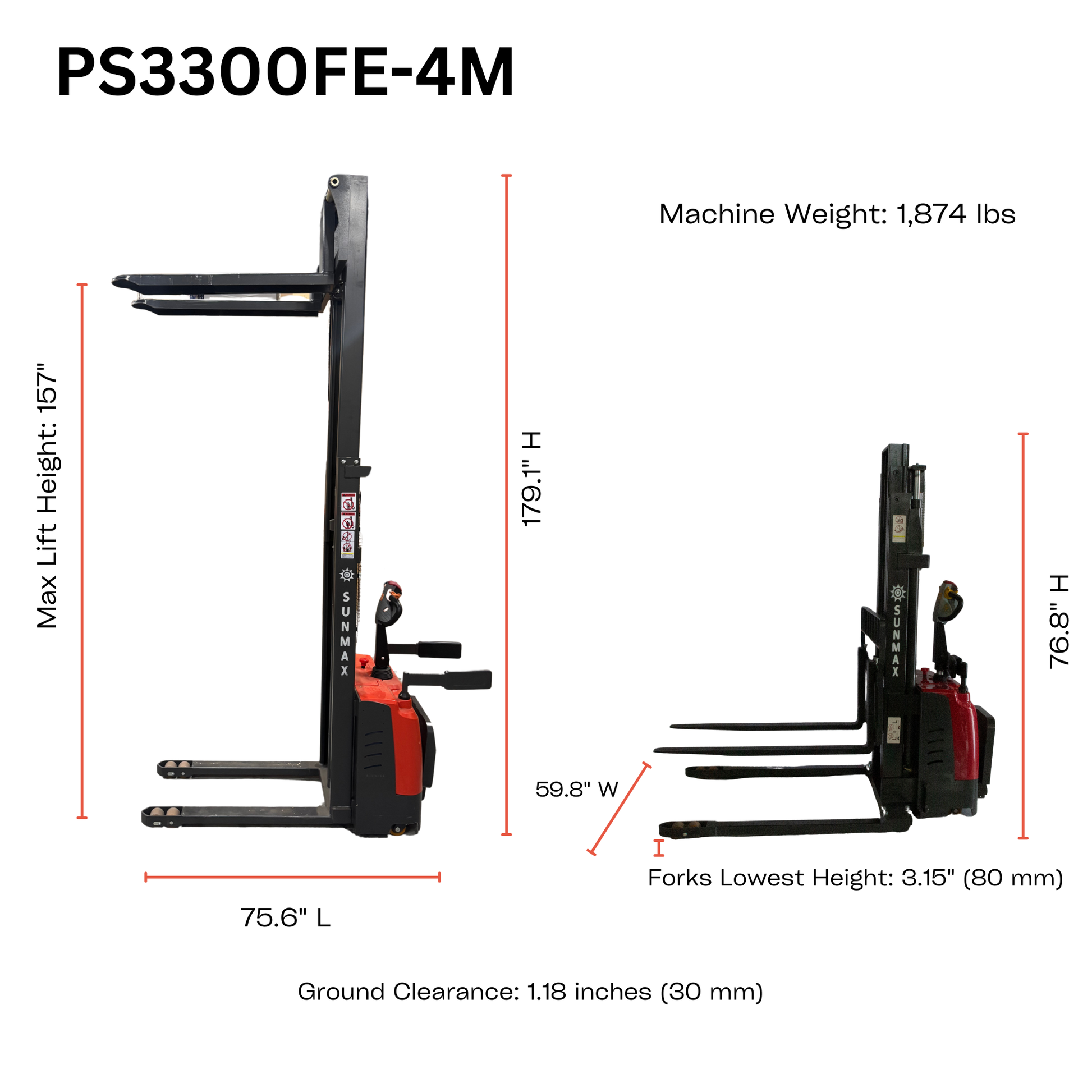

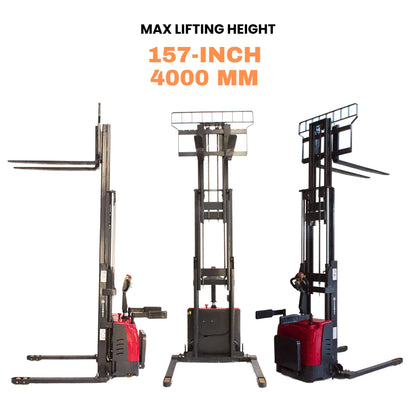

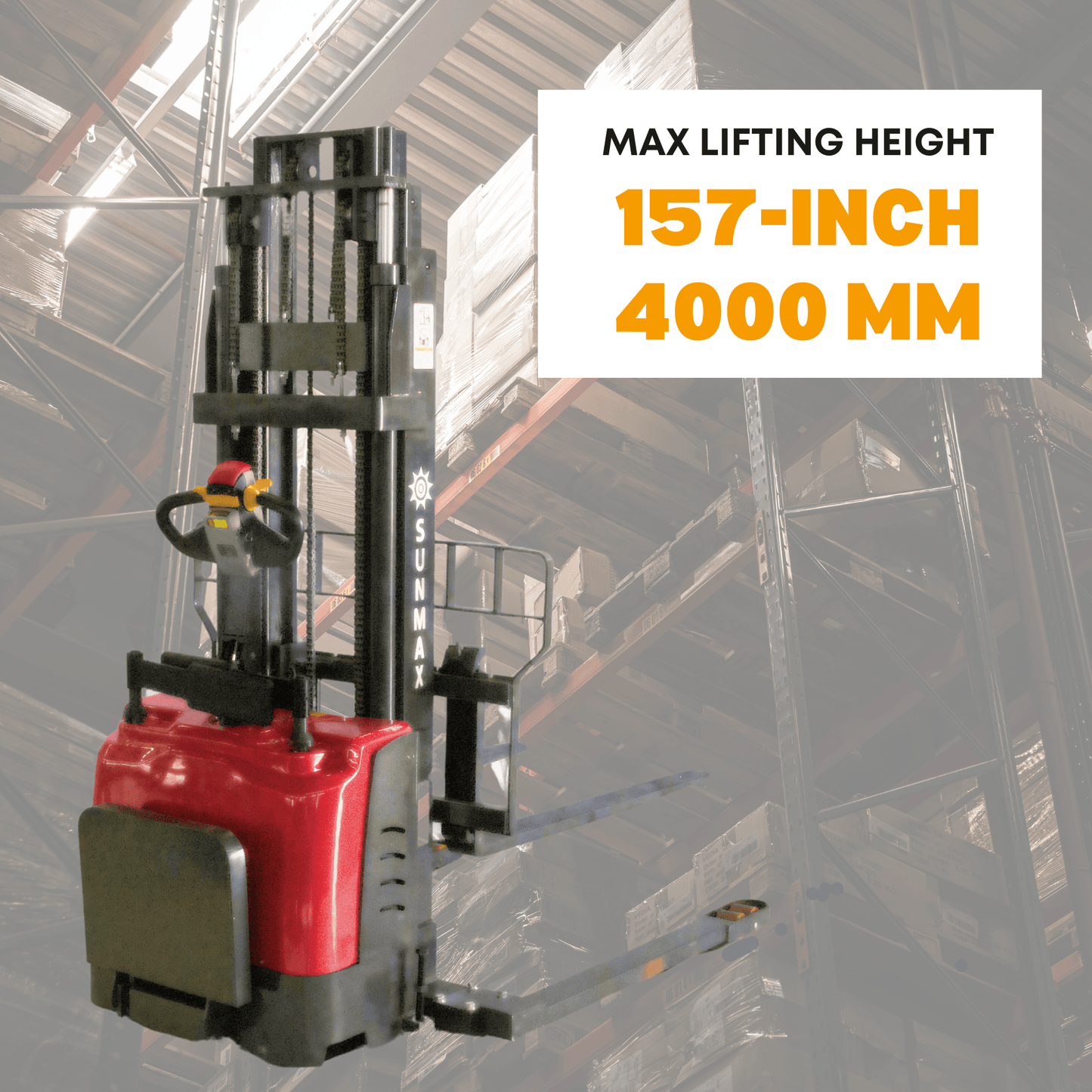

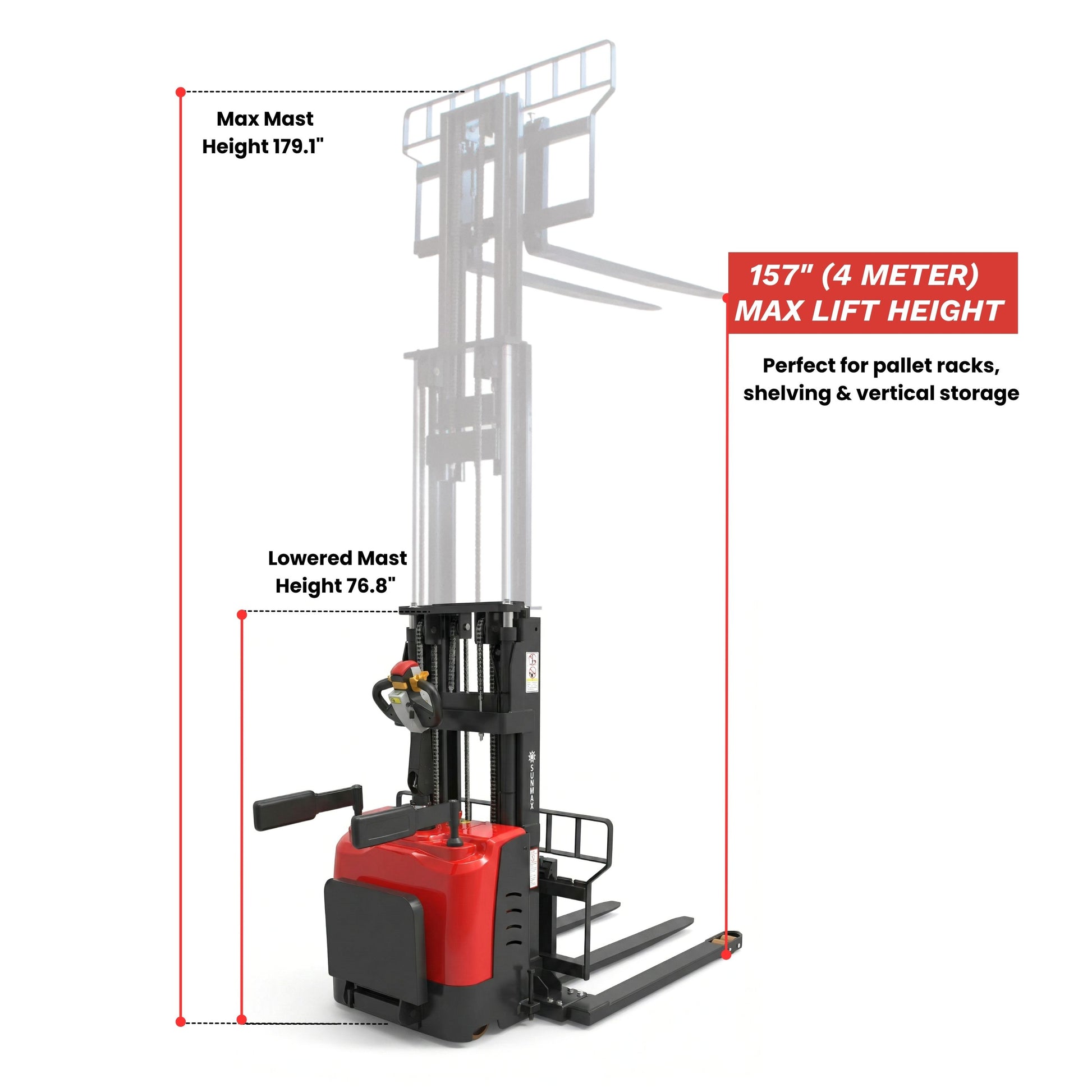

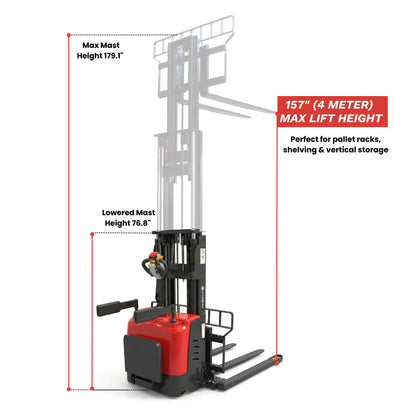

- Max Lifting Height: 157 inches (4000 mm)
- Forks Lowest Height: 3.1 inches (80 mm)
- Load Center Distance: 24 inches (610 mm)
- Ground Clearance (Center Wheelbase): 1.18 inches (30 mm)
- Turning Radius: 72.8 inches (1850 mm)
- Machine Weight: 1,874 lbs (850 kg)
- Dimensions: 75.6*59.8*76.8/179.1 inches (1920*1520*1950/4550 mm)
- Fork Size (L*W*Thickness): 48*3.9*1.4 inches(1220*100*35 mm)
- Fork Outside Width: Up to 39.4 inches (1000 mm)
- Travel Speed (Loaded/Unloaded): 2.5/3.5 MPH (4/5.6 km/h)
- Lift Speed: 14 mm/s
- Lowering Speed: 10 mm/s
- Max Gradability (Loaded/Unloaded): 3% / 7%
- Brake Type: Electromagnetic
- Drive Motor Power: 1.0 HP (0.75 kW)
- Lift Motor Power: 3.0 HP (2.2 kW)
- Battery Capacity: 24V/73Ah
- Noise Level: ≤70 dB(A)
Attention: This is standard pallet stackers and should NOT be used on a sloped driveway; they are designed for flat, level surfaces and can be dangerous to use on inclines. Operating a pallet stacker on a slope risks tipping, loss of control, or damage due to insufficient braking, uneven surfaces, and improper load distribution. For sloped areas, specialized equipment like all-terrain pallet jacks or forklift with strong frames and large wheels are a safer option.
Because this item is heavy and bulky, minor shipping damage can sometimes be unavoidable; please contact us and we will send free replacement parts as needed.
Shipping Policy
Shipping Policy
Once the order is placed, you will receive the machine in 2-8 business days.
RETURN & REFUND POLICY
RETURN & REFUND POLICY
2 years Warranty (Sunmax will ship the non-wearable parts to clients in two years) 30 days free return.
Warranty: 2 years parts
Warranty: 2 years parts
2 years Warranty (Sunmax will ship the non-wearable parts to clients in two years)
We want you to feel confident before you buy. Here are the key details about pallet fit, capacity, payment, shipping, delivery, warranty, parts, and support.
What To Know Before Ordering Your Ps3300fe-4m
Is my payment secure when I order the PS3300FE-4M online?
Yes. Your checkout runs through Shopify's encrypted, PCI-compliant system, so your card details are protected and never stored by us. We accept Visa, Mastercard, American Express, Discover, JCB, and PayPal, plus Shop Pay, Apple Pay, and Google Pay. For ACH or invoicing on a larger material handling order, contact our team before checkout and we'll set it up.
What pallet types can the PS3300FE-4M electric pallet stacker handle?
The PS3300FE-4M handles both open-bottom and closed-bottom (standard GMA-style) pallets. Its adjustable straddle legs widen up to 55 inches, so the forks can straddle around the bottom boards of a closed pallet — something our fixed-leg stackers can't do. If you're moving block pallets, double-faced pallets, or non-standard skids, reach out before ordering so we can confirm fit for your operation.
What is the maximum walkie stacker lift height capacity?
When evaluating a walkie stacker lift height capacity, it is crucial to match the equipment with your highest pallet racking. The PS3300FE-4M lifts up to 3,300 lbs (1,500 kg) to a maximum height of 157 inches (4,000 mm / 13.1 ft) — built for high-bay racking in warehouses, factories, and distribution centers. One important note: rated capacity decreases as the straddle legs widen. At the maximum 55-inch leg spread, the combined load + pallet weight should not exceed 1,763 lbs. Match the leg position to the load you're lifting.
How long does the PS3300FE-4M run, and how fast is it?
The PS3300FE-4M runs on a 24V / 73Ah rechargeable battery, with travel speeds up to 3.5 mph and a lift speed of 0.46 ft/s. Expect roughly 3–5 hours of runtime per charge under normal warehouse use — well suited to intermittent stacking, staging, and loading throughout a shift. The full-electric drive and lift system noticeably reduces operator fatigue compared with manual or semi-electric units.
How soon will my PS3300FE-4M ship, and where does it ship from?
Your PS3300FE-4M ships free freight from our U.S. warehouse in Whittier, California. Most in-stock orders process quickly, with delivery to the 48 contiguous states typically within 3–8 business days after payment — timing can vary by inventory and carrier schedule. Please enter a valid street address and phone number at checkout. Full details are on our Shipping Policy page.
Do I need a loading dock to receive the PS3300FE-4M?
不需要装卸平台。PS3300FE-4M 通过带尾板（liftgate）的货运配送，承运商可将这台全电动堆高车降至地面交付给您。您需要提供有效的街道地址——货运承运商无法送达邮政信箱（P.O. box）。承运商通常会提前致电预约送货时段，因此下单后请保持电话畅通。落地后，机器可凭自身动力移动到指定位置。
How does the PS3300FE-4M warranty work, and what if it arrives damaged?
The PS3300FE-4M is backed by a 2-year warranty covering qualifying defects in non-wearable parts under normal use, starting from the date of delivery. Wear items and damage from misuse or improper maintenance may not be covered. If your stacker arrives damaged or develops an issue, contact our U.S.-based support team with your order number and clear photos — we'll diagnose the issue and coordinate the right solution. See our Warranty Policy.
Should I order the PS3300FE-4M, the PS3300FE-3M, or the PS3300FE-2M?
All three are full-electric SUNMAX pallet stackers rated at 3,300 lbs — the choice comes down to lift height and pallet type. The PS3300FE-2M lifts to 78 inches with fixed legs (open-bottom pallets only). The PS3300FE-3M lifts to 118 inches, also fixed-leg / open-bottom only. The PS3300FE-4M lifts to 157 inches with adjustable legs, handling both open- and closed-bottom pallets — built for high-bay racking. Still unsure? Contact our team and we'll help you match the right model.
