A-20 Electric Forklift – 4400 lbs Capacity, 118" Lift for Warehouse Use

A-20 Electric Forklift – 4400 lbs Capacity, 118" Lift for Warehouse Use

$14,999.00 USD
$14,999.00 USD
Limited-time Sale Sold out
Shipping calculated at checkout.
  • Free freight shipping to 48 lower states
  • Deliver in 3-8 business days
  • Warranty: 2 year full / 3 year powertrain / 5 year battery

A-20 Electric Forklift – 4400 lbs Capacity, 118

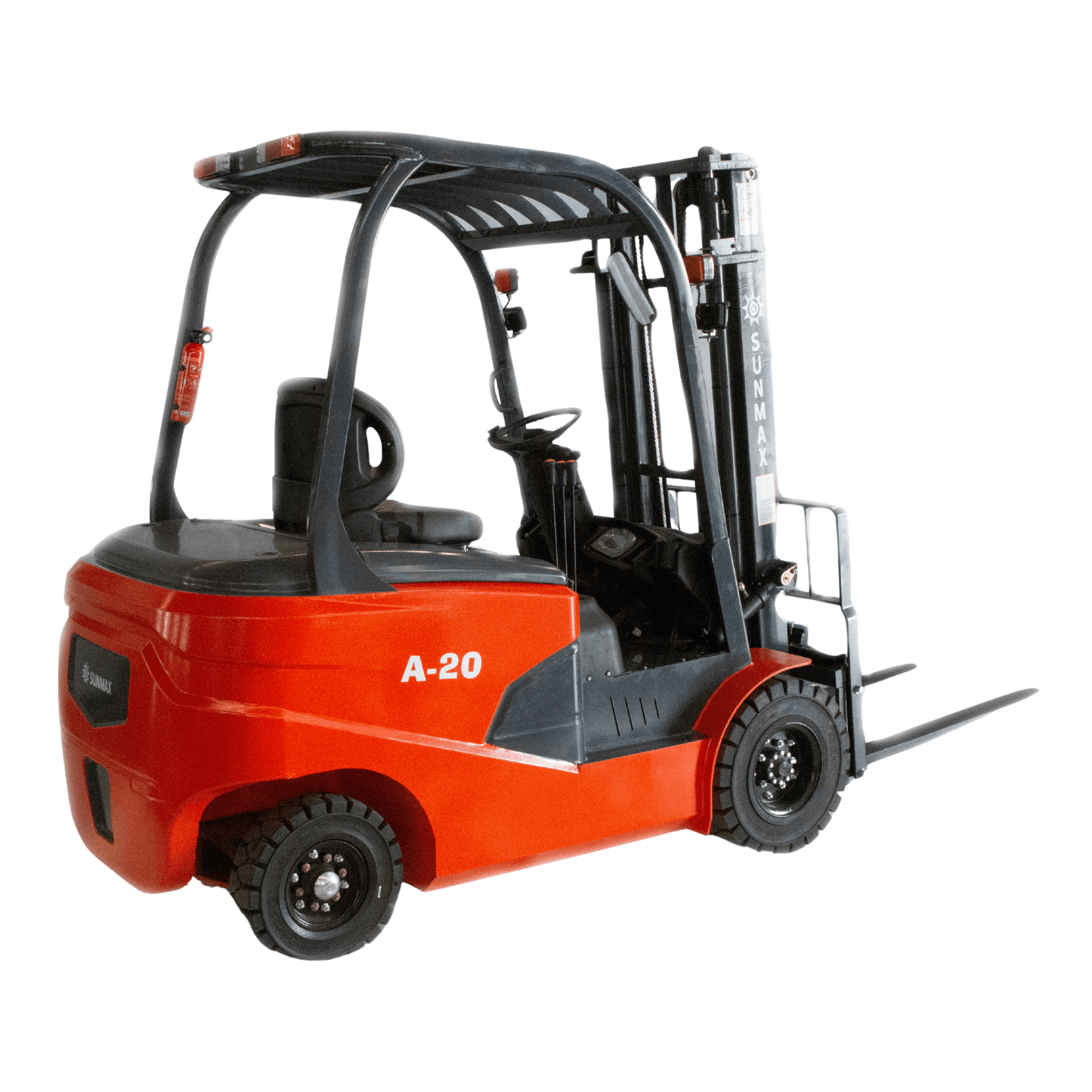

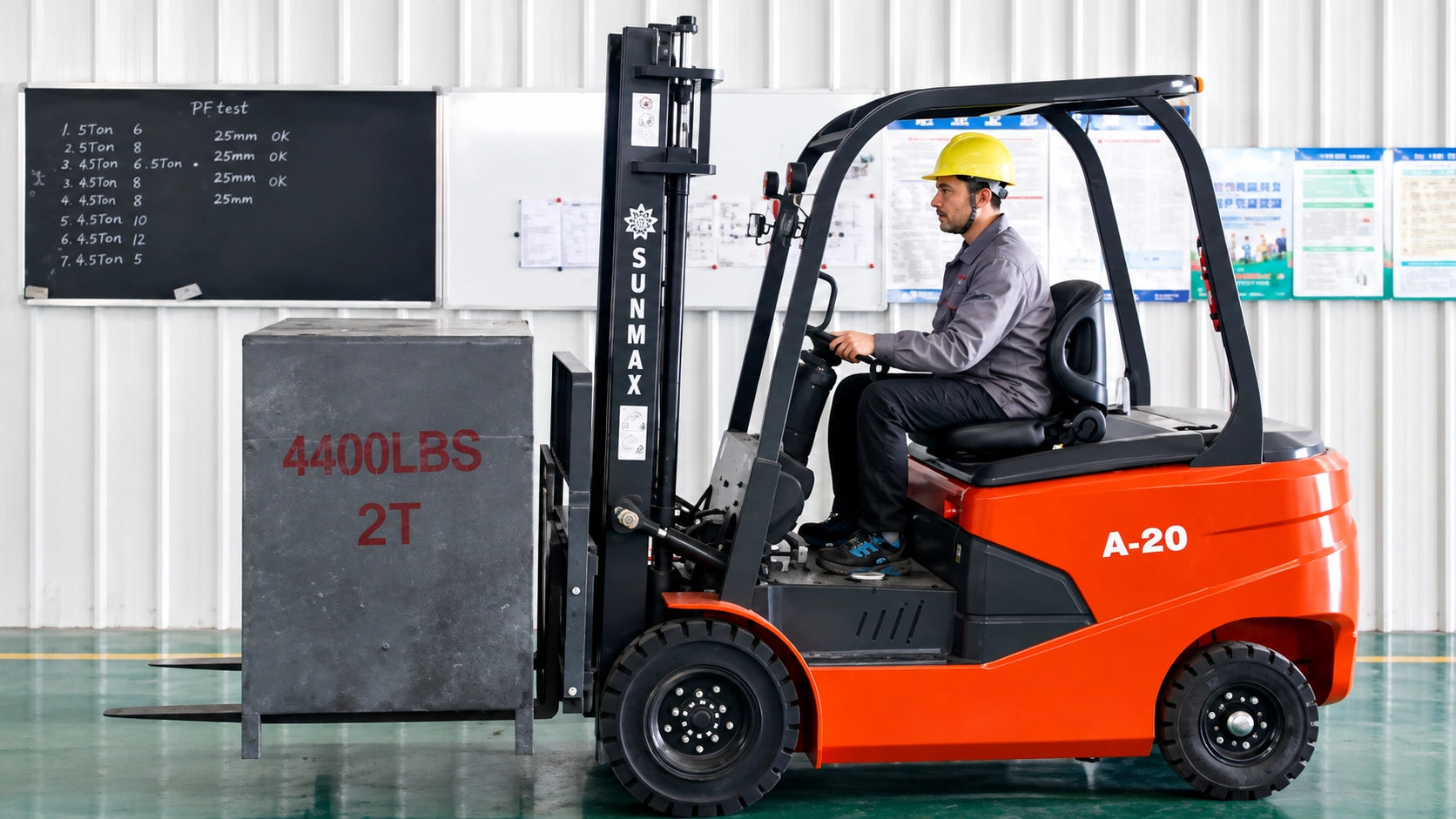

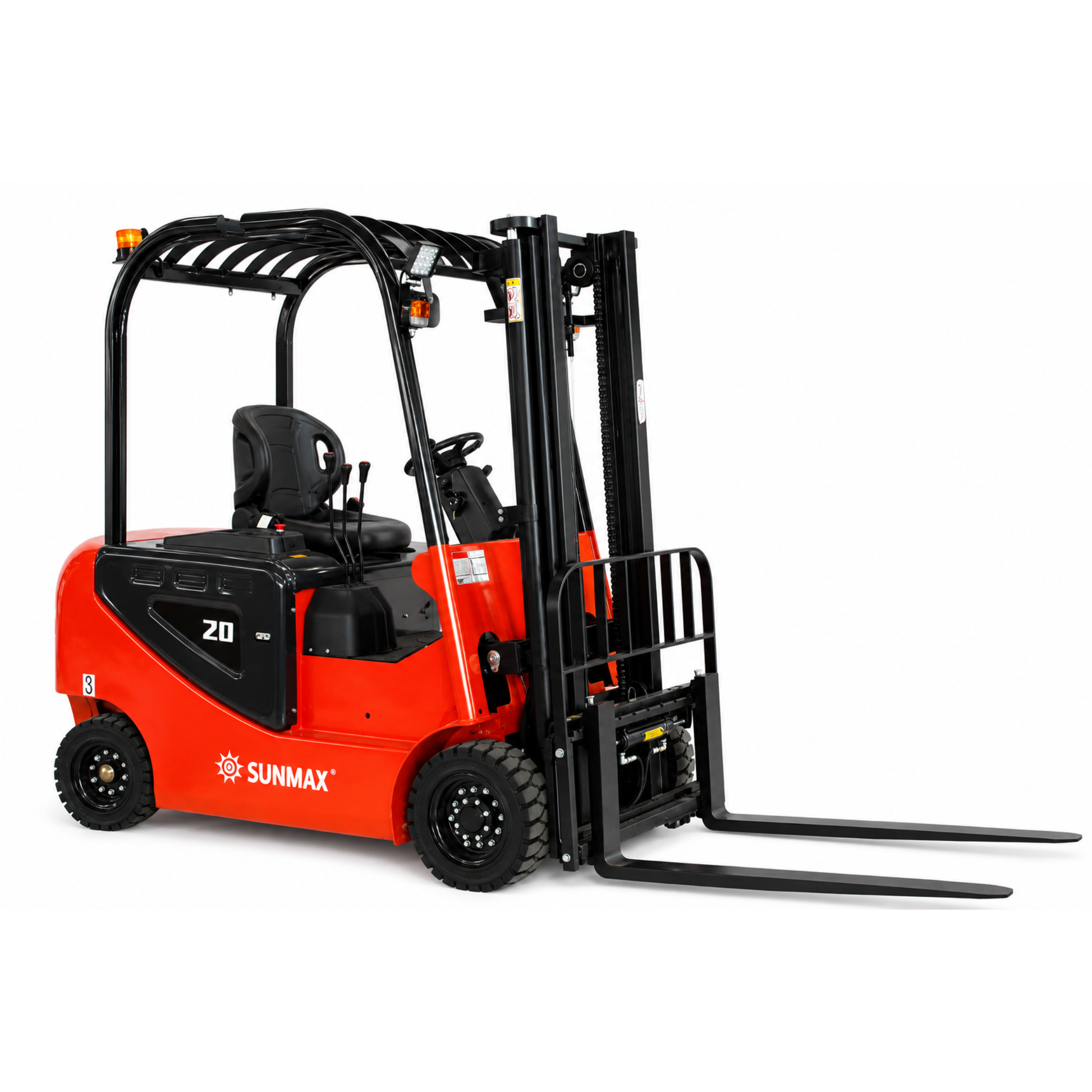

SUNMAX A-20 Electric Forklift is designed for efficient material handling in warehouses, distribution centers, and industrial environments. With a robust lifting capacity of 4,400 lbs and a maximum lift height of 118 inches, it offers exceptional performance, maneuverability, and operator comfort. Powered by an efficient AC motor system and equipped with hydraulic power steering, the A-20 is an ideal solution for mid-sized to heavy-duty indoor applications.

Key Features & Highlights

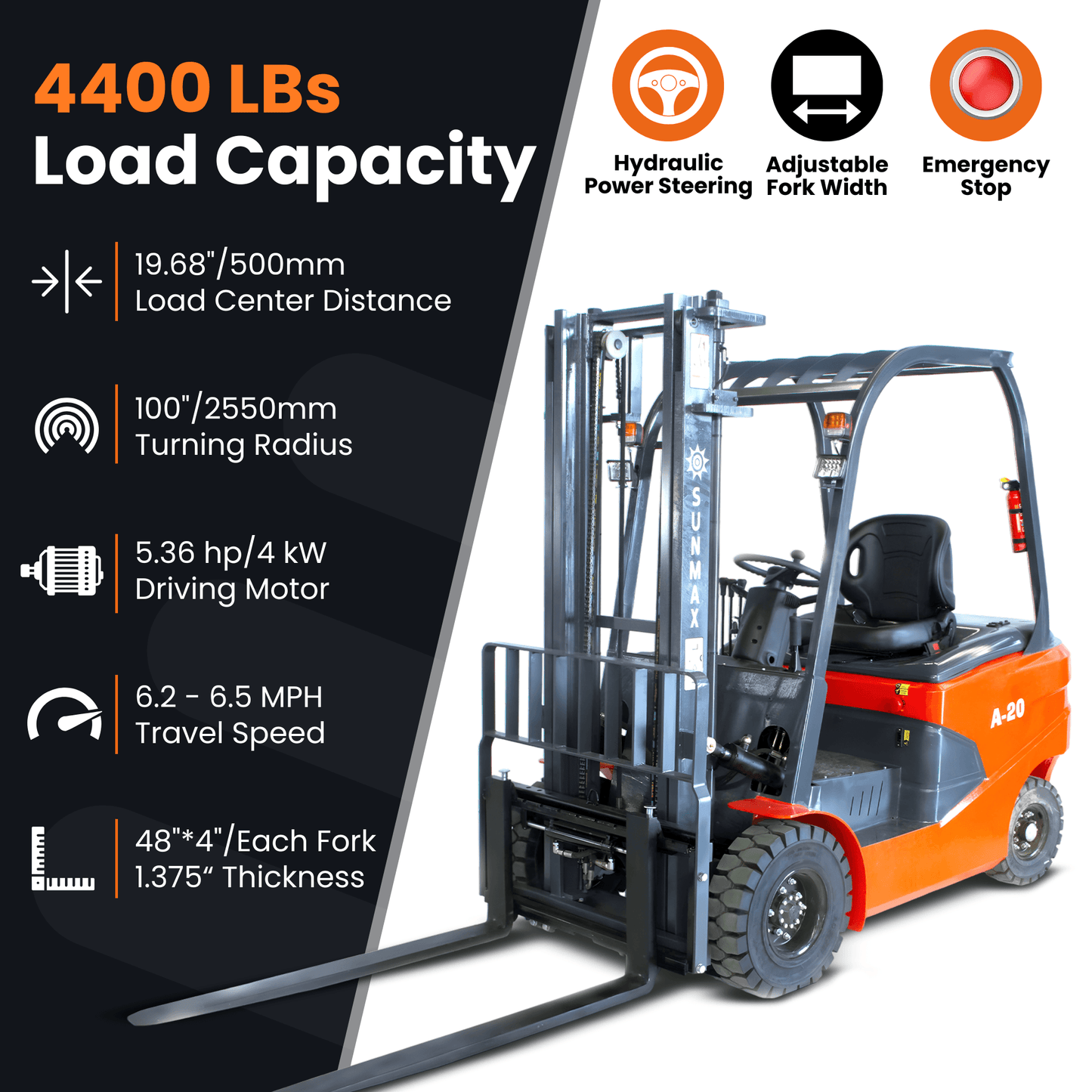

✅ 4400 lbs (2-Ton) Load Capacity – Perfect for medium-duty warehouse and industrial applications.

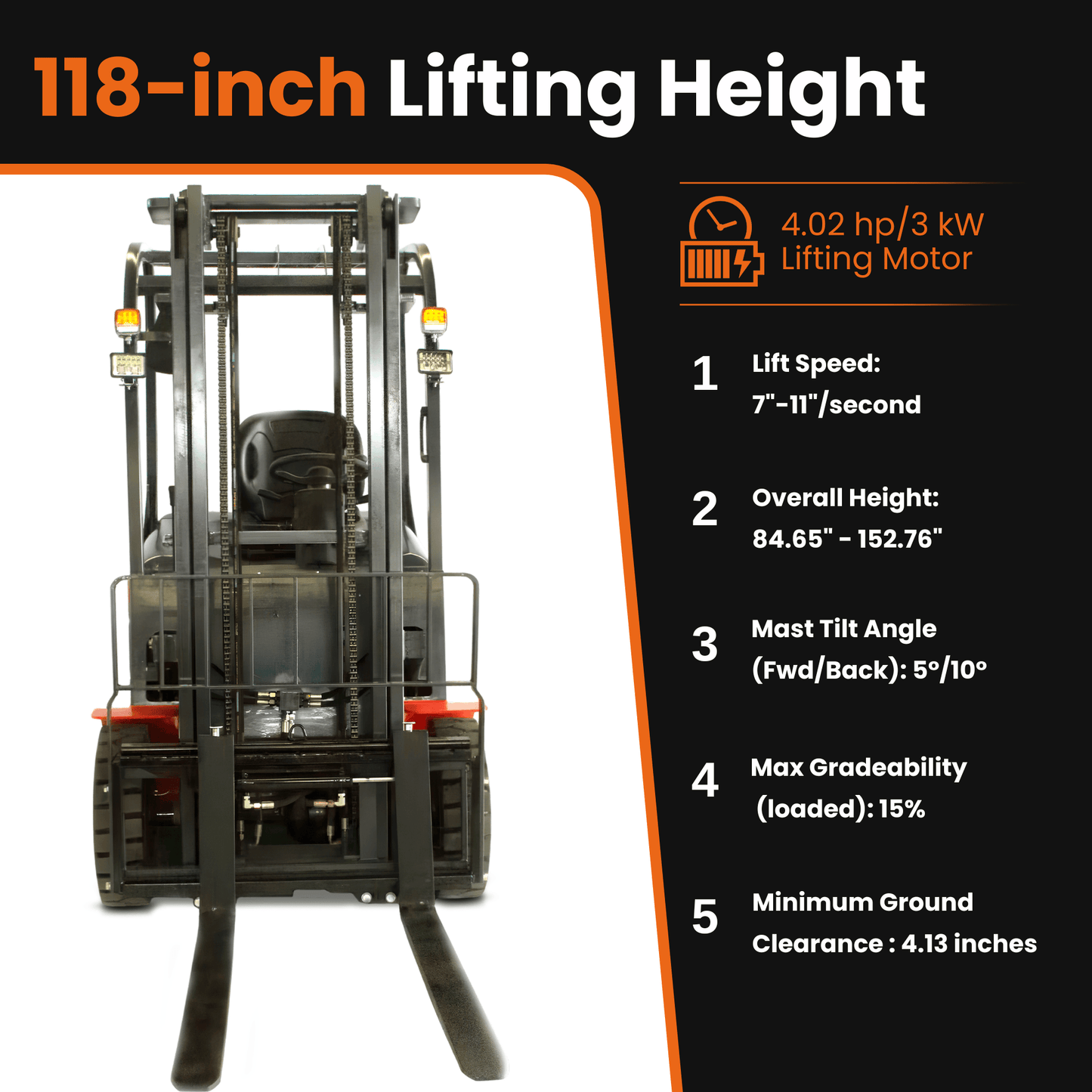

✅ 118 inch (9.8 ft, 3m) Max Lifting Height – Ideal for standard racking and storage needs.

✅ Compact and Space-Saving Design -  90.5" chassis length without forks, 47“ width, and 100“ turning radius for easy navigation in tight aisles.

✅ Efficient AC drive and lift motors – 3 kW lifting motor and 4 kW drive motor for efficient, consistent performance.

✅ Hydraulic Power Steering – Ensures smooth, effortless maneuverability.

✅ Long Battery Runtime – 60V/200Ah battery provides up to 4 hours of continuous operation per charge.

Applications

  • Warehousing and storage
  • Manufacturing and industrial plants
  • Logistics and distribution hubs
  • Retail stockrooms

Specifications

Performance

  • Rated Load Capacity: 4,400 lbs
  • Max Lift Height: 118 in
  • Load Center Distance: 25.98 in
  • Max Gradability (Laden): 15%
  • Max Lift Speed:
    • Unladen: 11 in/s
    • Laden: 7 in/s
  • Max Travel Speed (unladen): 9.32 mph
  • Mast Tilt Angle (Fwd/Back): 5° / 10°
  • Steering Type: Hydraulic Power Steering

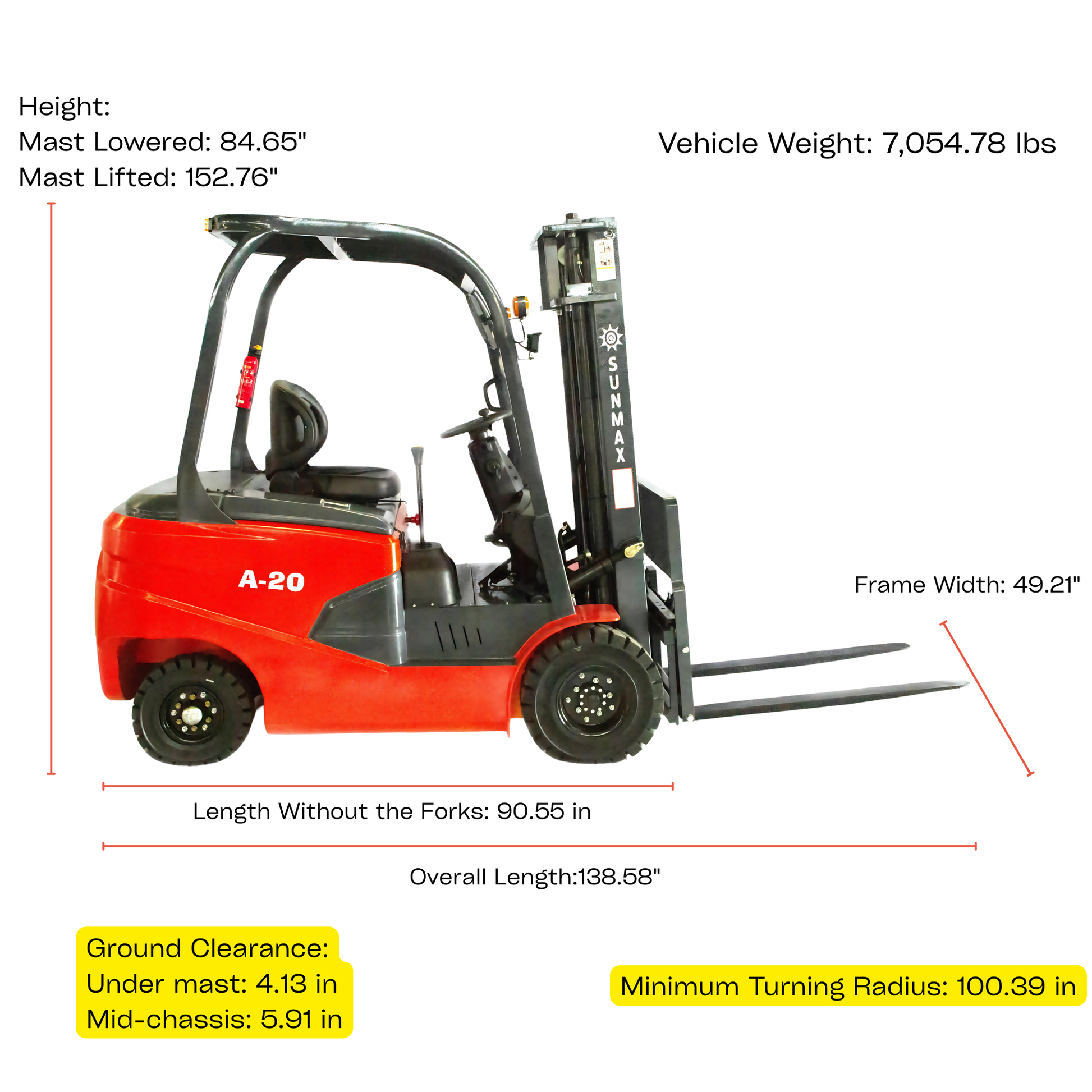

Dimensions

  • Overall Length:
    • Without forks: 90.55 in
    • With forks: 138.58 in
  • Overall Width:
    • Wheel width: 47.24 in
    • Frame width: 49.21 in
  • Overall Height:
    • Mast lowered: 84.65 in
    • Overhead guard: 152.76 in
  • Vehicle Weight: 7,054.78 lbs
  • Ground Clearance: 4.13 in (Under mast)/ 5.91 in ( Mid-chassis)
  • Adjustable Distance between Forks: 0-30.9 in
  • Wheelbase: 67.32 in
  • Front Overhang: 18.9 in
  • Front Tread: 37.8 in
  • Rear Tread: 37.8 in
  • Minimum Turning Radius: 100.39 in

Power & Electrical

  • Lift Motor Power: 4 HP
  • Drive Motor Power: 5.36 HP
  • Battery Capacity: 60V/200Ah
  • Charger Input Voltage: 110 V
  • Continuous Operating Time per Charge: ~5 h

Standard Warranty Coverage

  • Full Truck Coverage: 24 months or 4,000 operating hours (whichever occurs first).
  • Powertrain & Major Components (Drive Motor, Controller, Transmission, Mast Structure): 36 months or 6,000 operating hours (whichever occurs first).
  • Battery: 60 months.
  • Charger: 36 months.

This warranty does not cover:

  • Normal wear and tear (tires, brake pads, fuses, light bulbs, filters, hydraulic hoses, seals, brushes).
  • Damage caused by misuse, abuse, accidents, overloading, improper operation, or lack of routine maintenance.
  • Modifications or repairs performed without Seller’s authorization.
  • Damage due to exposure to corrosive environments, improper charging, or use of non-approved parts or accessories.
View full details

  • LIFTING CAPACITY

    Heavy-duty electric forklift capable of lifting up to 4,400 pounds, ideal for warehouse and industrial material handling needs

  • LIFT HEIGHT

    Features an impressive 118-inch maximum lift height, providing versatile vertical reach for various storage applications

  • POWER SOURCE

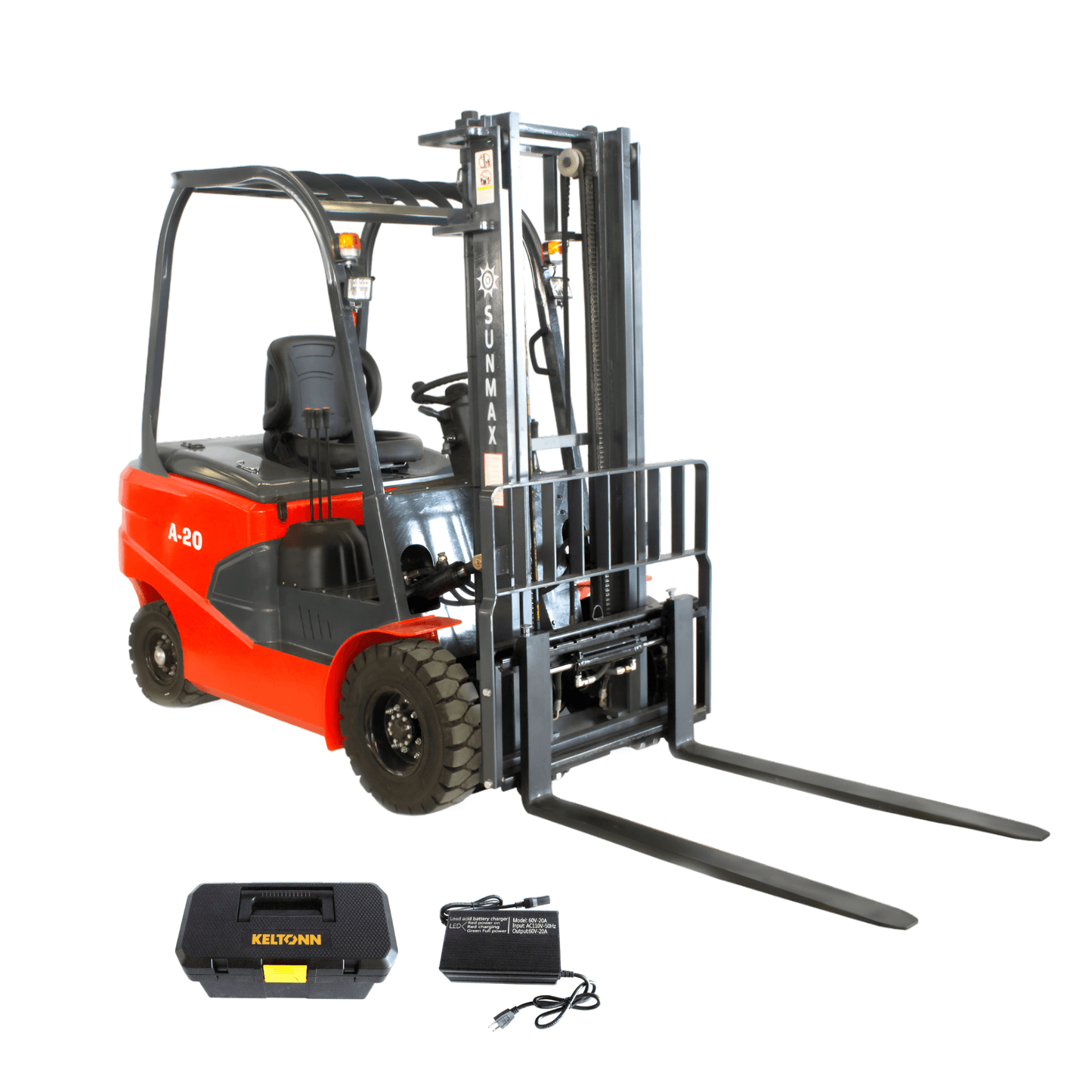

    Efficient electric-powered operation with included battery pack and charger for continuous warehouse operations

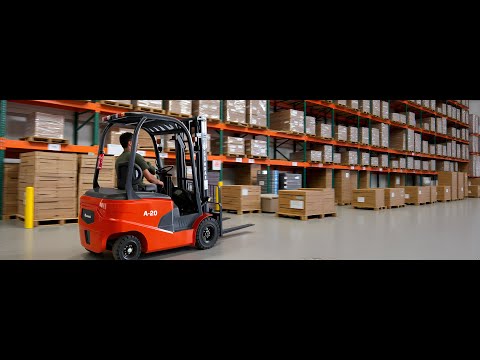

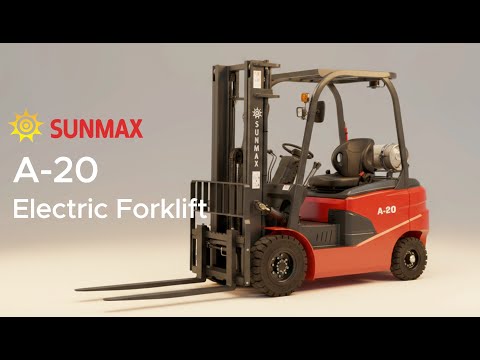

HOW TO USE A-20 Electric Forklift

SPECIFICATIONS

    • Rated Load Capacity: 4,400 lbs
    • Max Lift Height: 118 in
    • Load Center Distance: 25.98 in
    • Max Gradability (Laden): 15%
    • Max Lift Speed:Unladen: 11 in/sLaden: 7 in/s
    • Max Travel Speed (unladen): 9.32 mph
    • Mast Tilt Angle (Fwd/Back): 5° / 10°
    • Steering Type: Hydraulic Power Steering
    • Overall Length:Without forks: 90.55 inWith forks: 138.58 in
    • Overall Width:Wheel width: 47.24 inFrame width: 49.21 in
    • Overall Height:Mast lowered: 84.65 inOverhead guard: 152.76 in
    • Vehicle Weight: 7,054.78 lbs

    • Ground Clearance: 4.13 in (Under mast)/ 5.91 in ( Mid-chassis)
    • Adjustable Distance between Forks: 0-30.9 in
    • Wheelbase: 67.32 in
    • Front Overhang: 18.9 in
    • Front Tread: 37.8 in
    • Rear Tread: 37.8 in
    • Minimum Turning Radius: 100.39 in

    • Lift Motor Power: 4 HP
    • Drive Motor Power: 5.36 HP
    • Battery Capacity: 60V/200Ah
    • Charger Input Voltage: 110 V
    • Continuous Operating Time per Charge: ~5 h

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Customer Pain Point Solutions

📧  sales@sunmaxus.com ☎️ (800) 788-0856

Is it easy to operate?

Sunmax A-20 Electric Forklift features a comfortable operator compartment with intuitive controls, suggesting that it is designed for ease of operation.

How long does the battery last?

The Sunmax A-20 Electric Forklift can operate for approximately 3 to 4 hours per charge.

Is it easy to maneuver in tight spaces?

Yes, the Sunmax A-20 Electric Forklift is designed for easy maneuverability in tight spaces, thanks to its compact design, 90.5-inch chassis length without forks, 47-inch width, and 100-inch turning radius.

What safety features does it have?

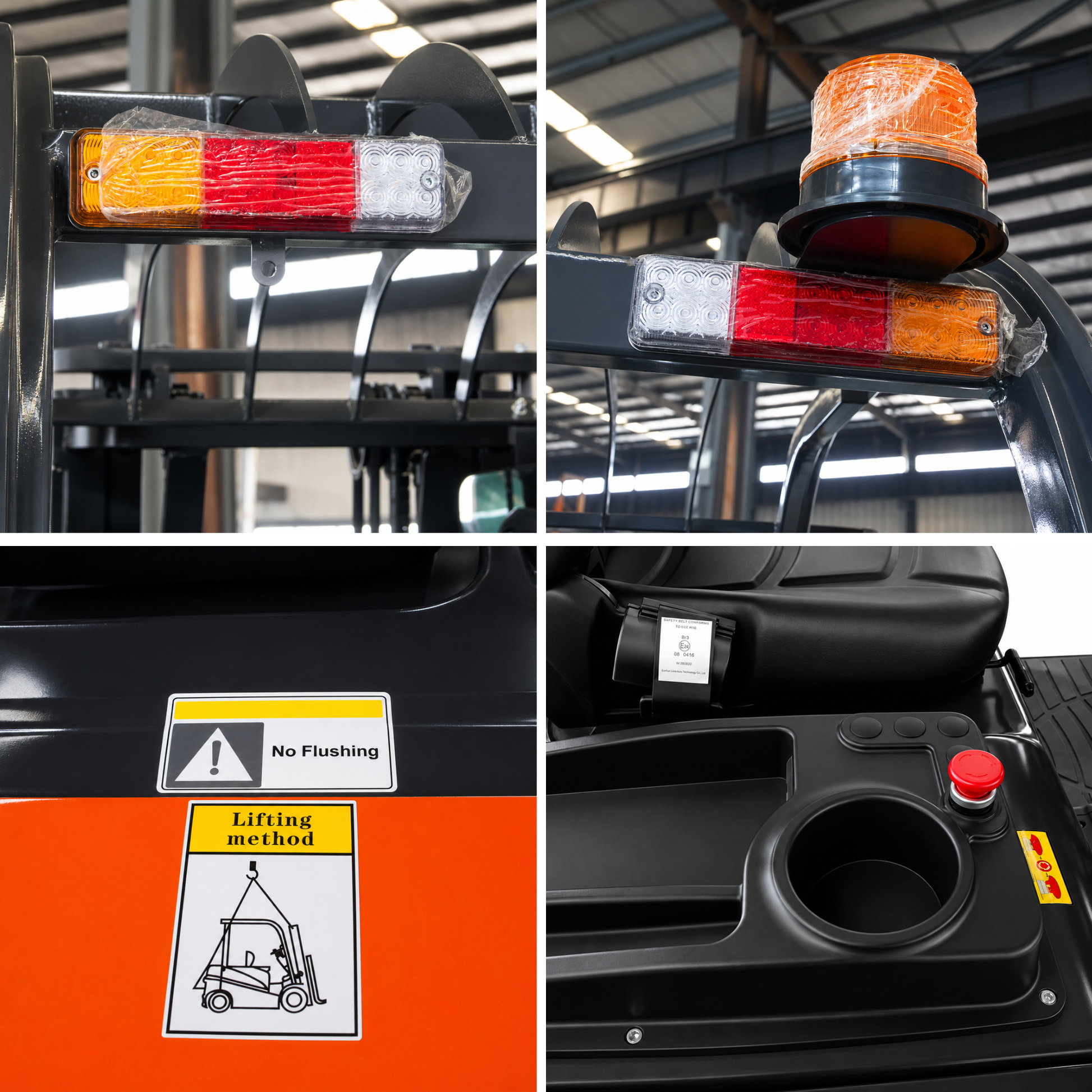

The Sunmax A-20 Electric Forklift includes essential safety features such as overhead guard protection, warning lights, and a reliable braking system.

What is the maximum weight capacity?

The Sunmax A-20 Electric Forklift has a maximum weight capacity of 4400 pounds.
