SUNMAX

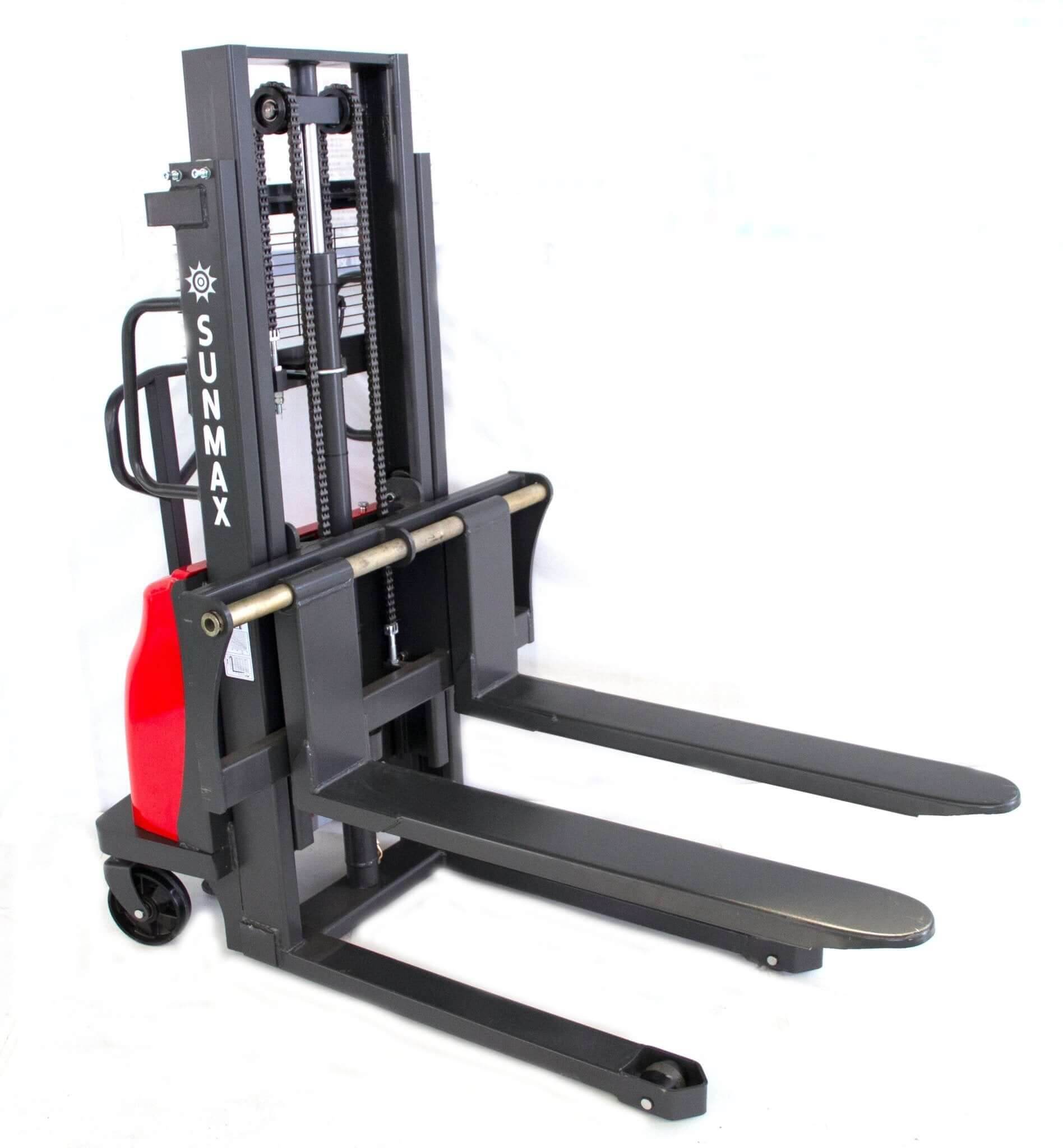

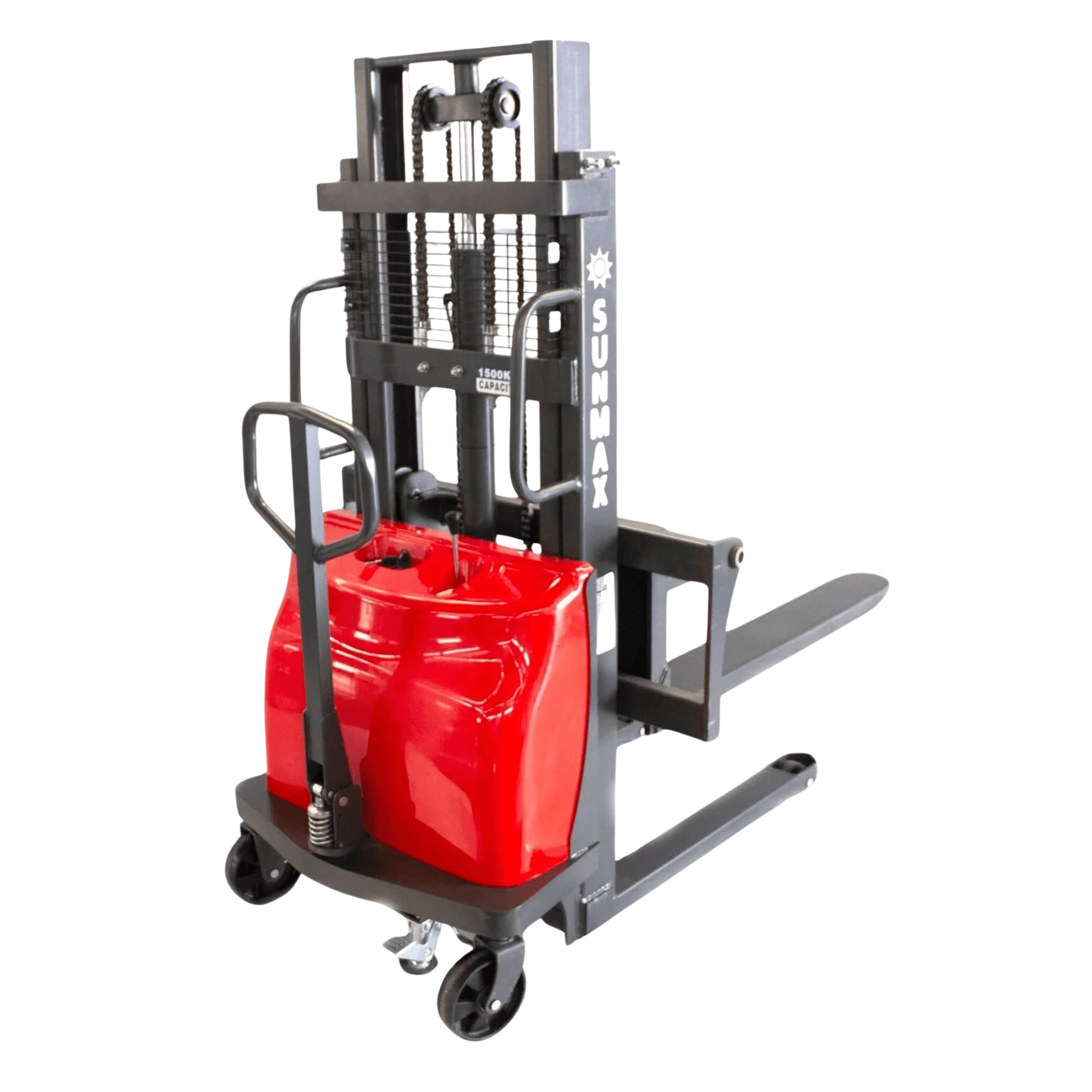

PS3300SE-2M Semi-Electric Pallet Stacker, 3300 lbs Capacity, 6.6 ft Lifting Height

PS3300SE-2M Semi-Electric Pallet Stacker, 3300 lbs Capacity, 6.6 ft Lifting Height

Regular price $3,399.00 USD
Regular price Sale price $3,399.00 USD
Sale Sold out
Shipping calculated at checkout.

Introducing the PS3300SE-2M Semi-Electric Pallet Stacker by Sunmax, the ideal solution for efficient and safe material handling in various industrial settings.

Designed for short-distance stacking and transportation on flat surfaces, this stacker combines the convenience of electric operation with the power of hydraulic lifting.

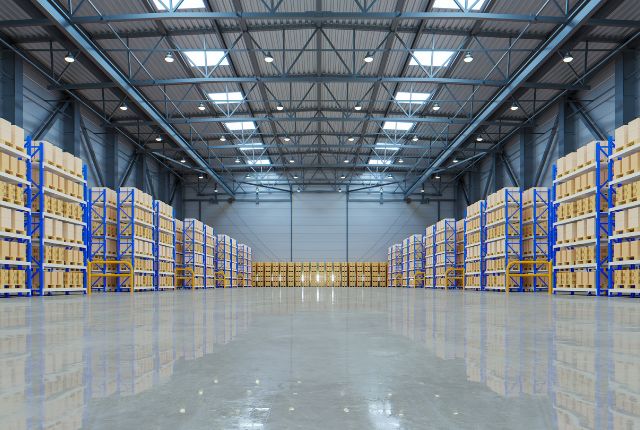

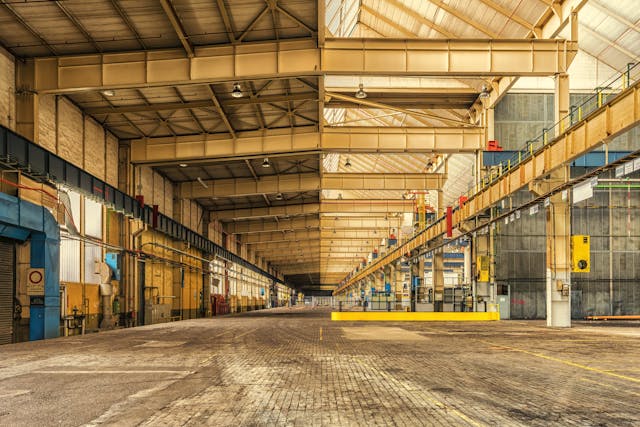

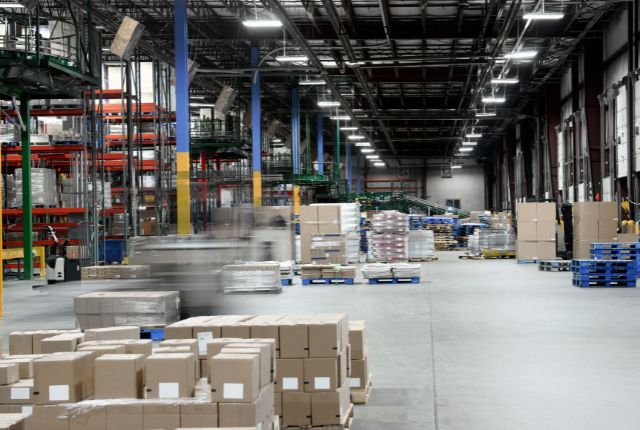

With a robust capacity and advanced features, the PS3300SE-2M ensures smooth, reliable performance and easy maintenance, making it a must-have for factories, warehouses, and workshops.

Key Features

  1. High Load Capacity:

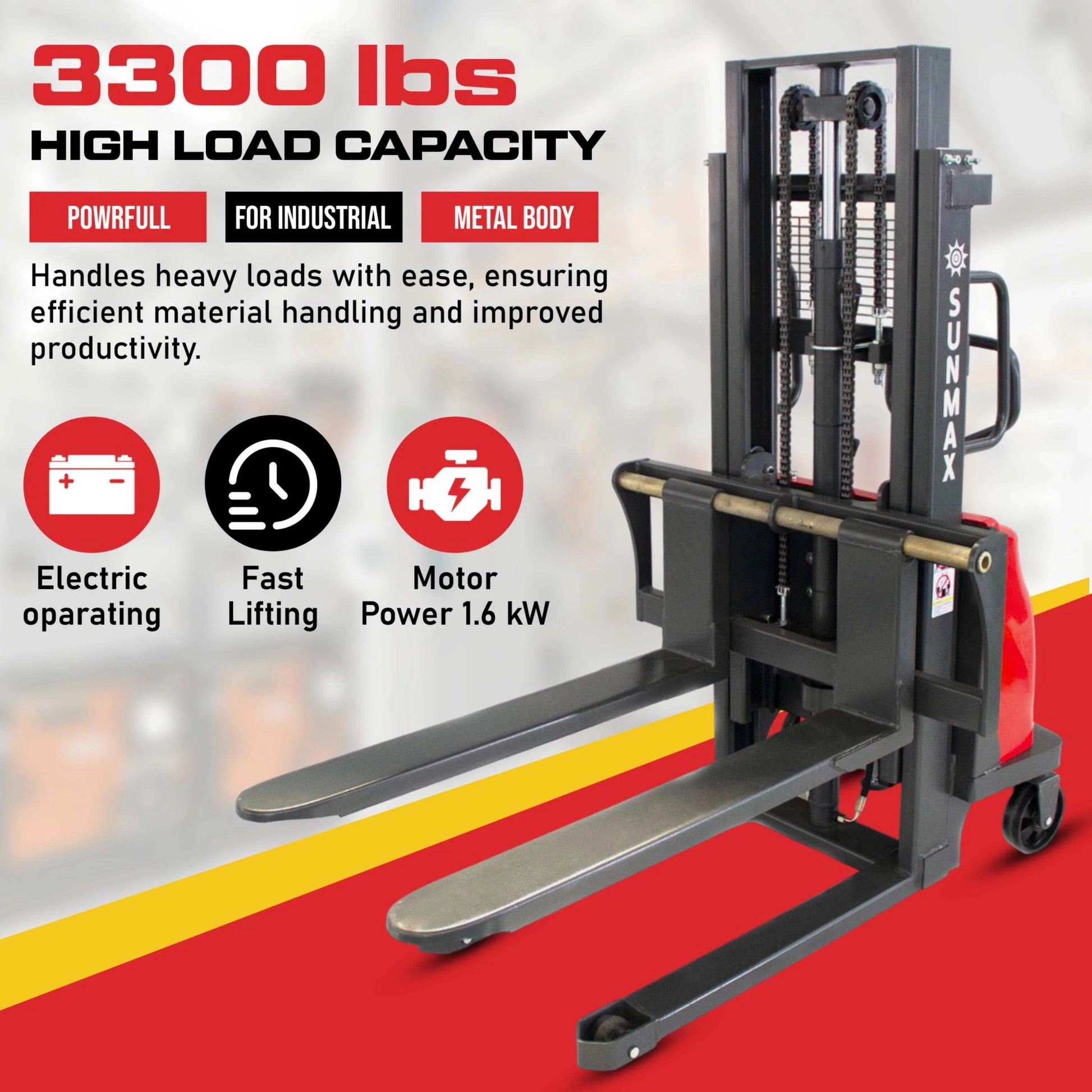

    • 3300 lbs (1500 kg) Capacity: Handles heavy loads with ease, ensuring efficient material handling and improved productivity.

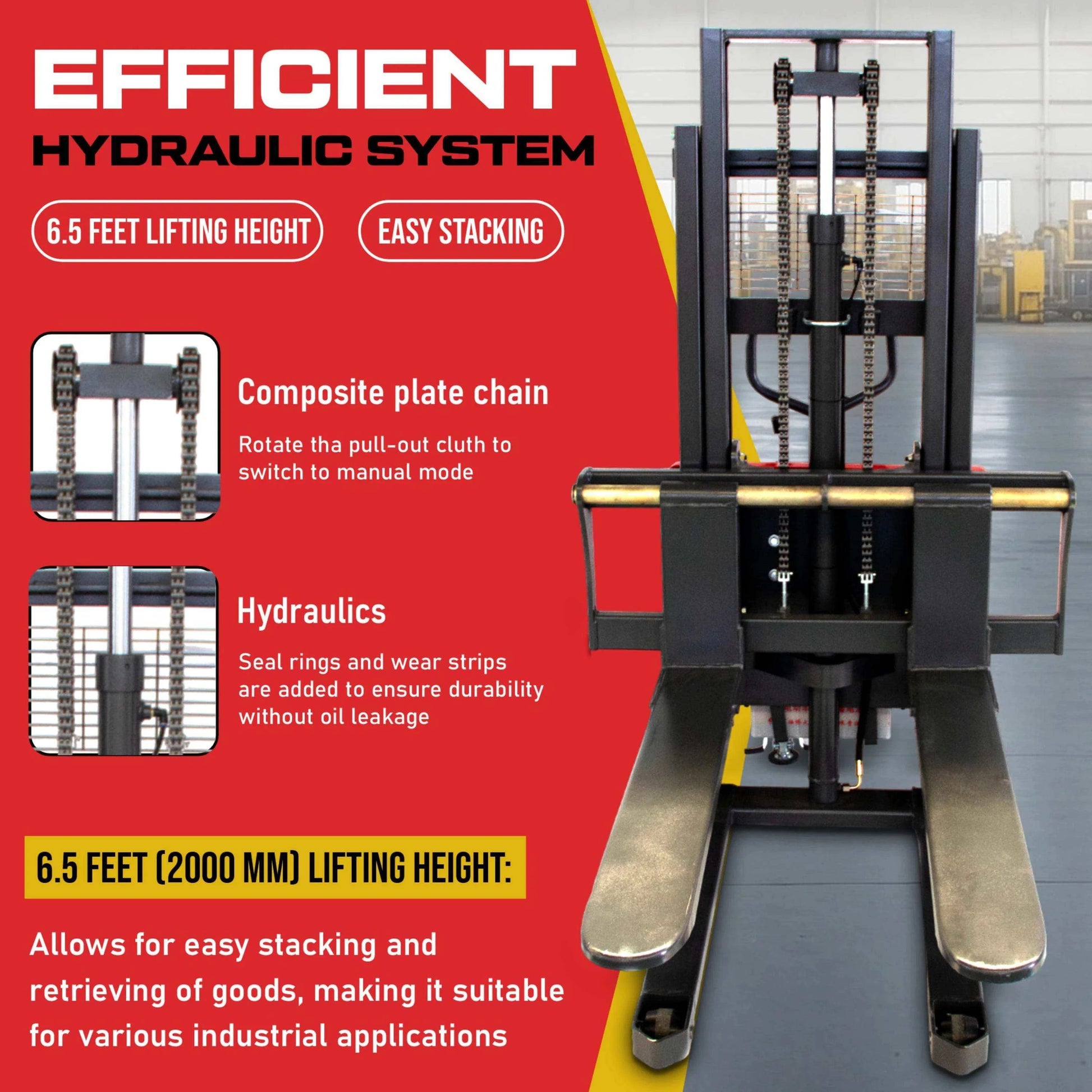

  2. Efficient Hydraulic System:
    • 6.5 feet (2000 mm) Lifting Height: Allows for easy stacking and retrieving of goods, making it suitable for various industrial applications.
  3. Durable and Reliable:

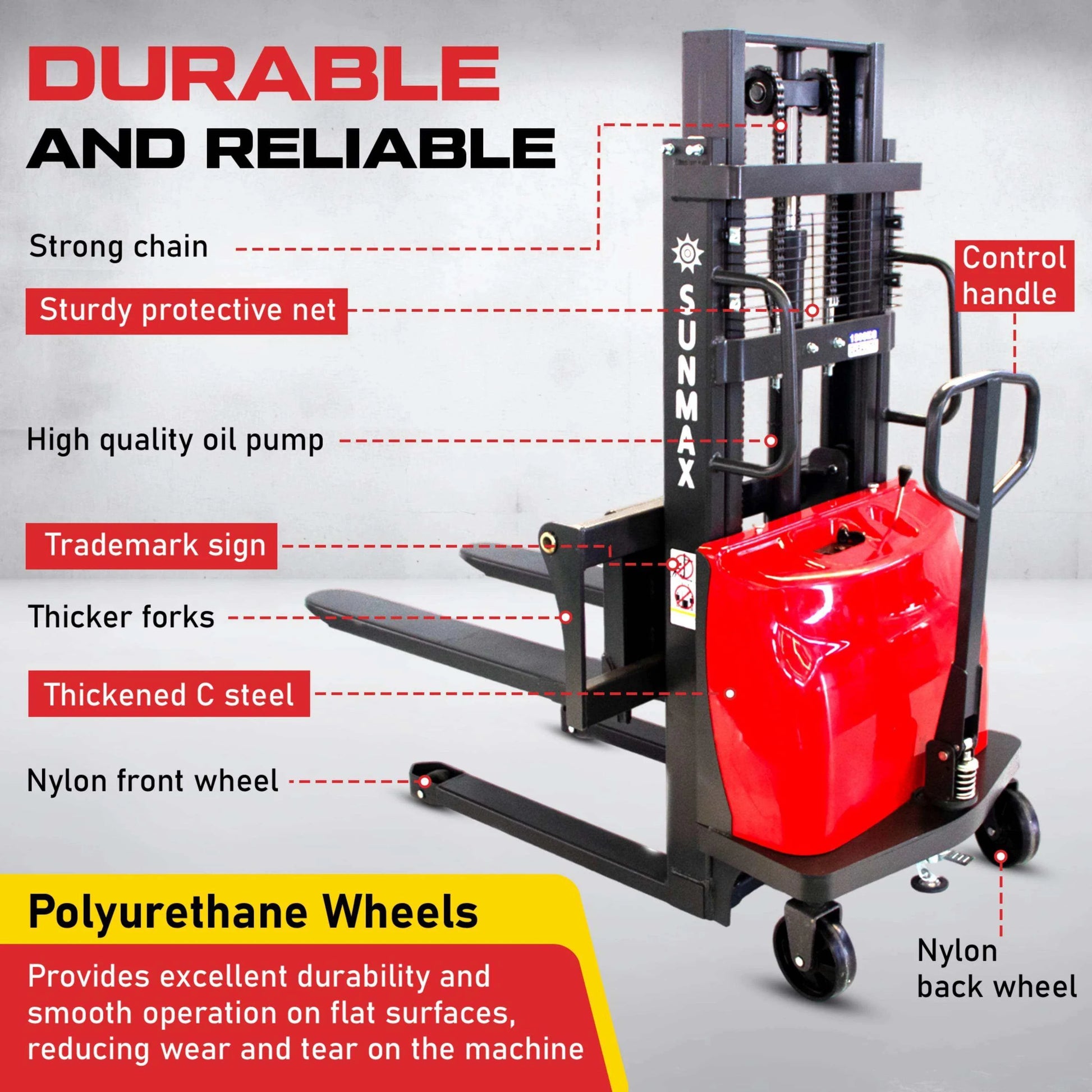

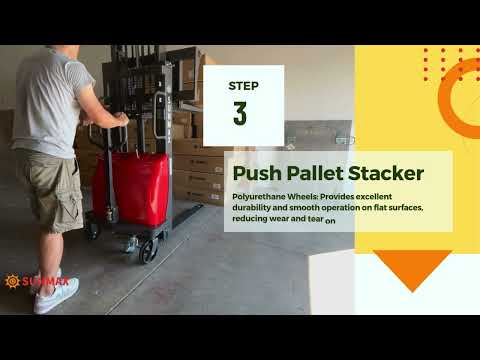

    • Polyurethane Wheels: Provides excellent durability and smooth operation on flat surfaces, reducing wear and tear on the machine.
  4. User-Friendly Design:

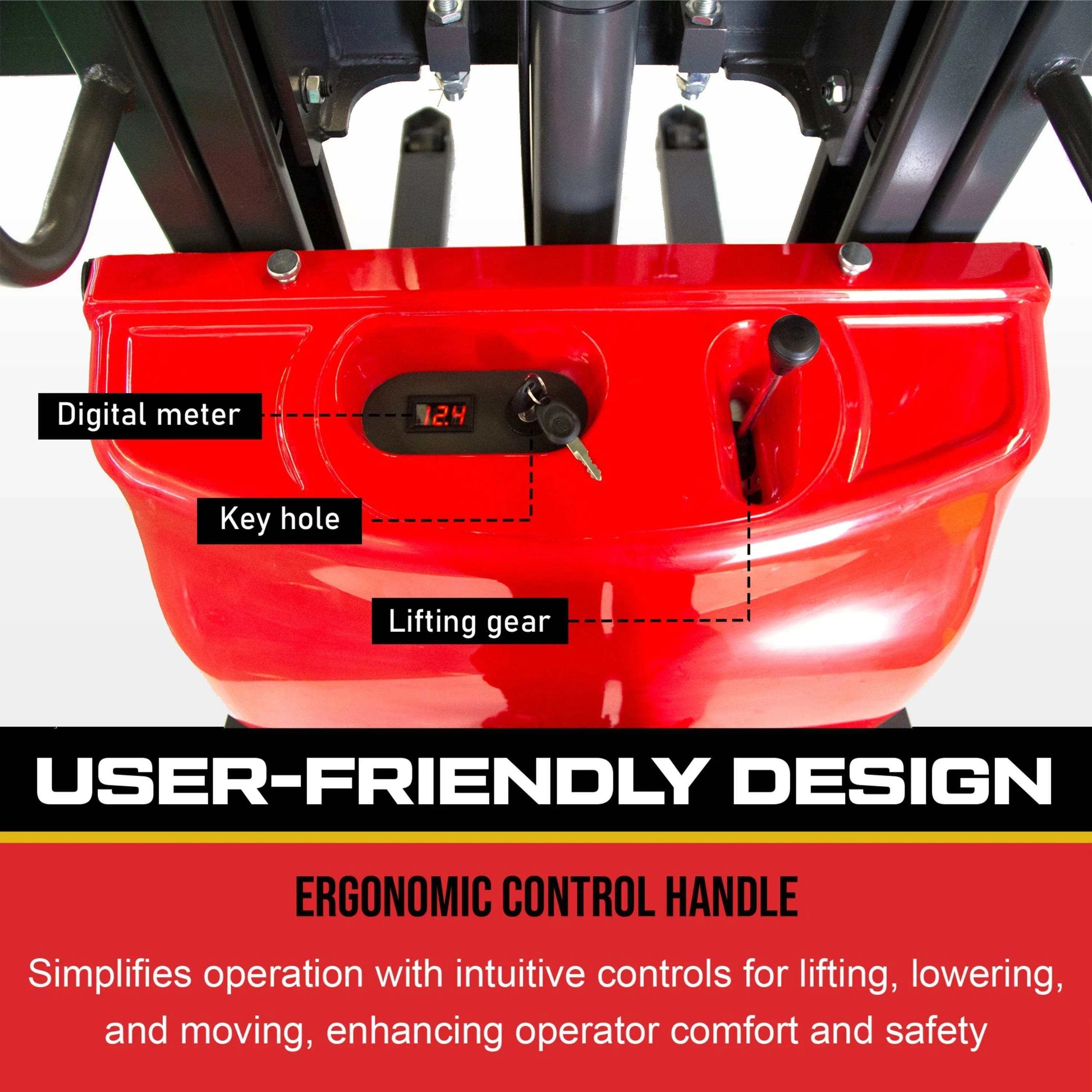

    • Ergonomic Control Handle: Simplifies operation with intuitive controls for lifting, lowering, and moving, enhancing operator comfort and safety.
  5. Enhanced Safety Features:

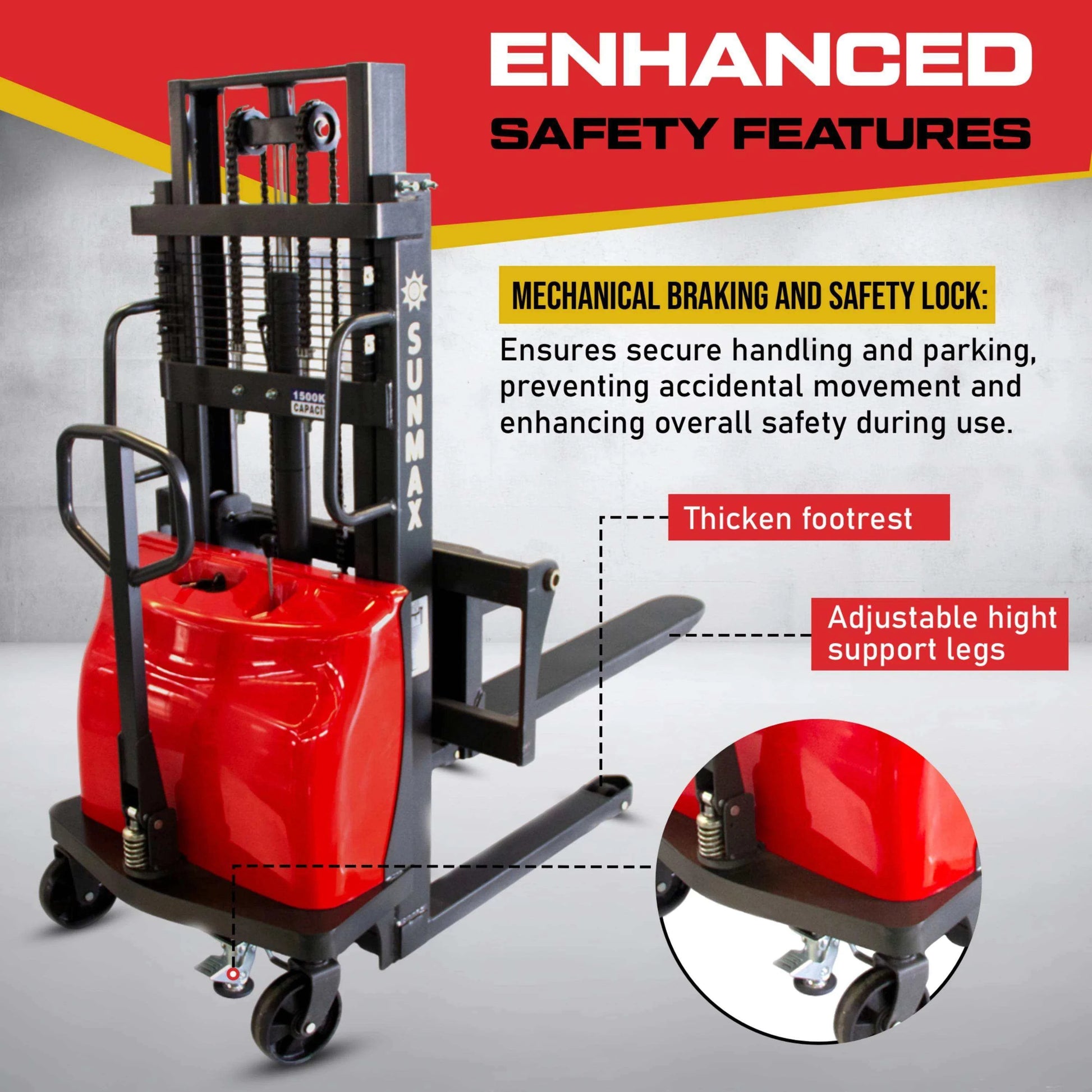

    • Mechanical Braking and Safety Lock: Ensures secure handling and parking, preventing accidental movement and enhancing overall safety during use.

Technical Specifications

  • Driving Mode: Electric (Battery)
  • Rated Load: 3306 lbs (1500 kg)
  • Load Center Distance: 19.7 inches (500 mm)
  • Axle Load (full load, front/rear): 1347/2907 lbs (611/1319 kg)
  • Axle Load (no load, front/rear): 717/231 lbs (325/105 kg)
  • Lifting Speed (full/no load): 0.26/0.33 ft/s (0.08/0.1 m/s)
  • Descending Speed (full/no load): 0.49/0.39 ft/s (0.15/0.12 m/s)
  • Service Braking: Mechanical Braking
  • Motor Power: 1.6 kW
  • Battery Voltage/Capacity: 12V/120Ah
  • Fork Length: 26.2 inches (665 mm)

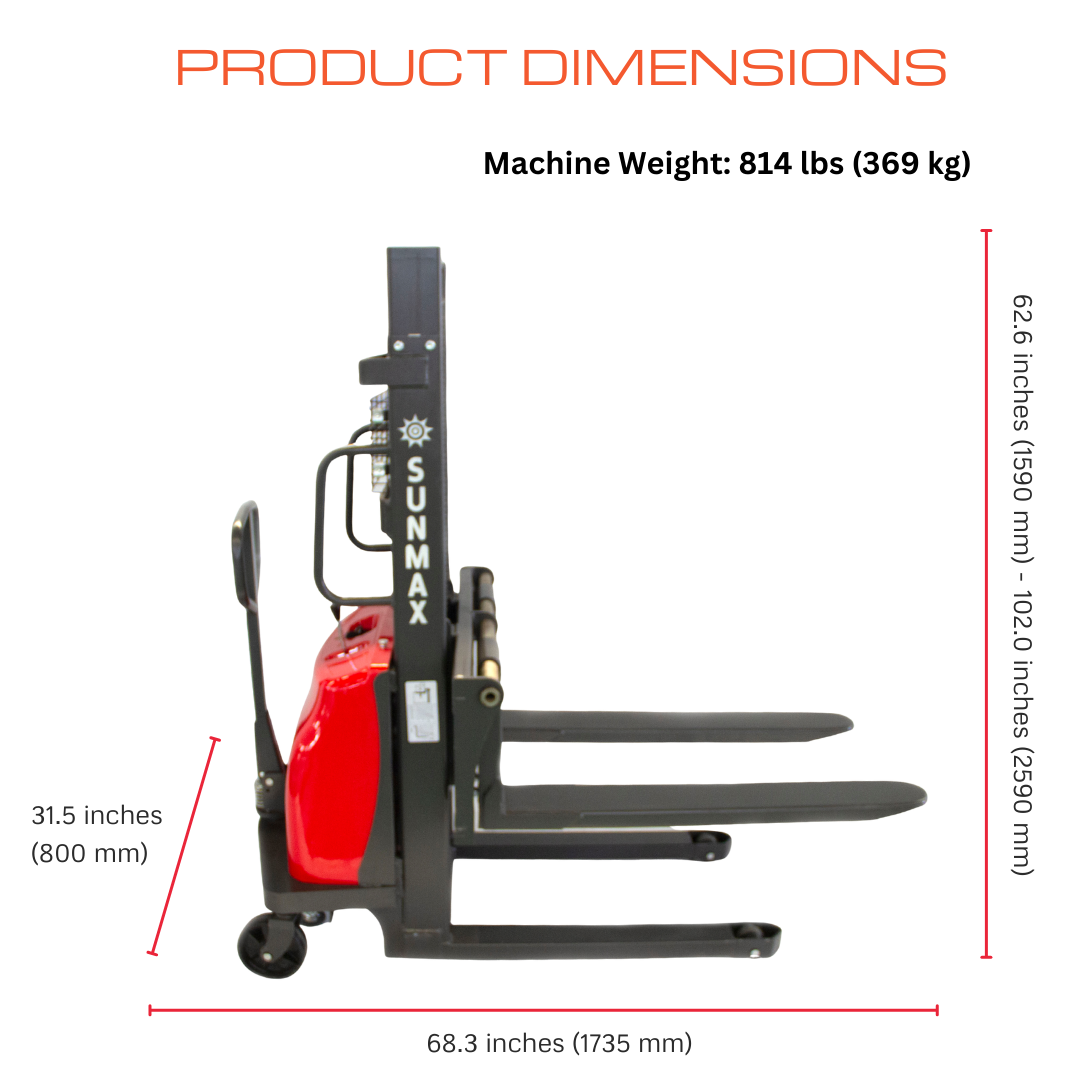

  • Body Width: 31.5 inches (800 mm)

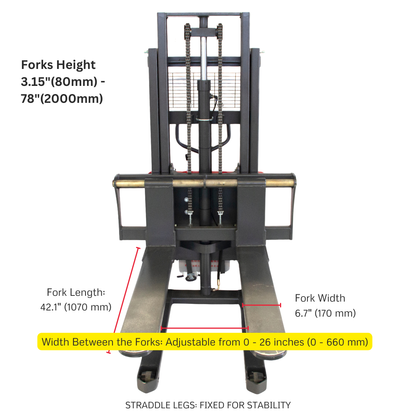

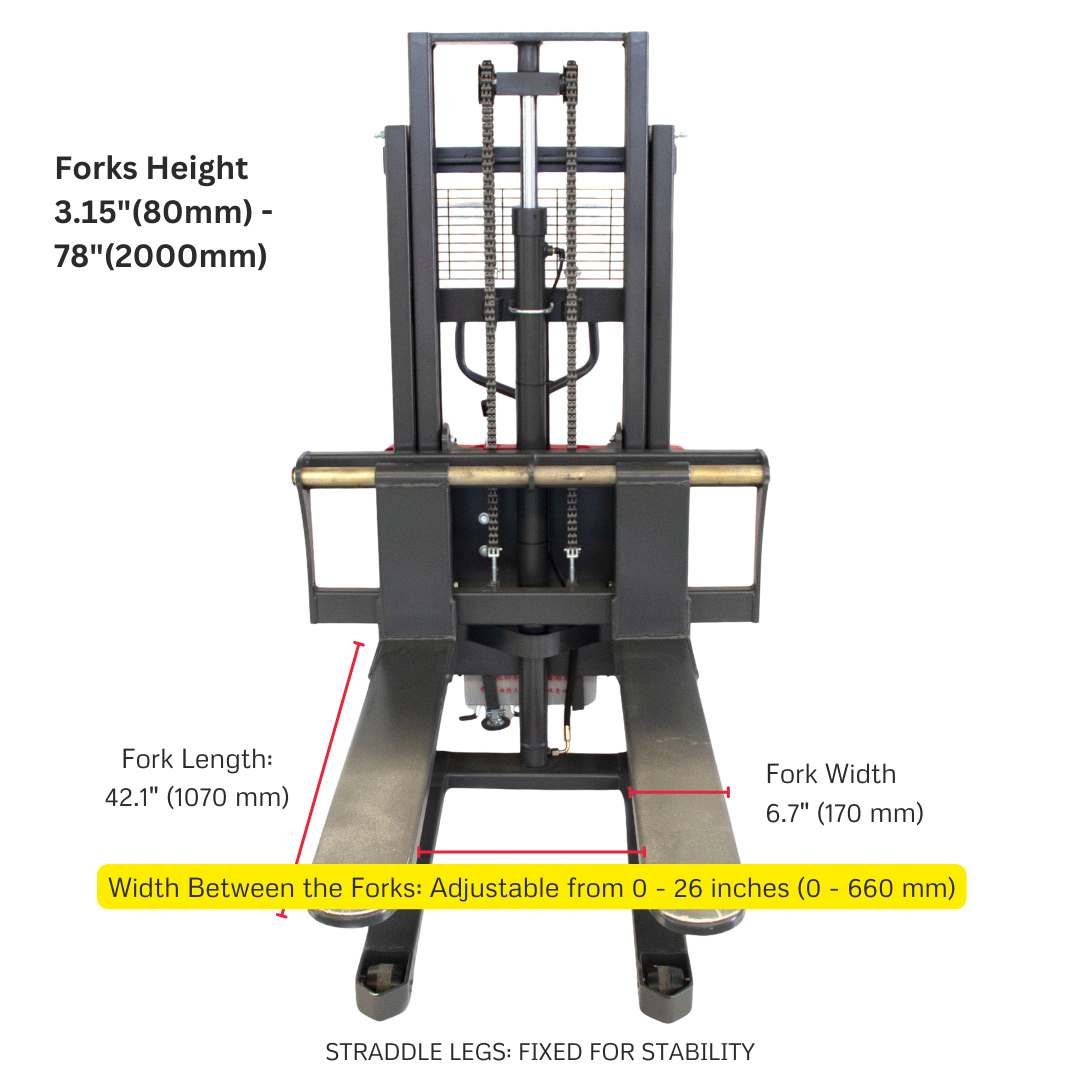

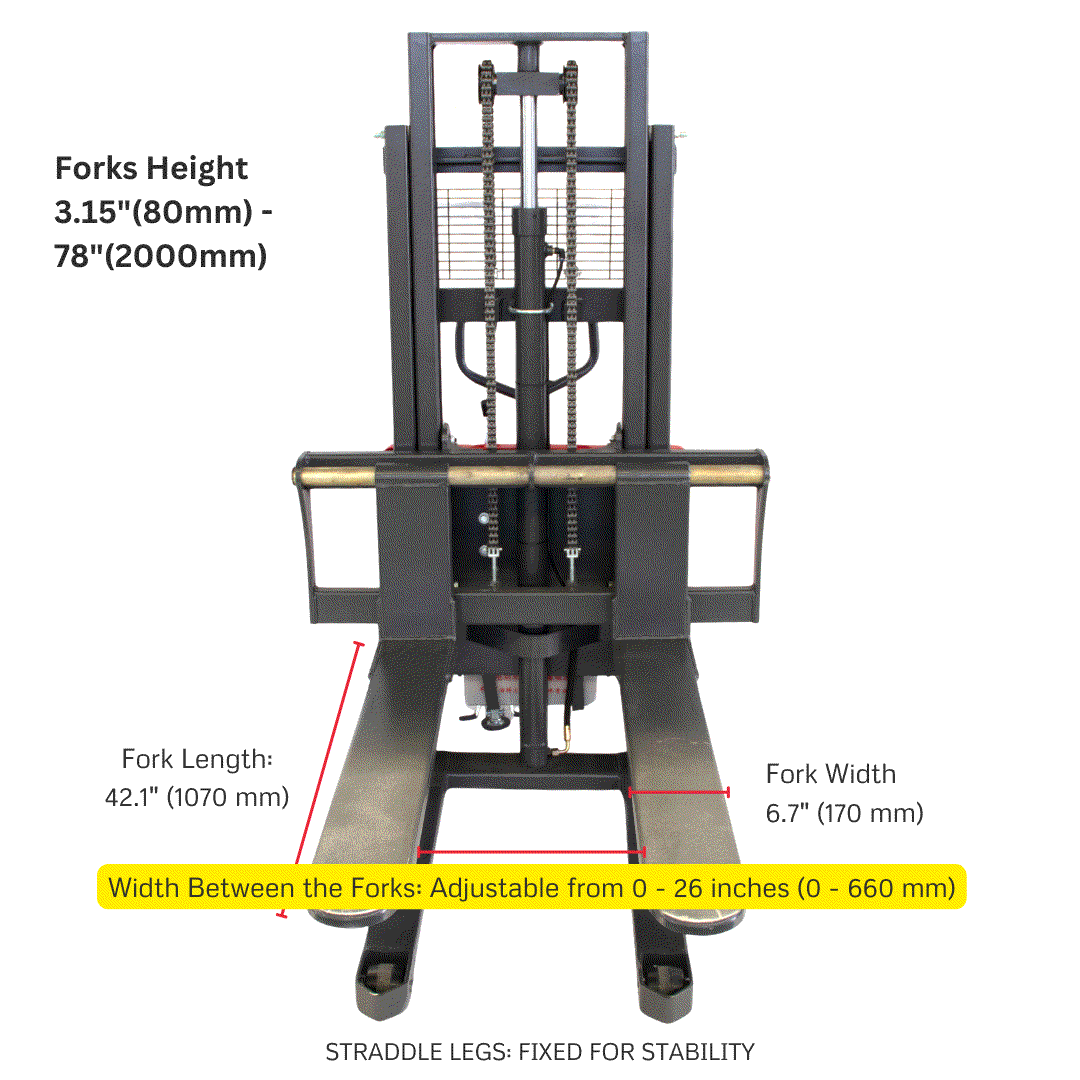

  • Fork Size: 2.4 x 6.7 x 42.1 inches (60 x 170 x 1070 mm)
  • Turning Radius: 56.1 inches (1425 mm)



Shipping Policy

Once the order is placed, you will receive the machine in 2-8 business days.

RETURN & REFUND POLICY

2 years Warranty (Sunmax will ship the non-wearable parts to clients in two years) 30 days free return.

Warranty: 2 years parts

2 years Warranty (Sunmax will ship the non-wearable parts to clients in two years)
