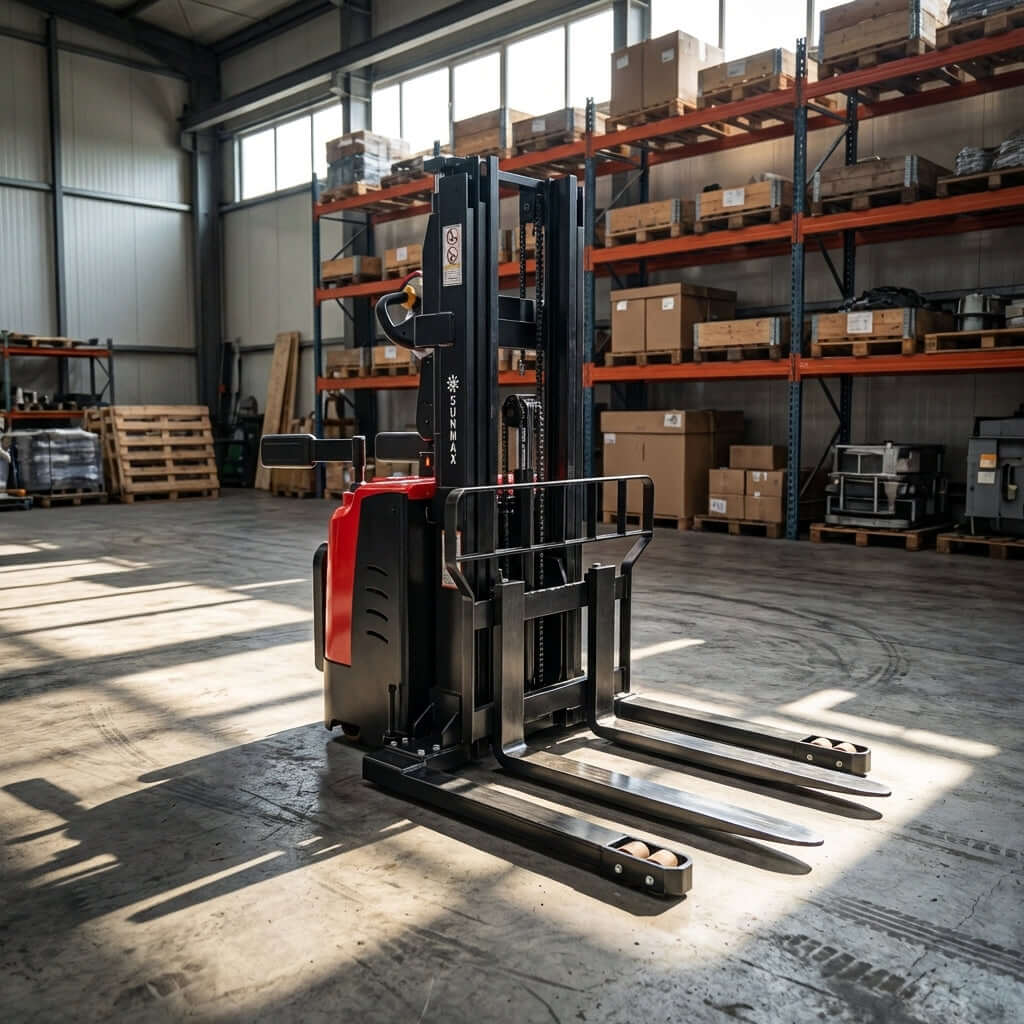

  • Close-up of fully electric pallet stacker in an industrial warehouse with high ceilings and large windows, emphasizing polished steel forks.
  • PS3300FEAS-3M Fully Electric Pallet Stacker
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • PS3300FEAS-3M Fully Electric Pallet Stacker – 3300 lb Capacity, 118” Lift Height, Adjustable Straddle Legs, Walk-Behind Warehouse Stacker
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
  • Electric Pallet Stacker 3300lb - 118" Lift, Straddle Legs
1 14

SUNMAX

PS3300FEAS-3M Full-Electric Straddle Pallet Stacker – 3,300 lb Capacity, 118" Lift, Adjustable Legs

PS3300FEAS-3M Full-Electric Straddle Pallet Stacker – 3,300 lb Capacity, 118" Lift, Adjustable Legs

3300 lb fully electric walk-behind stacker with 118" lift height and adjustable straddle legs for closed pallets, high stacking, and efficient indoor warehouse handling.

$5,399.00 USD
$5,999.00 USD $5,399.00 USD
Limited-time Sale
Free Shipping within the lower 48 states
✔️ Best for: warehouses, manufacturing plants, retail backrooms, export packaging areas, and indoor storage facilities
❌ Not ideal for: outdoor work, ramps, wet floors, loading docks, and personnel lifting
×

Talk to a Product Specialist

Please provide an accurate email address.
We have received your inquiry. Our team will contact you as soon as possible.
  • Free freight shipping to 48 contiguous states
  • Deliver in 3-8 business days
  • 2 year warranty

Lift, stack, and transport pallets safely up to 3 meters — without a forklift.

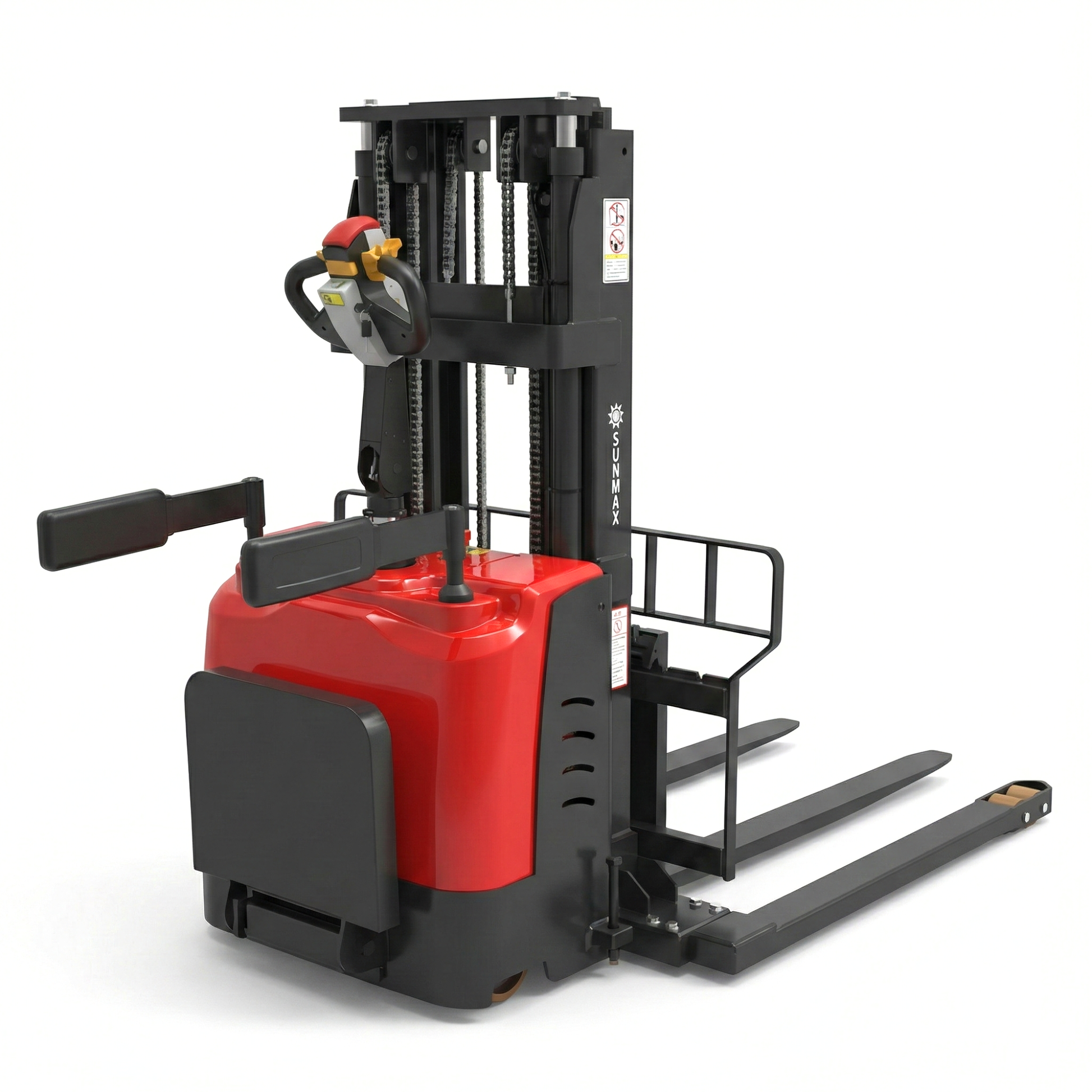

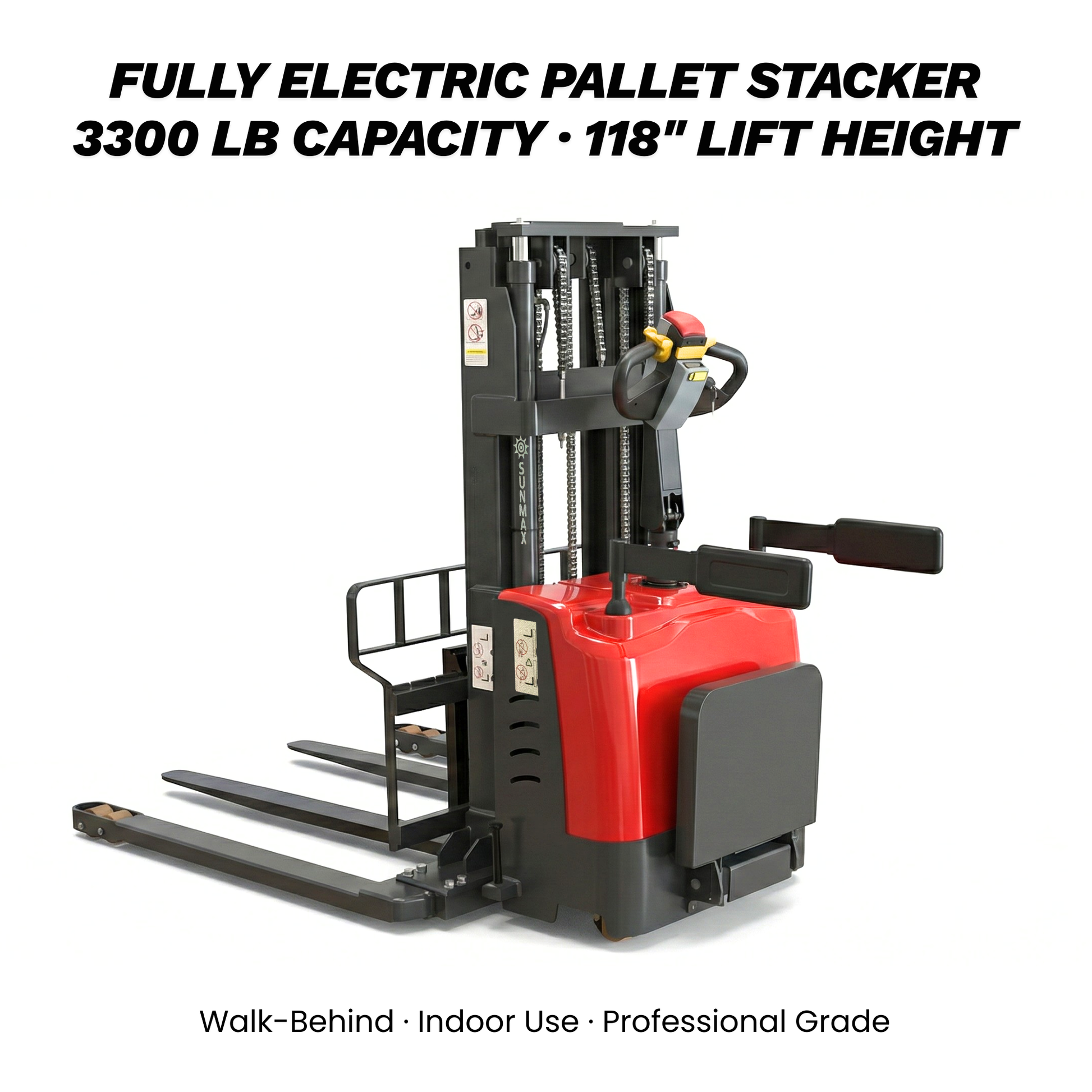

The SUNMAX PS3300FEAS-3M is a fully electric walk-behind pallet stacker with adjustable straddle legs, designed for indoor warehouses, manufacturing plants, and distribution facilities that require efficient vertical material handling in tight spaces.

Key Benefits

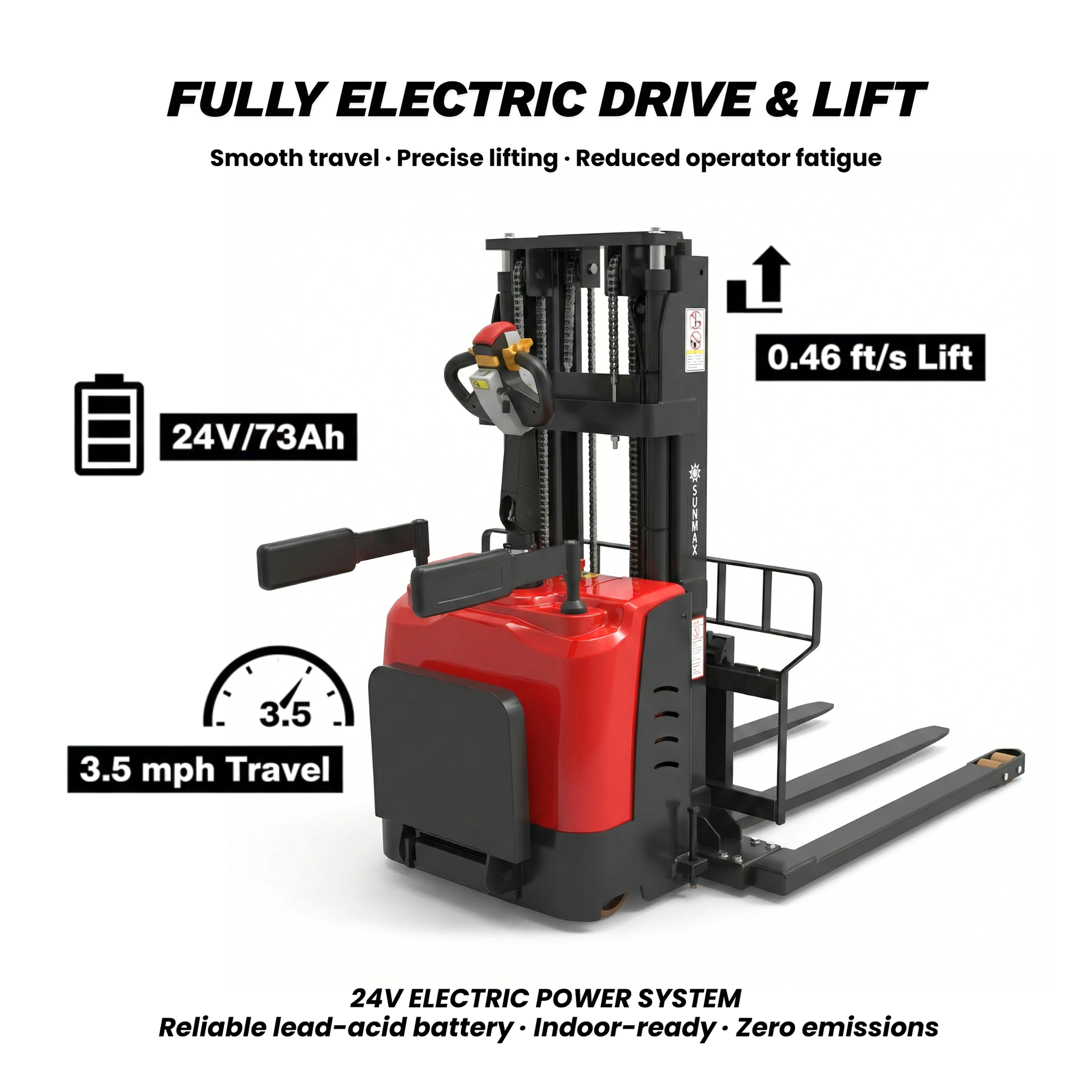

✅ Fully Electric Operation

Electric drive and electric lift reduce operator fatigue and improve productivity compared to manual or semi-electric stackers.

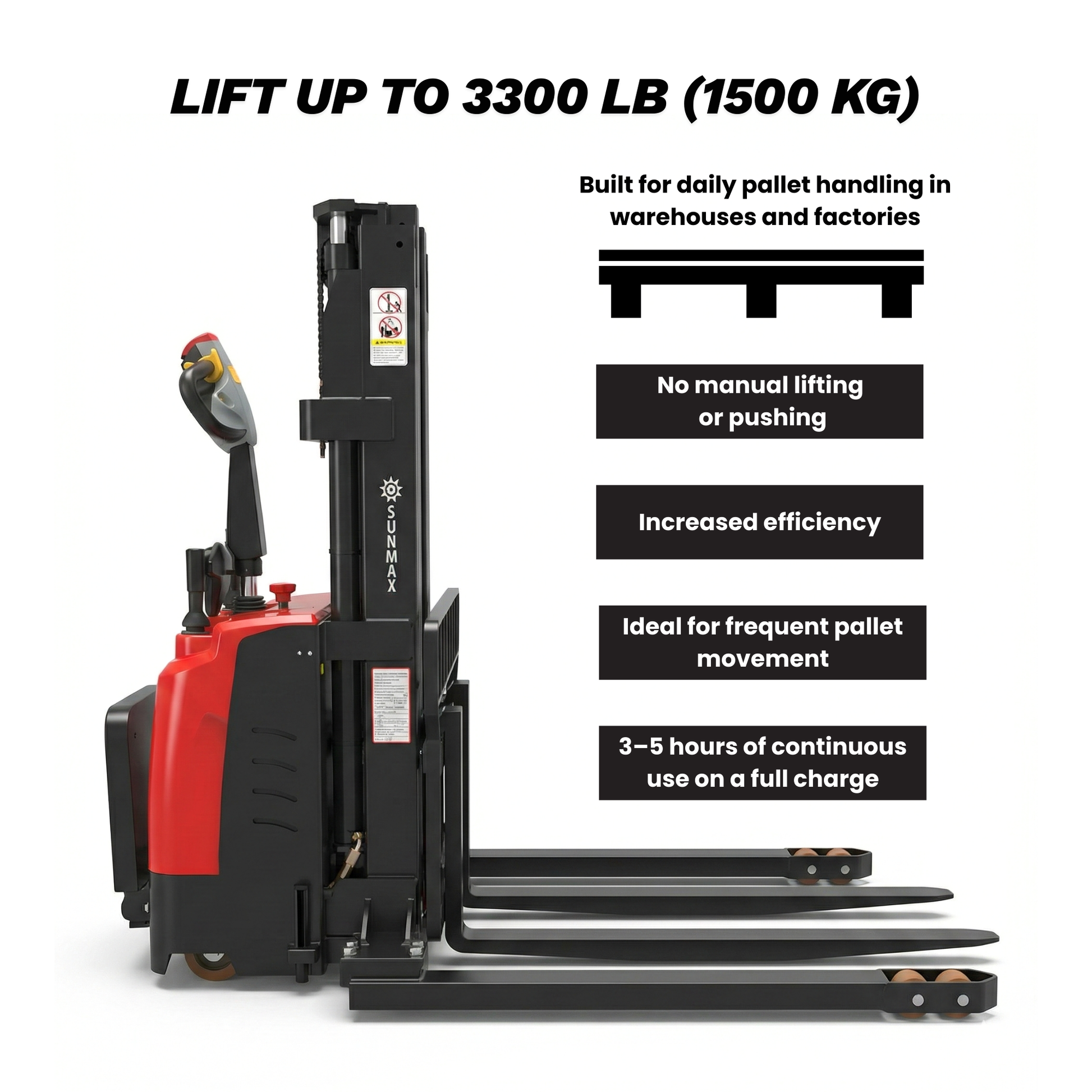

✅ 3300 lb (1500 kg) Load Capacity

Handles standard pallets, heavy cartons, and industrial loads with confidence.

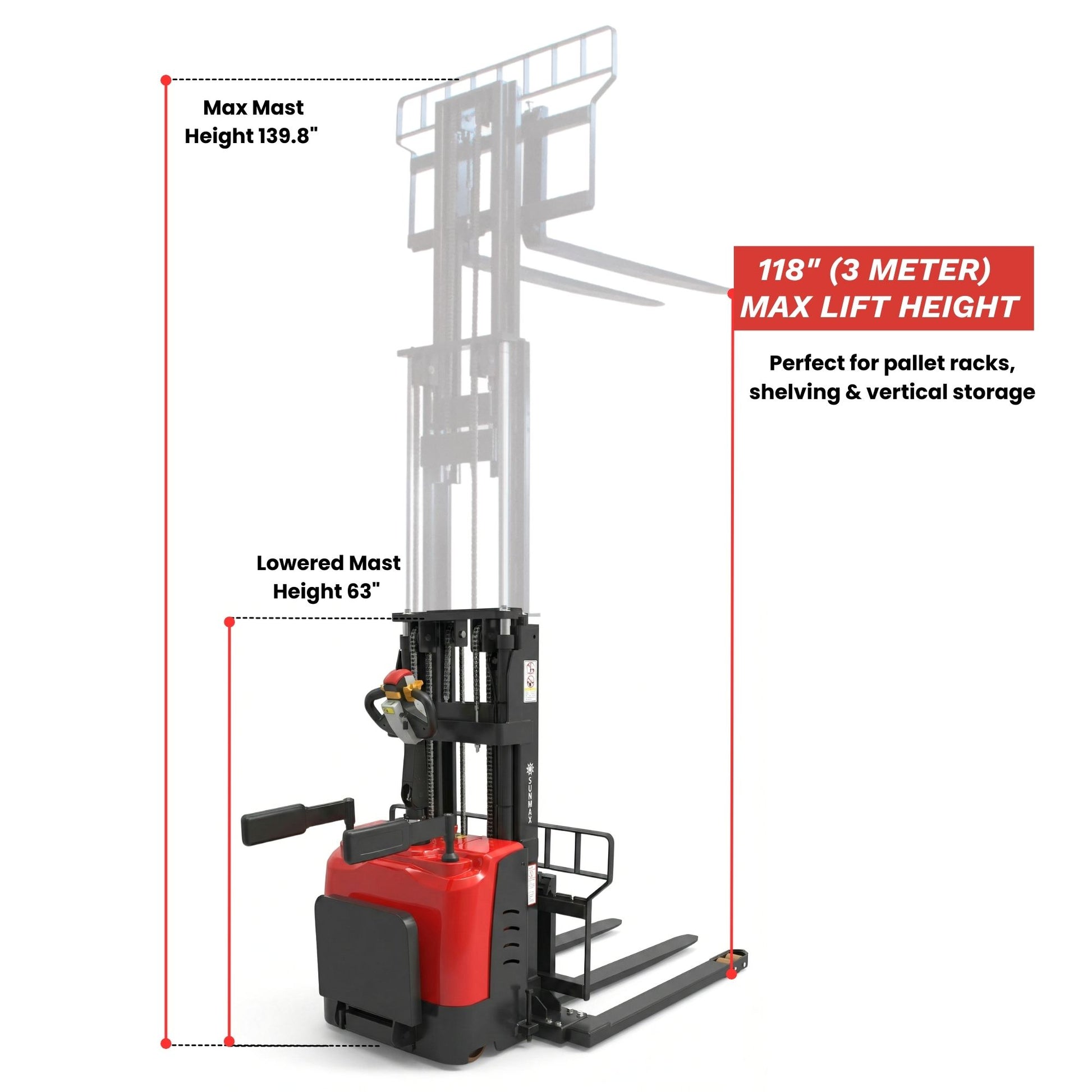

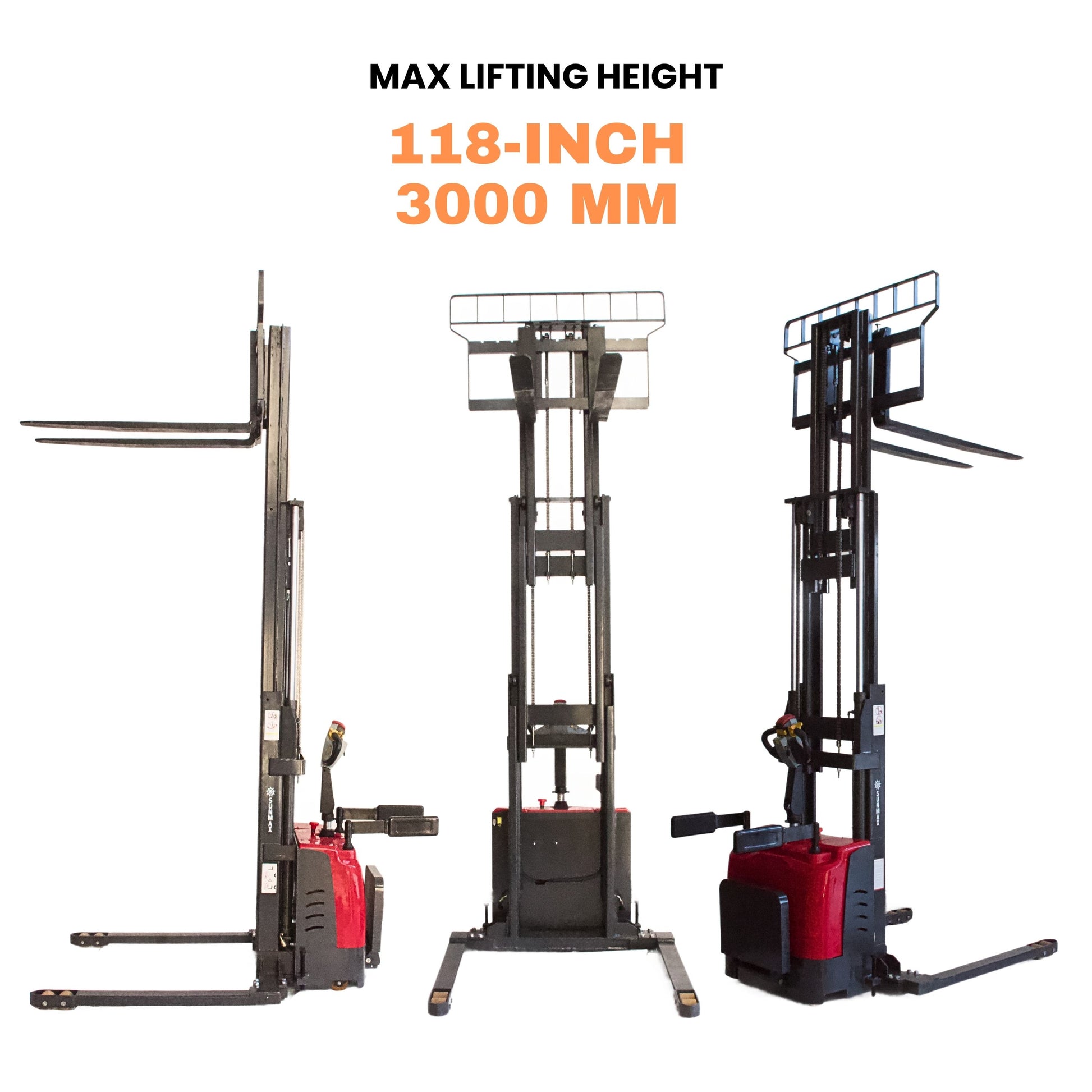

✅ 118" (3 m) Lift Height

Ideal for pallet racking, shelving, and vertical storage optimization.

✅ Adjustable Straddle Legs

Fork outer width adjustable from 13.8" to 39.4", compatible with closed pallets, oversized pallets, and non-standard pallet designs.

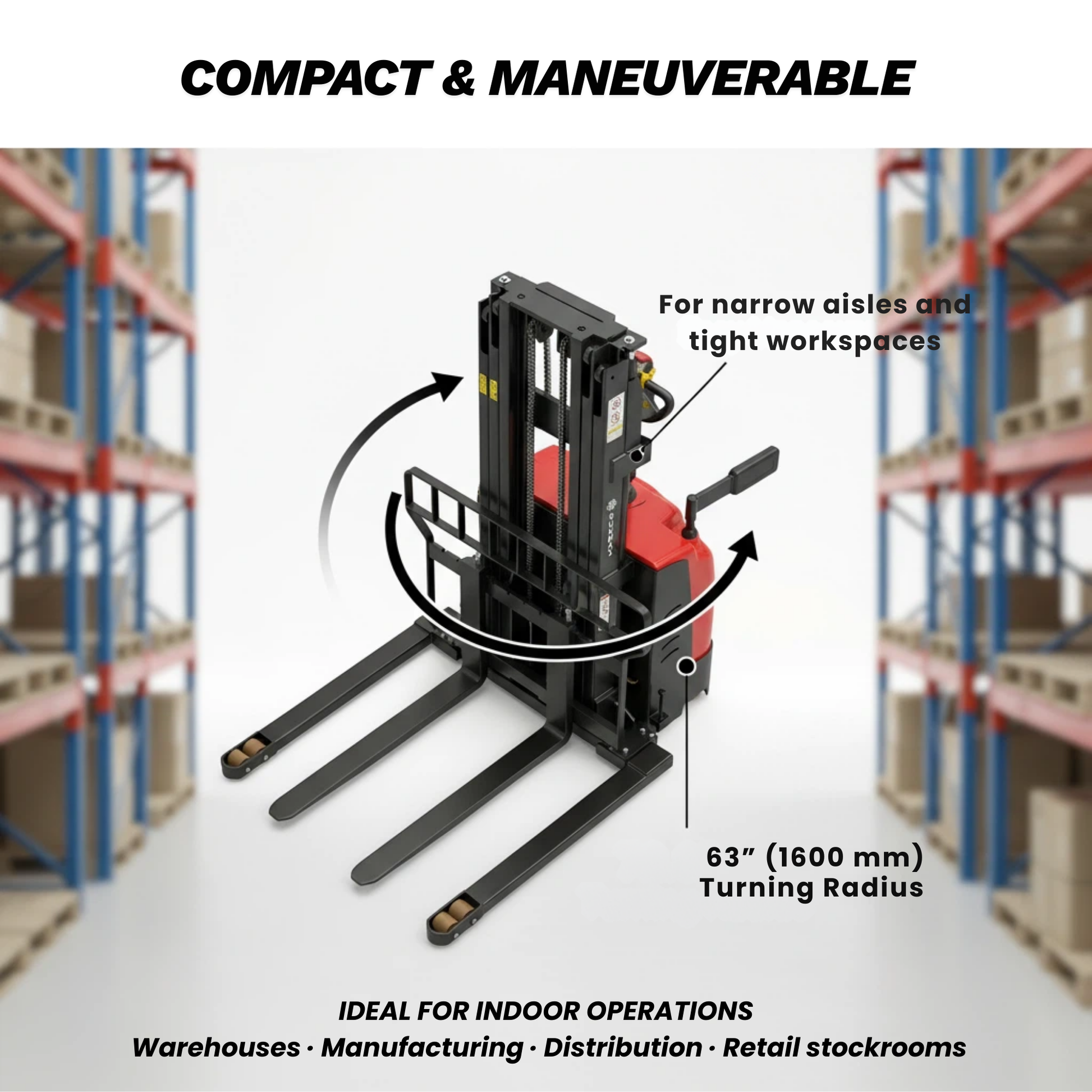

✅ Compact & Maneuverable

63" turning radius allows operation in narrow aisles and confined warehouse spaces where forklifts are impractical.

Applications

  • Warehouses & distribution centers
  • Manufacturing & assembly plants
  • Retail stockrooms & back-of-house operations
  • Packaging & export facilities
  • Light-to-medium duty indoor material handling

⚠ Indoor use only. Flat, dry surfaces required.

Specifications

General

  • Model: PS3300FEAS-3M
  • Drive Type: Fully Electric (Drive + Lift)
  • Operation Type: Walk-Behind

Load & Lift

  • Rated Capacity: 3307 lbs (1500 kg)
  • Load Center: 21.7" (500 mm)
  • Max Lift Height: 118.1" (3000 mm)
  • Fork Lowered Height: 2.0" (50 mm)

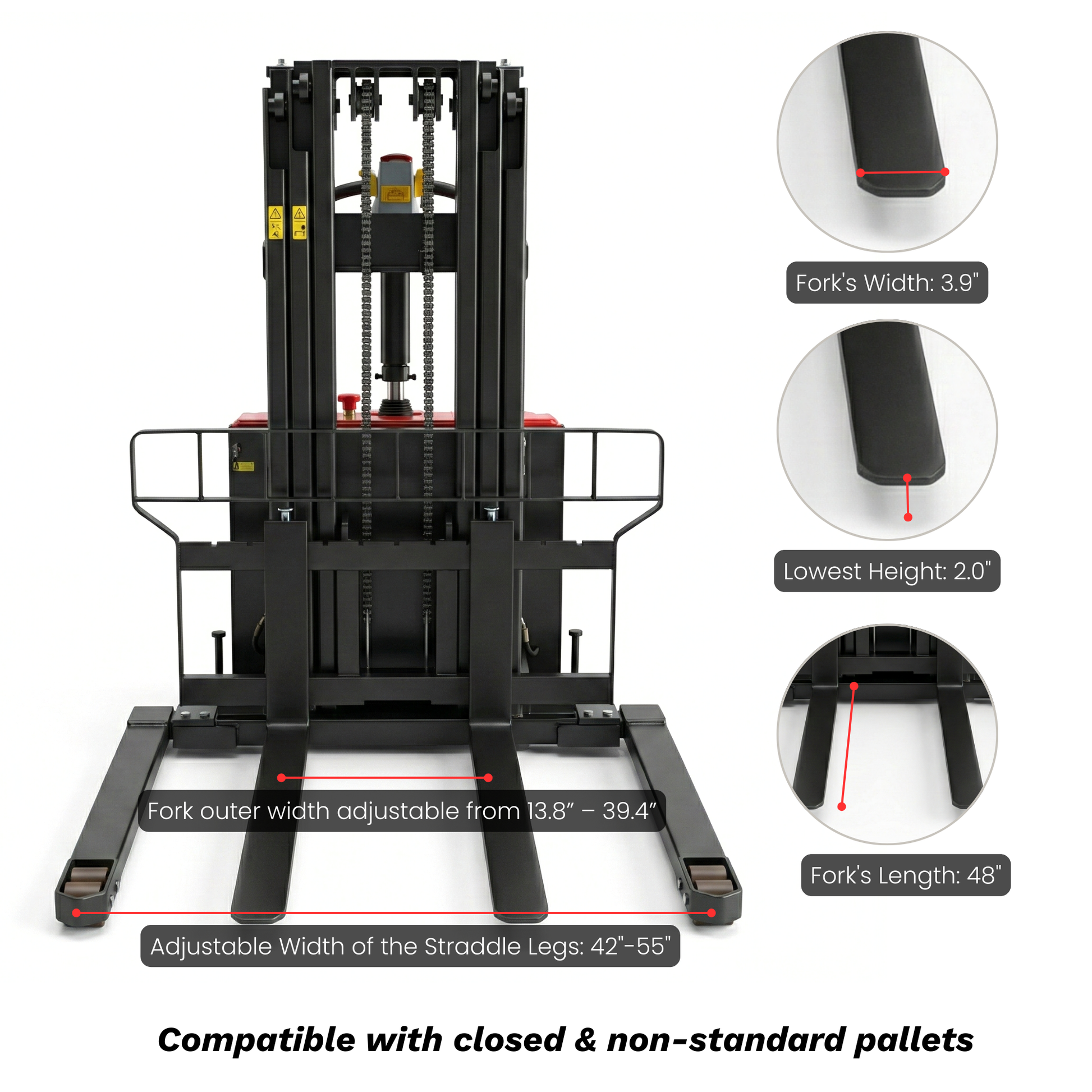

Forks & Legs

  • Fork Size: 48" × 3.9" × 1.4"
  • Fork Outer Width: Adjustable 13.8" – 39.4"
  • Leg Type: Adjustable Straddle Legs

Dimensions & Maneuverability

  • Overall Length: 63"
  • Body Width: 41.7" – 51.2" (adjustable)
  • Turning Radius: 63"
  • Aisle Width (800×1200 pallet): 82.7"

Performance

  • Travel Speed (No Load / Full Load): 3.1 / 1.9 mph
  • Lift Speed (Loaded): 0.41 ft/s
  • Gradeability: 5% loaded / 8% unloaded

Power System

  • Battery: 24V / 73Ah (Lead-Acid)
  • Drive Motor: 1.6 hp (1.2 kW)
  • Lift Motor: 3.0 hp (2.2 kW)
  • Brake Type: Electromagnetic

Weight

  • Machine Weight (with battery): 1748 lbs (793 kg)

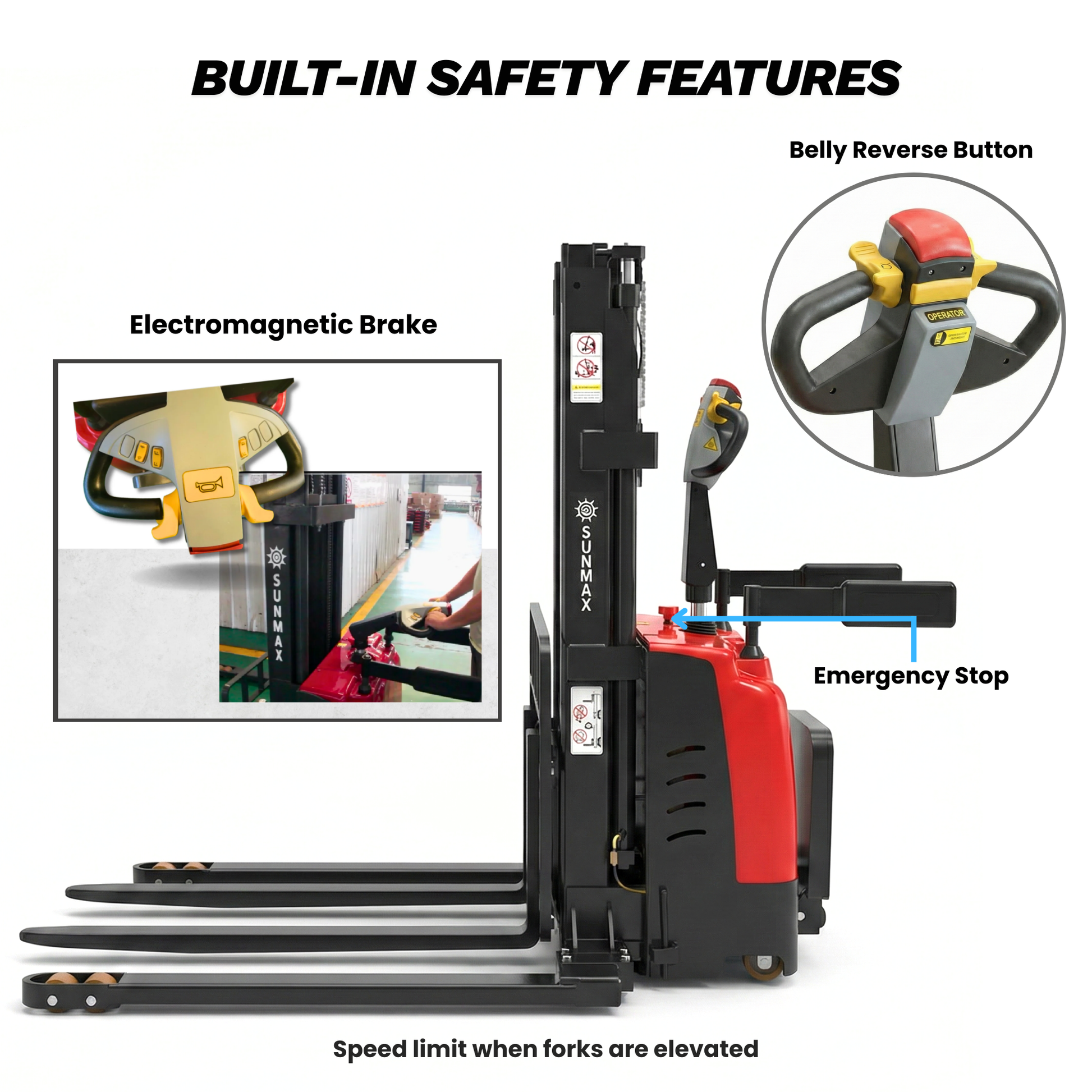

Safety & Control

  • Emergency stop switch
  • Electromagnetic fail-safe parking brake
  • Belly / emergency reverse button
  • Speed limit when forks are elevated
  • Key switch + password-protected smart handle
  • Horn and audible warning system
  • Protective mast grille

Designed for trained operators in professional environments.

Important Use Limitations

For safety and compliance, this stacker must NOT be used for:

  • Outdoor operation
  • Sloped surfaces or ramps
  • Loading docks or trailers
  • Transporting personnel
  • Uneven or wet floors

SUNMAX designs professional material-handling equipment focused on safety, efficiency, and cost-effective warehouse operations. The PS3300FEAS-3M offers forklift-like vertical reach in a compact, electric walk-behind format — ideal for businesses seeking productivity without the size or licensing requirements of forklifts.

FAQ

Q: Is this a forklift?
A: No. This is a walk-behind electric pallet stacker designed for indoor stacking and transport, not a ride-on forklift.

Q: Can it handle closed pallets?
A: Yes. The adjustable straddle legs allow compatibility with closed and non-standard pallets.

Q: Does it require a special license?
A: No forklift license is typically required, but operators must be trained.

Q: Can it be used outdoors?
A: No. This machine is designed strictly for indoor use on flat surfaces.

Because this item is heavy and bulky, minor shipping damage can sometimes be unavoidable; please contact us and we will send free replacement parts as needed.

Optimize your warehouse stacking — order the SUNMAX PS3300FEAS-3M today. For bulk pricing, replacement parts, or compatibility questions, contact our sales team.

View full details

FEATURES | SPECIFICATIONS | SERVICE | VIDEOS | Q&A | ACCESSORIES | REVIEWS

WHY CHOOSE PS3300FEAS-3M FOR INDOOR PALLET HANDLING

  • Fully Electric Productivity

    Electric drive and electric lift help reduce operator fatigue and improve daily throughput compared with manual or semi-electric stackers.

  • High-Lift Storage Efficiency

    Lift loads up to 118 inches to make better use of vertical storage space in pallet racking and shelving areas.

  • Better Pallet Compatibility

    Adjustable straddle legs help the stacker work with closed-bottom pallets, oversized pallets, and non-standard pallet layouts.

  • Compact Warehouse Maneuverability

    A walk-behind format and 63-inch turning radius help operators work in tighter spaces where larger forklifts may be impractical.

Designed for Indoor Stacking Efficiency

  • PS3300FEAS-3M Fully Electric Pallet Stacker

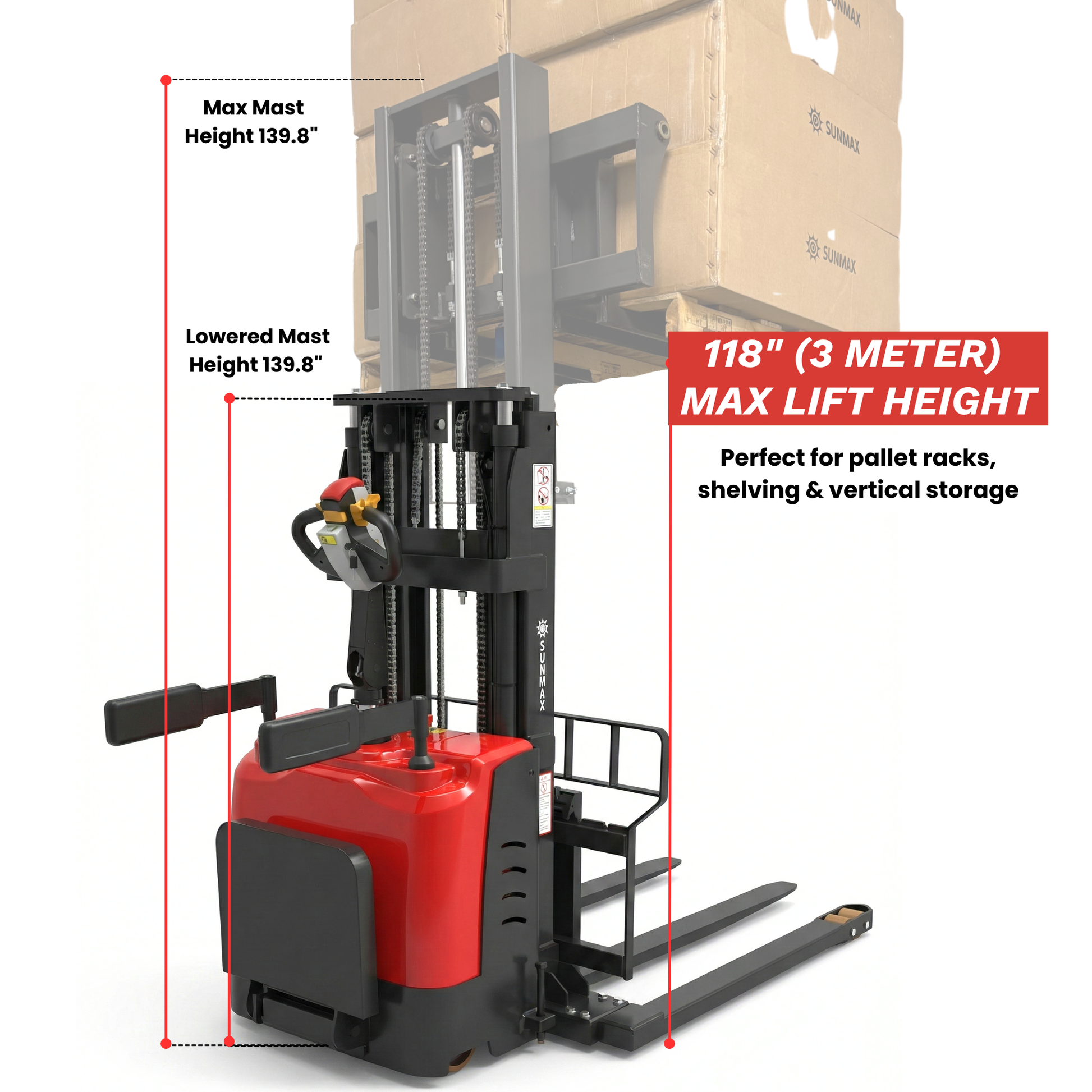

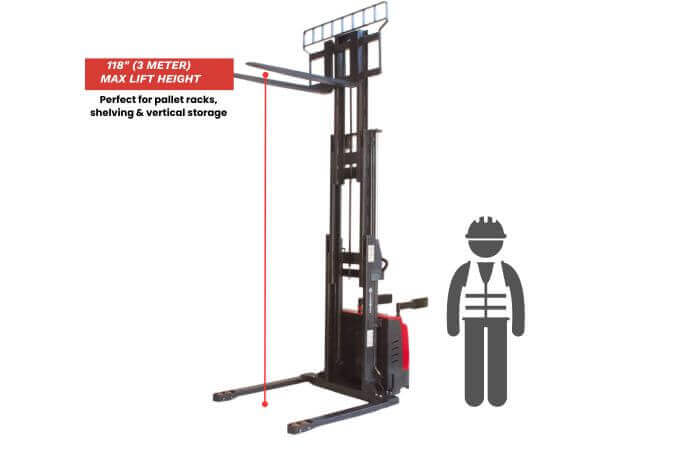

    Mast + raised pallet → 118" lift height

  • PS3300FEAS-3M Fully Electric Pallet Stacker

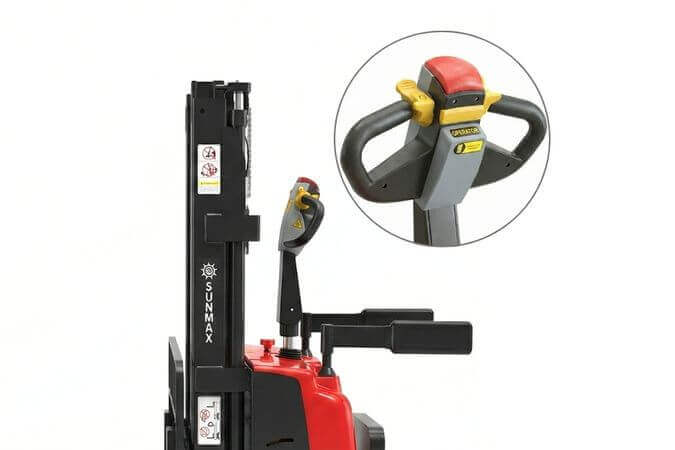

    Handle / tiller controls → fully electric operation

  • PS3300FEAS-3M Fully Electric Pallet Stacker

    Side view showing legs → adjustable straddle legs

  • PS3300FEAS-3M Fully Electric Pallet Stacker

    Aisle use image → compact walk-behind control

FULL SPECIFICATIONS

    • Rated capacity: 3307 lb
    • Lift height: 118.1"
    • Fork lowered height: 2.0"
    • Fork size: 48" × 3.9" × 1.4"
    • Fork outer width: 13.8"–39.4"
    • Turning radius: 63"
    • Aisle width: 82.7"
    • Travel speed: 3.1 / 1.9 mph
    • Gradeability: 5% loaded / 8% unloaded
    • Battery: 24V / 73Ah lead-acid
    • Weight: 1748 lb.

📁 User Manual for PS3300FEAS-3M Electric Pallet Stacker 353.6 kB

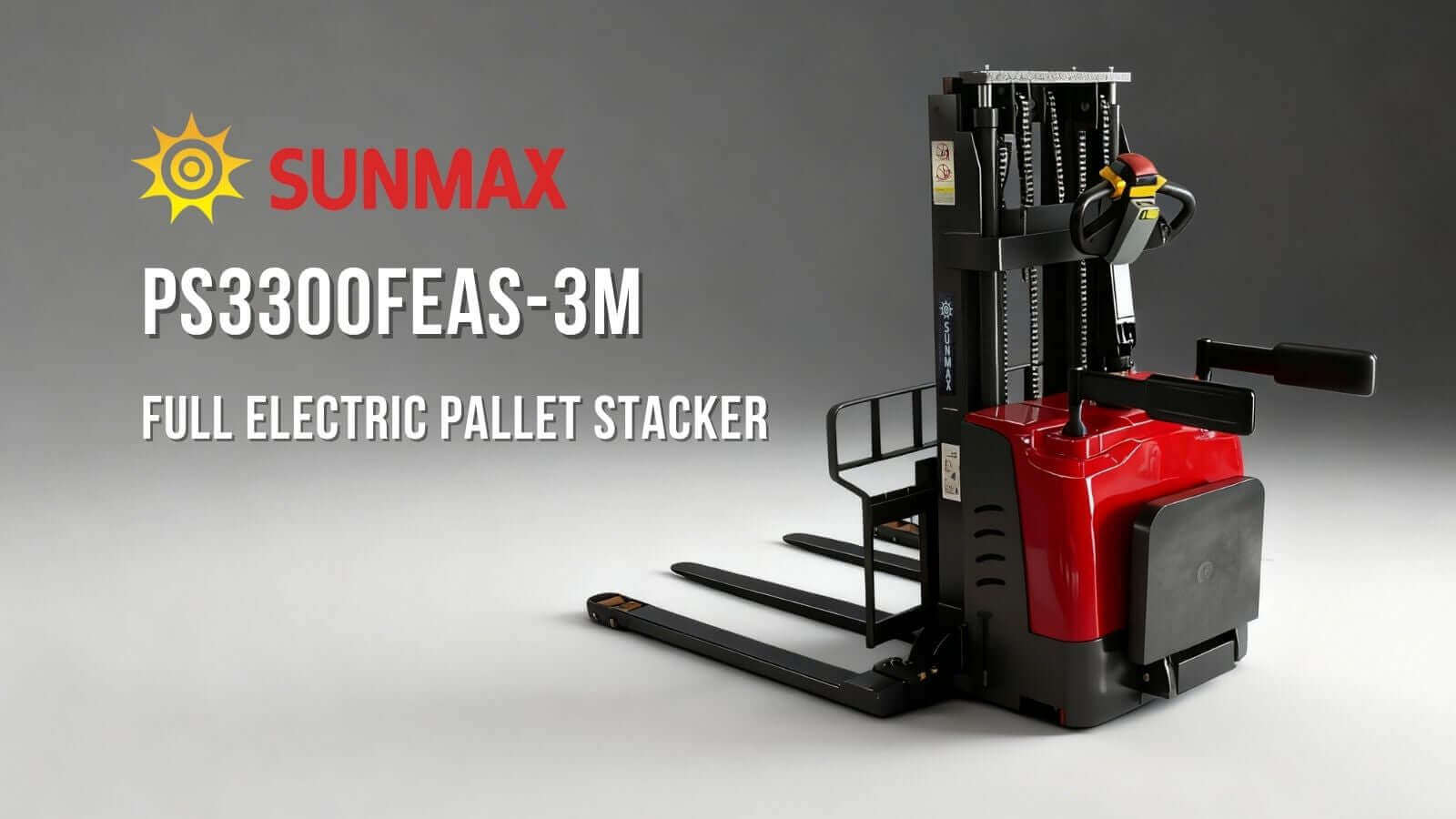

HOW TO USE PS3300FEAS-3M ELECTRIC PALLET STACKER

Buying Guide

Why Choose a Walk-Behind Electric Stacker Instead of a Forklift?

PS3300FEAS-3M is built for indoor pallet handling and stacking where you need electric efficiency and high lift capability, but not the size and complexity of a larger forklift solution.

Forklift

Better for larger-scale or heavier-duty handling

  • Larger footprint and generally less practical in tighter indoor layouts
  • Better suited to operations needing higher travel speed or heavier-duty handling
  • Often a stronger fit for larger sites with a broader forklift workflow
  • Can be more than some warehouses need for routine indoor stacking
  • May require a more complex equipment and safety management setup
PS3300FEAS-3M

Better for indoor stacking in compact warehouse spaces

  • Compact walk-behind format helps in tighter aisles and indoor work areas
  • Fully electric drive and lift reduce manual effort during regular handling tasks
  • 118-inch lift height supports high stacking without moving up to a larger forklift
  • Adjustable straddle legs improve compatibility with more pallet types
  • A practical fit for businesses that want stacking capability without oversized equipment

Choose PS3300FEAS-3M when you need compact indoor stacking performance, electric handling efficiency, and better pallet flexibility without committing to a larger forklift setup.

Power Comparison

Why Upgrade from Semi-Electric to Fully Electric?

PS3300FEAS-3M is designed for operations that move pallets regularly and want to reduce manual effort. Fully electric drive and lift make a noticeable difference when daily handling volume increases.

Compare
Fully Electric PS3300FEAS-3M
Typical Semi-Electric Stacker
Travel
Electric travel helps reduce pushing effort and supports easier pallet movement over the workday.
Often still relies on manual pushing or positioning, increasing operator effort.
Lift Operation
Electric lift and travel work together for a smoother, more consistent handling workflow.
May reduce lift effort but still leaves more manual handling in daily movement.
Operator Fatigue
Better suited to repetitive use where reducing physical strain matters.
Can become tiring in higher-frequency pallet handling routines.
Daily Productivity
A stronger choice for warehouses that need faster and more repeatable pallet handling.
Often better for lighter-duty or lower-frequency use.
Best Fit
Operations moving beyond basic pallet stacking and wanting more efficient indoor handling.
Sites with lighter workloads or more limited handling frequency.
Travel
Fully Electric PS3300FEAS-3M Electric travel helps reduce pushing effort and supports easier pallet movement over the workday.
Typical Semi-Electric Stacker Often still relies on manual pushing or positioning, increasing operator effort.
Lift Operation
Fully Electric PS3300FEAS-3M Electric lift and travel work together for a smoother, more consistent handling workflow.
Typical Semi-Electric Stacker May reduce lift effort but still leaves more manual handling in daily movement.
Operator Fatigue
Fully Electric PS3300FEAS-3M Better suited to repetitive use where reducing physical strain matters.
Typical Semi-Electric Stacker Can become tiring in higher-frequency pallet handling routines.
Daily Productivity
Fully Electric PS3300FEAS-3M A stronger choice for warehouses that need faster and more repeatable pallet handling.
Typical Semi-Electric Stacker Often better for lighter-duty or lower-frequency use.
Best Fit
Fully Electric PS3300FEAS-3M Operations moving beyond basic pallet stacking and wanting more efficient indoor handling.
Typical Semi-Electric Stacker Sites with lighter workloads or more limited handling frequency.

Choose PS3300FEAS-3M when your team needs less manual effort, more consistent workflow, and a more practical electric handling upgrade for daily indoor pallet movement.

Pallet Compatibility

Why Adjustable Straddle Legs Matter

PS3300FEAS-3M is built to handle more than just standard pallet layouts. Adjustable straddle legs help improve compatibility across different pallet types and load footprints.

Fixed-Leg Stacker

Works best when pallet dimensions stay consistent

  • Can be more limiting when pallet openings or widths vary
  • May be less practical for closed-bottom or non-standard pallets
  • Usually better when the warehouse uses one highly consistent pallet type
  • Less flexibility when operators handle mixed pallet formats
PS3300FEAS-3M

Built for broader pallet compatibility

  • Adjustable straddle legs help support closed pallets and non-standard designs
  • Outer fork width adjusts from 13.8 inches to 39.4 inches
  • More flexible for facilities handling mixed pallet footprints
  • Helps reduce the risk of choosing a stacker that only fits one pallet format

This feature is one of the biggest reasons to choose PS3300FEAS-3M if your warehouse handles more than standard open-bottom pallets.

BUY WITH MORE CONFIDENCE

  • freeshipping

    Free Freight Shipping

    Fast and free freight shipping to the lower 48 states.

  • sunmaxuswarranty

    2-year Manufacturer Warranty

    Replacement support for eligible non-wear parts during the stated warranty period.

  • ISO9001sunmaxus

    Professional Equipment Guidance

    Contact SUNMAX for fitment questions about pallet type, aisle space, and stacking needs.

FULLY ELECTRIC PALLET STACKER FAQ

Everything you need to know before choosing the right warehouse pallet stacker

1. Is this fully electric pallet stacker suitable for small warehouses or tight spaces?

▼
Yes, the SUNMAX PS3300FEAS Fully Electric Pallet Stacker is specifically designed for compact and medium-sized warehouse environments. With its walk-behind design and adjustable straddle legs, it easily navigates narrow aisles and confined storage areas where forklifts are impractical. Its 118” lift height allows efficient vertical storage without requiring large operational space, making it ideal for retail backrooms, workshops, and light industrial facilities.

2. How does this electric pallet stacker compare to manual or semi-electric models?

▼
A fully electric pallet stacker like this model eliminates manual lifting and pushing entirely. Unlike manual stackers, it uses electric drive and lift systems, reducing operator fatigue and improving productivity. Compared to semi-electric units, the SUNMAX model provides full motorized movement, which significantly increases efficiency when handling loads up to 3,300 lbs, especially in high-frequency warehouse operations.

3. What types of pallets are compatible with this stacker?

▼
This pallet stacker is designed to handle a wide range of pallet types thanks to its adjustable straddle legs. It works well with both standard and non-standard pallets, including closed-bottom pallets that traditional forklifts or fixed-leg stackers may struggle with. This flexibility is particularly valuable for warehouses handling diverse inventory formats.

4. Can this pallet stacker handle heavy-duty daily warehouse operations?

▼
Yes, it is built for consistent daily use in demanding environments. With a 3,300 lb load capacity and fully electric drive system, it supports frequent lifting and transport tasks without the physical strain associated with manual equipment. This makes it a reliable solution for distribution centers, manufacturing floors, and logistics hubs.

5. What makes this model more efficient than a traditional forklift?

▼
This stacker offers a more compact and cost-efficient alternative to forklifts. It requires less maintenance, no fuel, and significantly lower operating costs. Additionally, its smaller footprint allows operation in tighter aisles, while still achieving a high lift height of 118 inches. For many businesses, it delivers forklift-level functionality without the overhead.

6. Is it easy to operate for beginners or new warehouse staff?

▼
Yes, the walk-behind design and intuitive controls make it user-friendly even for operators with minimal experience. Unlike forklifts, it typically does not require extensive certification, allowing businesses to onboard new staff quickly while maintaining safe material handling practices.

7. How does this pallet stacker improve workplace safety?

▼
It improves safety by reducing manual lifting and minimizing operator fatigue. The controlled electric lifting and movement ensure smoother handling of heavy loads up to 3,300 lbs, lowering the risk of injuries and product damage. Its stable straddle-leg design also enhances load balance during operation.

8. What industries benefit most from this type of electric pallet stacker?

▼
This equipment is widely used in warehousing, retail distribution, manufacturing, and e-commerce fulfillment. Any business that needs efficient vertical storage and frequent pallet movement—especially in space-limited environments—will benefit from this fully electric pallet stacker.

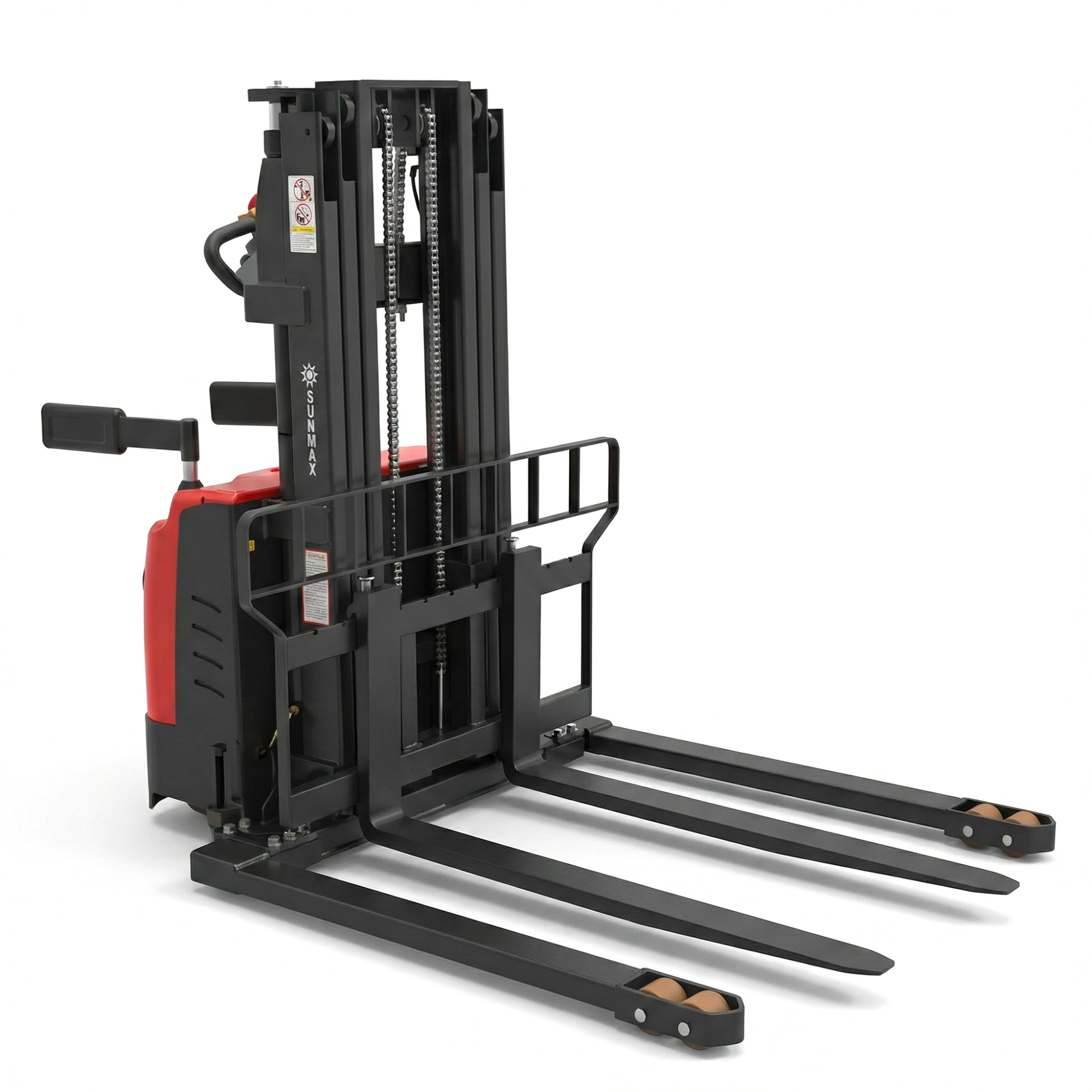

9. How does the adjustable straddle leg feature help in real operations?

▼
The adjustable straddle legs allow the stacker to accommodate different pallet widths and configurations. This versatility eliminates the need for multiple machines and ensures smooth operation across varying inventory types, improving workflow efficiency and reducing downtime.

10. Is this a cost-effective investment for growing businesses?

▼
Absolutely. It provides a strong balance between performance and affordability. By combining full electric functionality, a 3,300 lb capacity, and a 118” lift height, this pallet stacker reduces labor costs, increases productivity, and delays the need for more expensive forklift investments.

LET CUSTOMERS SPEAK FOR US
