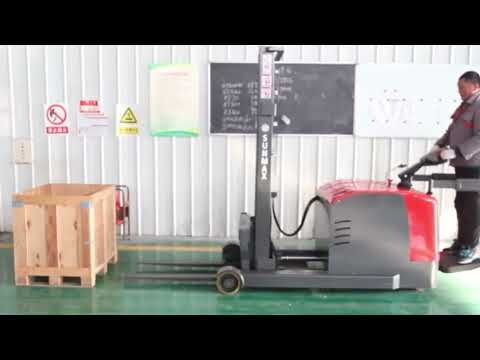

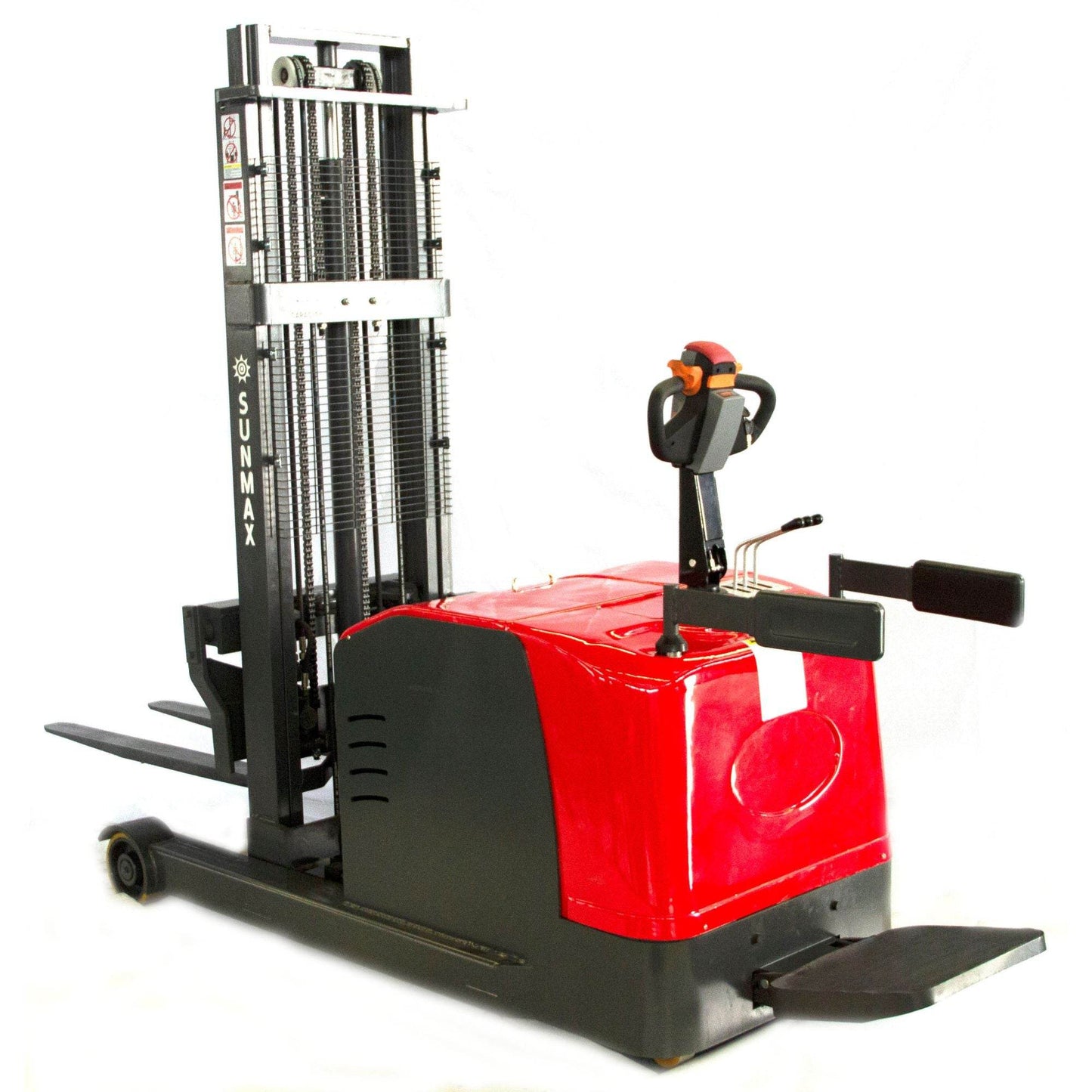

MRT4400-3M-19 Moving Mast Reach Stacker, 4400 lbs Load Capacity, 118" Lifting Height, Electromagnetic Brake

• Fast and Free freight shipping
• Deliver to 48 lower states in 3-10 business days
• 2 year warranty

SUNMAX MRT4400-3M-19 Moving Mast Reach Stacker is designed for high-performance and operator comfort. It can lift and transport loads up to 4,400 lbs (2,000 kg), the lift height is up to 118" (9.8 ft, 3 meters), perfect for warehouses, factories, distribution centers, and other material handling needs.

Common Applications:

• Warehouse Storage: Stacking and retrieving pallets in high rack systems.
• Cold Storage: Often used in temperature-controlled environments.
• Narrow Aisles: Ideal for maximizing storage capacity by reducing aisle width requirements.

Key Features

1. High Load Capacity and Reach:
   • 4400 lbs (2000 kg) Capacity: Handles heavy loads with ease, ensuring efficient material handling.
   • 118" (9.8 ft,3 meters) Lifting Height: Ideal for high stacking requirements in warehouses and factories.
2. Advanced Safety Features:
   • Emergency Stop Switch: Quickly halts all operations in an emergency, ensuring operator safety.
   • Electromagnetic Service Brake: Provides reliable stopping power, even on inclines, for added security.
3. Efficient and Powerful:
   • 2 hp Drive Motor & 3 hp Lifting Motor: Ensures smooth and powerful operation, allowing for quick and efficient material handling.
   • 24V/210Ah Battery: Offers extended operational time, minimizing downtime and increasing productivity.
4. User-Friendly Operation:
   • Ergonomic Control Handle: Simplifies operation with intuitive controls for lifting, lowering, and driving.
   • Smooth Maneuverability: Equipped with polyurethane wheels for smooth and stable movement on various surfaces.
5. Robust and Durable Construction:
   • High-Quality Components: Built with durable materials and high-quality components to withstand rigorous use.
   • Regular Maintenance Guidelines: Includes comprehensive maintenance instructions to ensure longevity and optimal performance.

Technical Specifications

• Drive mode: Electric (Rechargeable Battery Powered)
• Driving style: Standing
• Rated load: 4400 lb (2000 kg）
• Load center distance: 19.7 inches (500 mm)
• Forward distance: 19.7 inches (500 mm)

• Wheelbase: 63.39 inches (1610 mm)

• Self weight (with battery): 4246 lb (1926 kg)

• Wheel: Polyurethane

• Front Wheel Size: φ9.84*3.15 inches (φ250*80 mm)

• Rear Wheel Size: φ7.87*3.15 inches (φ200*80 mm)

• Additional Wheel Size: φ3.9*2.0 inches (φ100*50 mm)

• Rear Wheel Track: 38.78 inches (895 mm)

• Lifting Height: 118.11 inches (3000 mm)

• Height when the gantry is lowered: 82.28 inches (2090 mm)

• Maximum height of the vehicle during operation: 141.34 inches (3590 mm)

• Reduced Height: 1.97 inches (50 mm)

• Overall Length: 99.61 inches (2530 mm)

• Body Width: 39.37 inches (1000 mm）

• Fork Size: 3.94/1.38/42.13 inches (100/35/1070 mm）

• Outer Fork Width: 7.87- 26.77 inches (200-680 mm)

• Minimum Ground Clearance: 1.97 inches (50 mm)

• Channel Width (1000*1200 mm tray): 102.36 inches (2600 mm)

• Channel Width (800*1200 mm tray): 101.57 inches (2580 mm)

• Turning Radius: 74.8 inches (1900 mm)

• Driving Speed (Full Load/No Load): 2.8/3.2 mph (4.5/5.2 km/h)

• Increase Speed (Full Load/No Load): 0.28/0.36 ft/s (0.085/0.11 m/s)

• Falling Speed (Full Load/No Load): 0.39/0.26 ft/s (0.12/0.08 (Adjustable)m/s）

• Climbing Ability (Full Load/No Load): 5% / 8%

• Service Brake: Regenerative braking

• Drive Motor Power: 2 HP (1.5 kw(AC)）

• Increase Motor Power: 3 HP (2.2 kw)

• Battery: 24V 210Ah

• Battery Weight: 330.69-396.83 lb (150-180kg)

• Steering Mode: Mechanical Steering

• Noise Level According to DIN12053: ≤70 dB(A)

Attention: This is standard pallet stackers and should NOT be used on a sloped driveway; they are designed for flat, level surfaces and can be dangerous to use on inclines. Operating a pallet stacker on a slope risks tipping, loss of control, or damage due to insufficient braking, uneven surfaces, and improper load distribution. For sloped areas, specialized equipment like all-terrain pallet jacks or forklift with strong frames and large wheels are a safer option.
