- Free freight shipping to 48 lower states
- Deliver in 3-8 business days
- Warranty: 2 year full / 3 year powertrain / 5 year battery

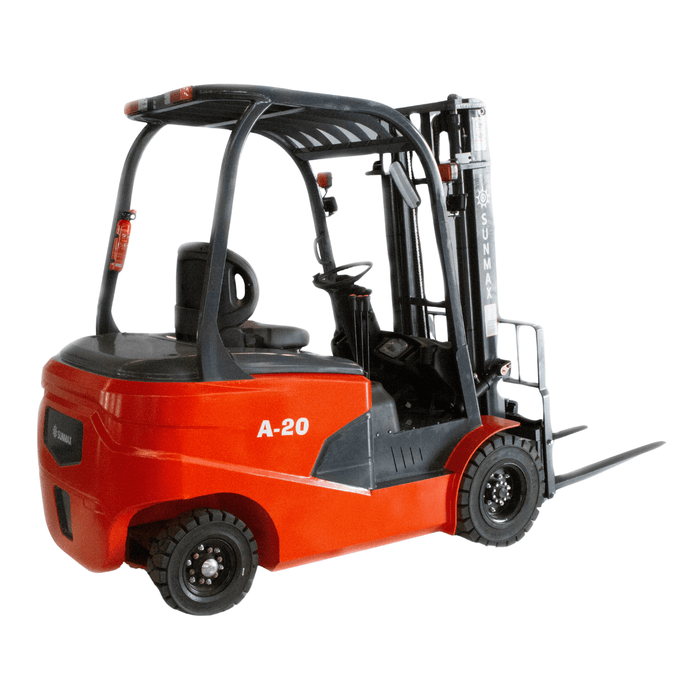

SUNMAX A-20 Electric Forklift is designed for efficient material handling in warehouses, distribution centers, and industrial environments. With a robust lifting capacity of 4,400 lbs and a maximum lift height of 118 inches, it offers exceptional performance, maneuverability, and operator comfort. Powered by an efficient AC motor system and equipped with hydraulic power steering, the A-20 is an ideal solution for mid-sized to heavy-duty indoor applications.
Key Features & Highlights
✅ 4400 lbs (2-Ton) Load Capacity – Perfect for medium-duty warehouse and industrial applications.
✅ 118 inch (9.8 ft, 3m) Max Lifting Height – Ideal for standard racking and storage needs.
✅ Compact and Space-Saving Design - 90.5" chassis length without forks, 47“ width, and 100“ turning radius for easy navigation in tight aisles.
✅ Efficient AC drive and lift motors – 3 kW lifting motor and 4 kW drive motor for efficient, consistent performance.
✅ Hydraulic Power Steering – Ensures smooth, effortless maneuverability.
✅ Long Battery Runtime – 60V/200Ah battery provides up to 4 hours of continuous operation per charge.
Applications
- Warehousing and storage
- Manufacturing and industrial plants
- Logistics and distribution hubs
- Retail stockrooms
Specifications
Performance
- Rated Load Capacity: 4,400 lbs
- Max Lift Height: 118 in
- Load Center Distance: 25.98 in
- Max Gradability (Laden): 15%
- Max Lift Speed:
- Unladen: 11 in/s
- Laden: 7 in/s
- Max Travel Speed (unladen): 9.32 mph
- Mast Tilt Angle (Fwd/Back): 5° / 10°
- Steering Type: Hydraulic Power Steering
Dimensions
- Overall Length:
- Without forks: 90.55 in
- With forks: 138.58 in
- Overall Width:
- Wheel width: 47.24 in
- Frame width: 49.21 in
- Overall Height:
- Mast lowered: 84.65 in
- Overhead guard: 152.76 in
- Vehicle Weight: 7,054.78 lbs
- Ground Clearance: 4.13 in (Under mast)/ 5.91 in ( Mid-chassis)
- Adjustable Distance between Forks: 0-30.9 in
- Wheelbase: 67.32 in
- Front Overhang: 18.9 in
- Front Tread: 37.8 in
- Rear Tread: 37.8 in
- Minimum Turning Radius: 100.39 in
Power & Electrical
- Lift Motor Power: 4 HP
- Drive Motor Power: 5.36 HP
- Battery Capacity: 60V/200Ah
- Charger Input Voltage: 110 V
- Continuous Operating Time per Charge: ~5 h
Standard Warranty Coverage
- Full Truck Coverage: 24 months or 4,000 operating hours (whichever occurs first).
- Powertrain & Major Components (Drive Motor, Controller, Transmission, Mast Structure): 36 months or 6,000 operating hours (whichever occurs first).
- Battery: 60 months.
- Charger: 36 months.
This warranty does not cover:
- Normal wear and tear (tires, brake pads, fuses, light bulbs, filters, hydraulic hoses, seals, brushes).
- Damage caused by misuse, abuse, accidents, overloading, improper operation, or lack of routine maintenance.
- Modifications or repairs performed without Seller’s authorization.
- Damage due to exposure to corrosive environments, improper charging, or use of non-approved parts or accessories.
About SUNMAX
We are the manufacturer
We are the manufacturer who owns the production facilities and controls the entire supply chain, from sourcing raw materials to manufacturing and distributing the final products.
We have warehouses in Southern California, New Jersey, and Canada. All orders are FREE shipping, delivers in 5-8 business days.
