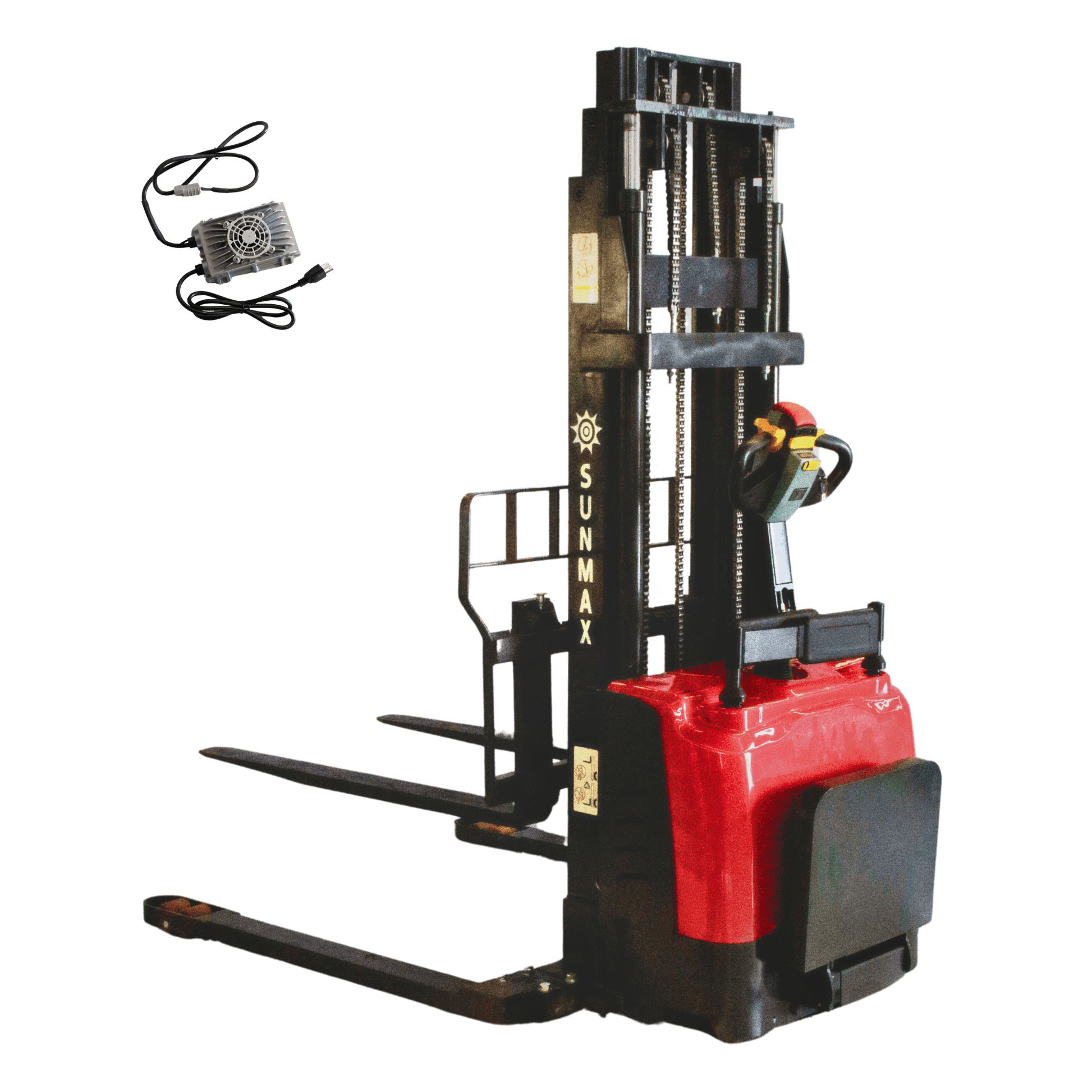

PS3300FE-4M Full Electric Pallet Stacker – 3300 lbs Capacity, 157" Lift Height, Adjustable Legs
PS3300FE-4M Full Electric Pallet Stacker – 3300 lbs Capacity, 157" Lift Height, Adjustable Legs
Couldn't load pickup availability
- Fast and Free freight shipping to 48 contagious states
- Deliver in 3-8 business days
- 2 year warranty
Optimize your warehouse operations with the SUNMAX Full Electric Pallet Stacker, built for professional material handling in industrial and commercial environments. With a 3300 lbs load capacity and an extended lift height of 157 inches (4000 mm), this full-electric stacker is ideal for high-bay pallet stacking and heavy-load transfers.
Designed with adjustable support legs, it adapts to a wide range of pallet sizes and warehouse configurations, providing added versatility and stability during operation. The full-electric drive and lift system enables efficient, low-fatigue performance—perfect for long shifts in logistics, distribution, and manufacturing centers.
Key features include electromagnetic braking, a compact frame for tight aisle maneuverability, and durable polyurethane wheels for smooth floor contact. Powered by a 24V/73Ah rechargeable battery, the SUNMAX pallet stacker delivers reliable operation with travel speeds up to 3.5 mph and lift speeds of 0.46 ft/s.
✅ Full-Electric Drive & Lift
✅ 3300 lbs Capacity, 157" Lift Height
✅ Adjustable Leg Width for Flexible Pallet Handling
✅ Compact Design with 72.8" Turning Radius

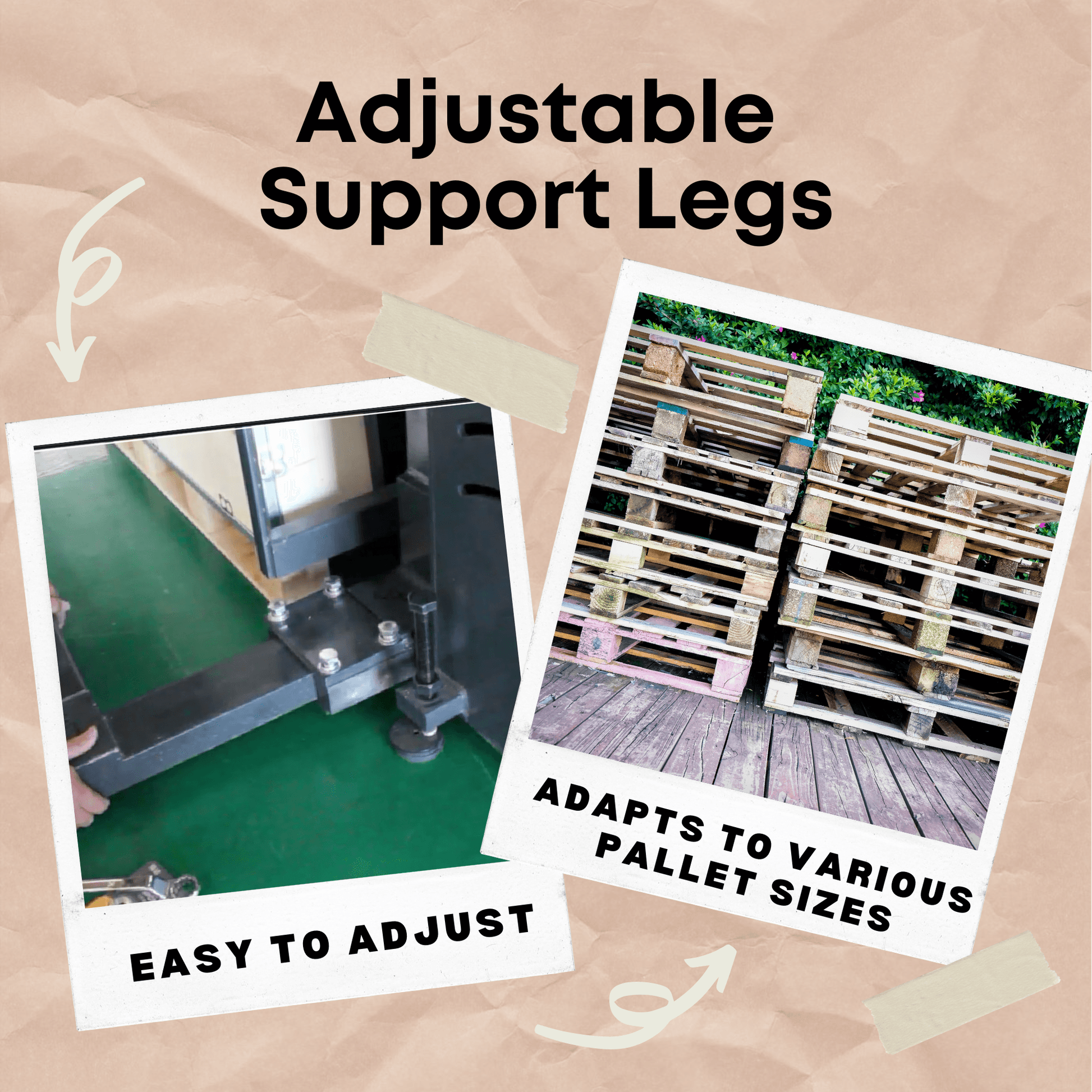

Please note that the wider the distance between the support legs, the lower the lifting capacity. When the support legs are adjusted to the maximum width of 55 inches, the combined weight of the load and pallet that can be lifted is 1,763 lbs (800 kg).
PS3300FE-4M Full-Electric Pallet Stacker – Specifications
General
- Model: PS3300FE-4M
- Drive Type: Full-Electric (Battery)
- Operating Style: Walk-behind

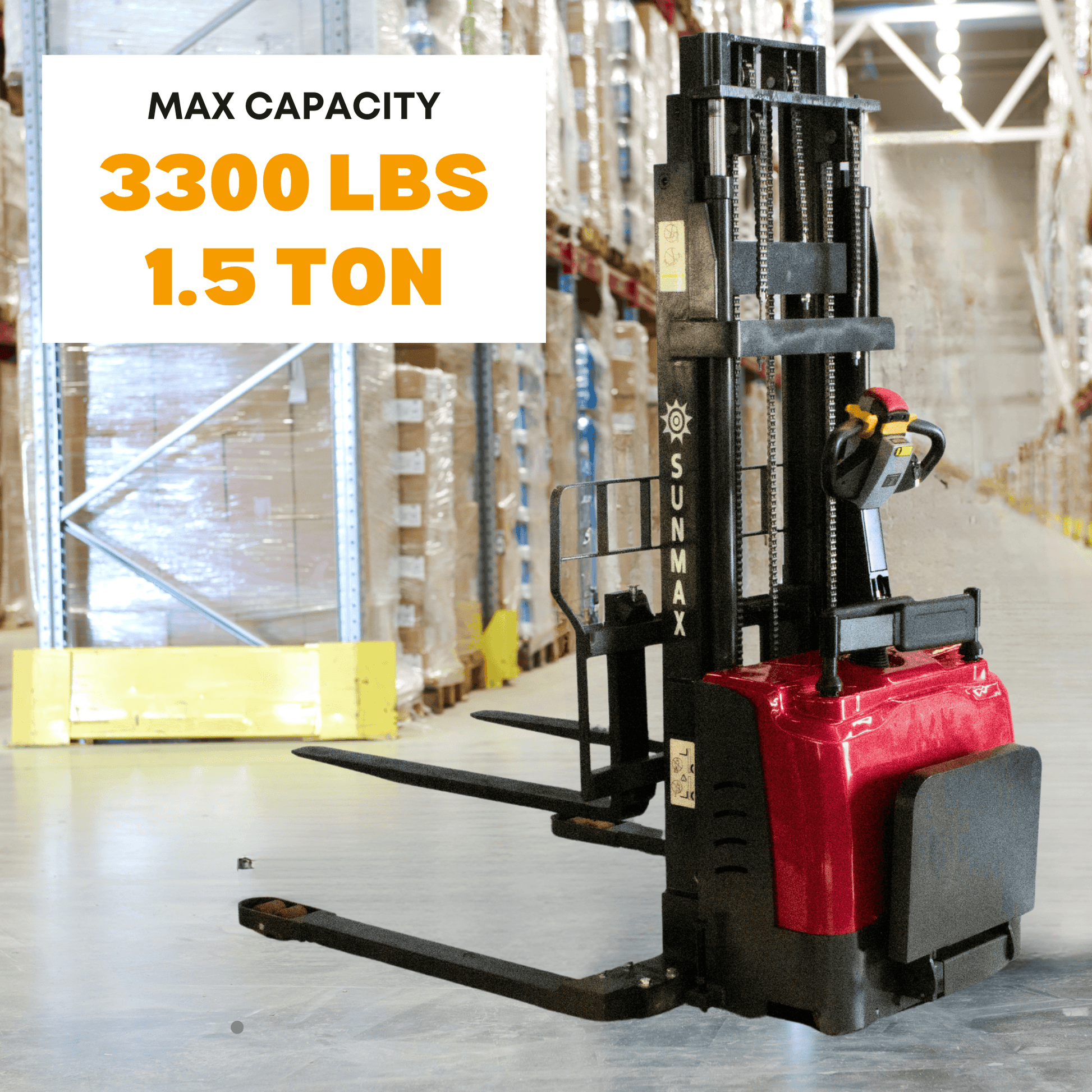

- Rated Load Capacity: 3,300 lbs (1,500 kg)
- Load Center Distance: 24 in (610 mm)
- Service Weight: 1,874 lbs (850 kg) including battery
Lifting & Dimensions

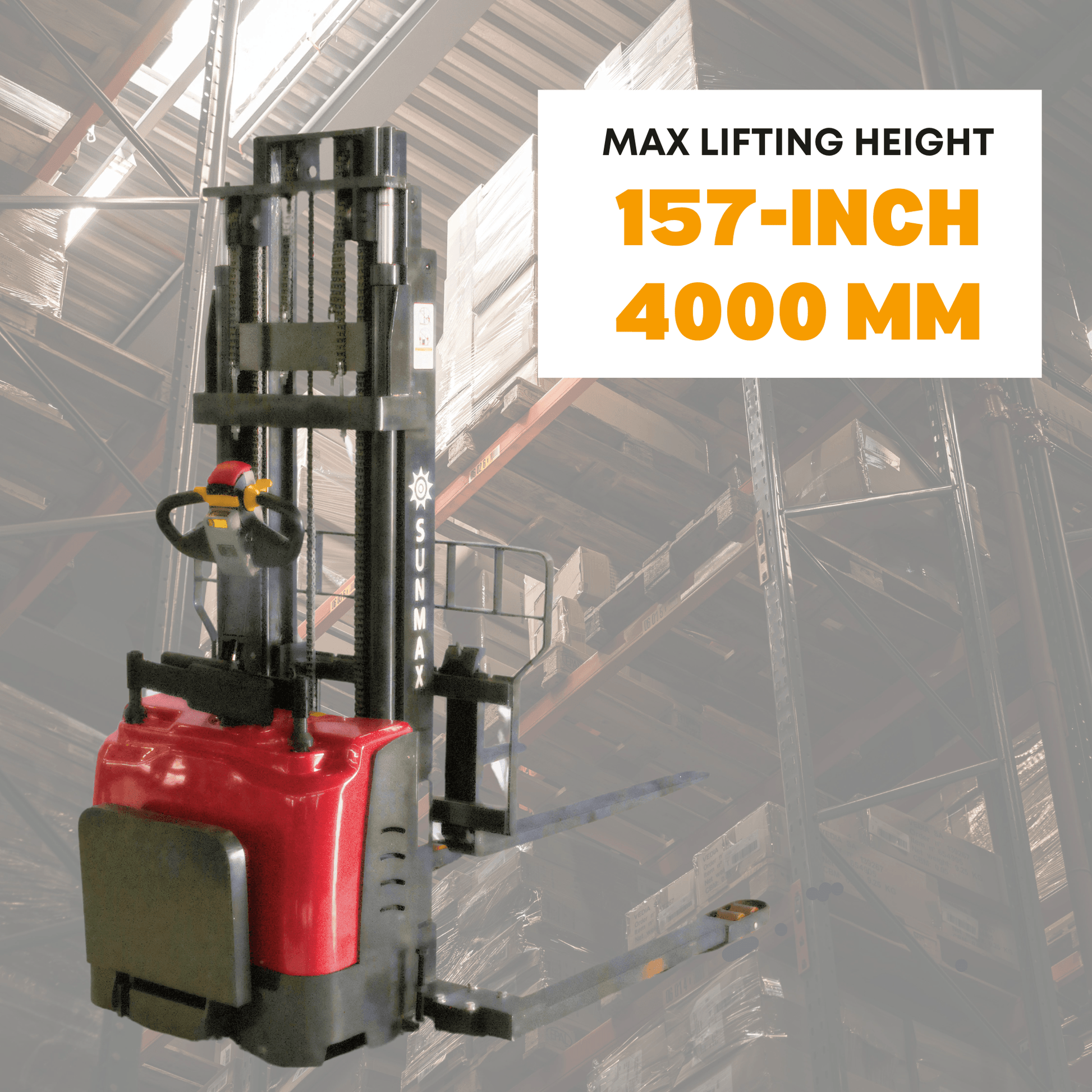

- Max Lifting Height: 157 in (4,000 mm)
- Mast Height (Lowered): 76.8 in (1,950 mm)
- Max Mast Height During Operation: 179.1 in (4,550 mm)

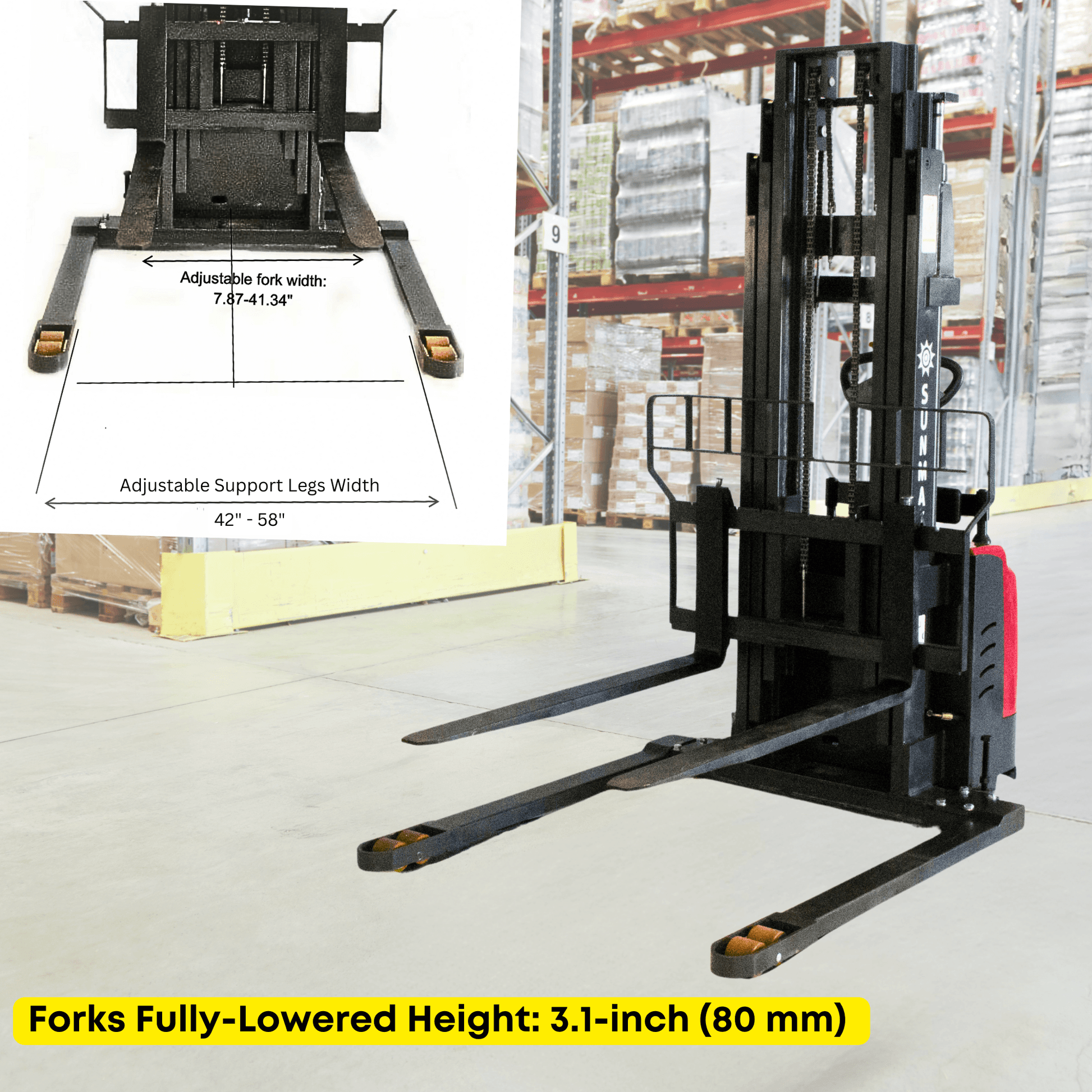

- Forks Fully-Lowered Height: 3.1 in (80 mm)
- Fork Size (T × W × L): 1.4 × 3.9 × 48 in (35 × 100 × 1,220 mm)
- Fork Outside Width: 39.4 in (1,000 mm)
- Overall Length: 75.6 in (1,920 mm)
- Overall Width: 59.8 in (1,520 mm)
- Ground Clearance (Center Wheelbase): 1.18 in (30 mm)
- Aisle Width (pallet 40" × 48" crossways): 110.2 in (2,800 mm)
- Aisle Width (pallet 32" × 48" lengthways): 94.5 in (2,400 mm)

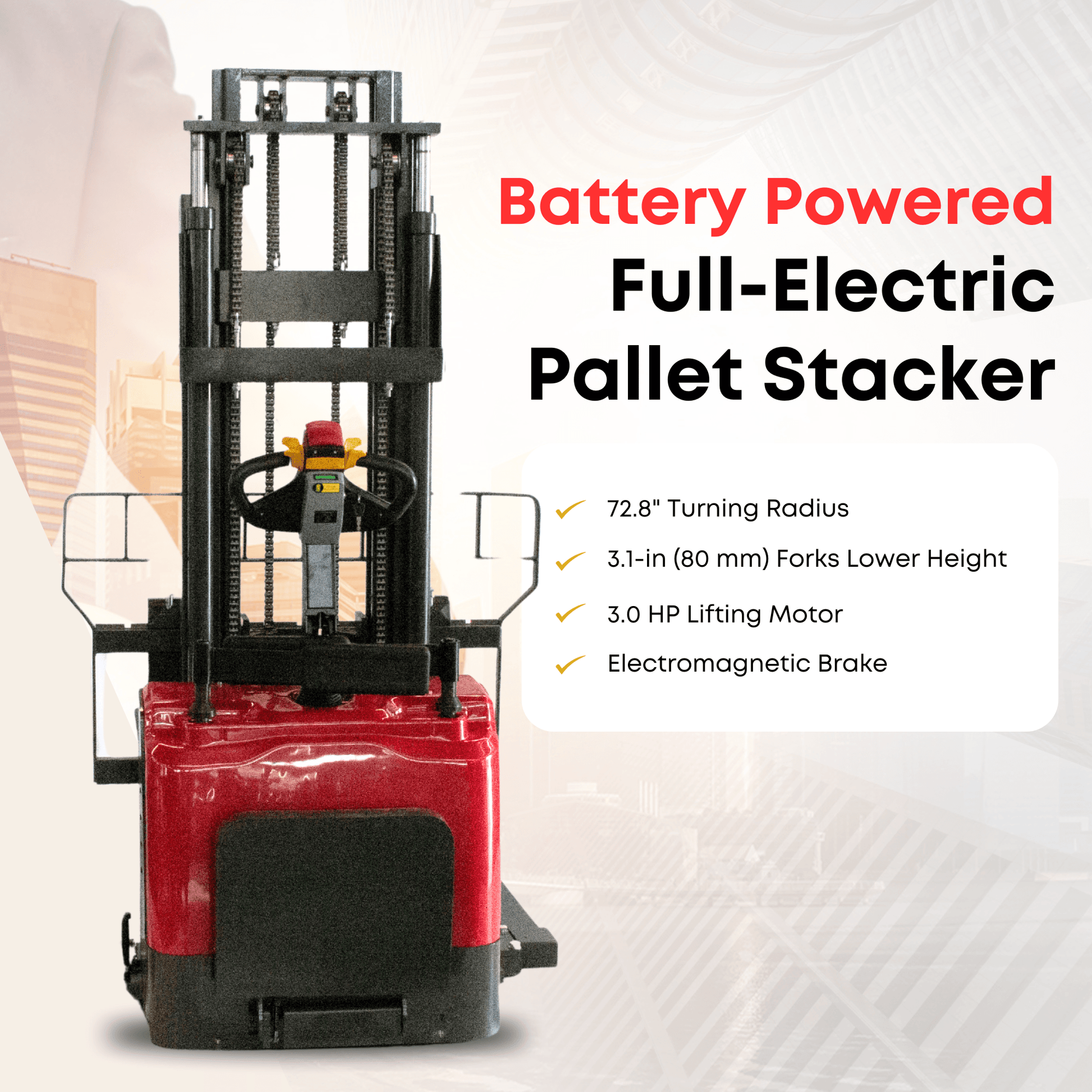

- Turning Radius: 72.8 in (1,850 mm)
Performance
- Travel Speed (Loaded / Unloaded): 2.5 / 3.5 mph (4 / 5.6 km/h)
- Lift Speed (Loaded / Unloaded): 0.46 ft/s (140 mm/s)
- Lowering Speed (Loaded / Unloaded): 0.33 ft/s (101 mm/s)
- Max Gradeability (Loaded / Unloaded): 3% / 7%
- Brake Type: Electromagnetic
Power & Electrical
- Drive Motor Power: 1.0 HP (0.75 kW)
- Lift Motor Power: 3.0 HP (2.2 kW)
- Battery Voltage / Capacity: 24V / 73Ah
- Battery Weight: 57.3 lbs × 2 (26 kg × 2)
- Battery Size (L × W × H): 10.2 × 6.7 × 8.3 in (260 × 170 × 210 mm)
Wheels & Chassis
- Wheel Material: Polyurethane
- Drive Wheel Size: Ø8.3 × 2.8 in (Ø210 × 70 mm)
- Rear Wheel Size: Ø3.1 × 2.8 in (Ø80 × 70 mm)
- Additional Wheel Size: Ø3.9 × 2.0 in (Ø100 × 50 mm)
- Wheel Arrangement: 1× (drive) + 2 / 4
- Front Wheel Track: 34.9 in (886 mm)
- Rear Wheel Track: 40.4 in (1,025 mm)
Other
- Noise Level: ≤70 dB(A)
